SLogic Combo 8 Multi-function Development Tool

25-00016962
FIT0956
ΚατασκευαστήςDFRobot Part NumberFIT0956
Διαθέσιμο
Αποστολή σε 24 ώρες
€1990
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

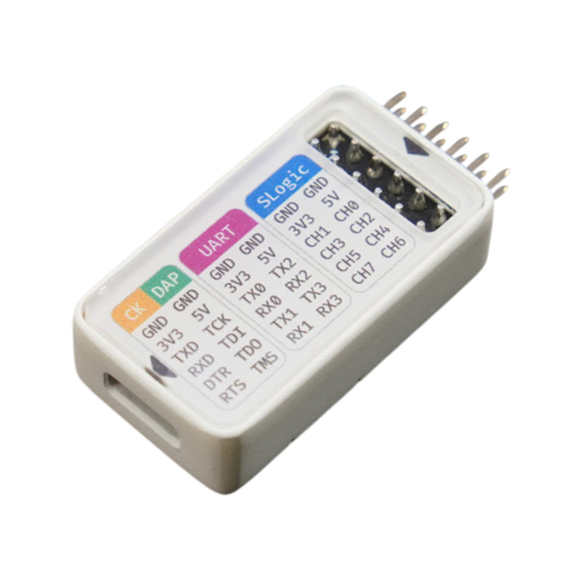

The SLogic Combo 8 is a versatile development tool that integrates the functionalities of a logic analyzer, CKLink debugger, DAP-Link debugger, and UART module (USB2UART). It allows for arbitrary switching between these functions via buttons. This 4-in-1 tool offers a maximum sampling rate of 80 MHz, supports up to 8 channels, and is compatible with multiple platforms. Despite its compact form factor, it provides a wide range of over 130 analysis protocols.

As a logic analyzer, it offers a maximum sampling frequency of 80 MHz, enabling the analysis of a broad range of protocols in conjunction with a host computer. When used as a UART module, it supports up to 4 serial ports with a maximum baud rate of 20 Mbps, making it suitable for various applications that rely on serial communication. As a CKLink or DAPLink, it aids in debugging RISC-V and ARM-based chips, with an additional serial port available for log observation.

Applications
  • Protocol Analysis
  • Serial Communication
  • Chip Debugging
  • Education and Training
  • Hardware Development and Testing
  • Research and Development
Powerful Features
Function Annotation


Powerful 4-in-1 Debugger


Support for analysing 130+ protocols


Technical data

SLogic Function Parameters
(In Windows environment, the SLogic Combo 8 has maximum transmission bandwidth of 160 Mb/s. The typical configuration includes 80M@2CH and 40M@4CH.)

  • Maximum Channel Number: 8CH
  • Maximum Sampling Rate: 80M
  • Transmission Bandwidth: 320Mb/s
  • Sampling Mode: Stream
  • Typical Configuration: 80M@4CH 40M@8CH
  • Signal Input Range: 0~3.6V
  • High and Low Level Thresholds: VIN>V VIL<0.8V

CKLink Function Parameters

  • JTAG Clock Rate: 16M
  • Typical Dump Speed: 1200KB/s
  • Debug Serial Port: Up to 20Mbps

DAPLink Function Parameters

  • Debug Serial Port: Up to 20Mbps
  • Typical Burning Speed: 110KB/s

UART Function Parameters

  • Maximum Baud Rate: 2×20Mbps+2×1Mbps
  • Total Bandwidth: 42Mbps
Package contents
  1. Slogic Analyzer/ DAPLink /CKLink Debugger /UART Tool ×1
  2. Chip clips ×10
  3. USB Type-C ×1
  4. Female-to-female DuPont wire ×1
