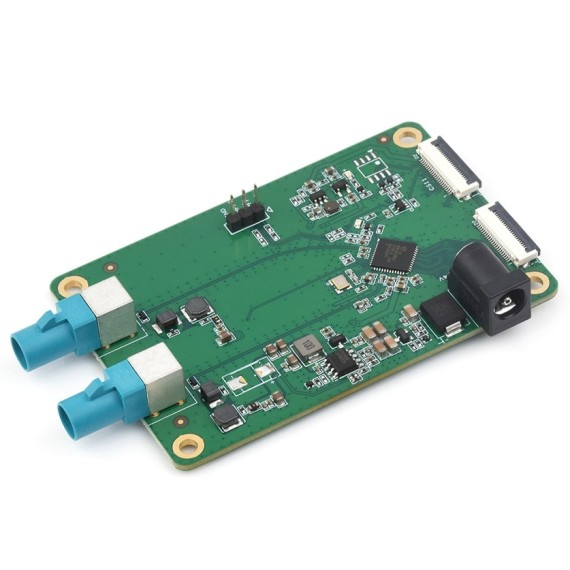

Waveshare GMSL Camera Adapter Board for Jetson Orin

Κωδικός:

31-00027519

Part Number: MAX9296-GMSL-Camera-Board

ΚατασκευαστήςWaveshare Part NumberMAX9296-GMSL-Camera-Board

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€164⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€148.41

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

The MAX9296-GMSL-Camera-Board is a GMSL camera adapter that allows up to two cameras to be connected to the Jetson Orin Nano/NX host board. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.

GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring. It is mainly used in automotive electronics and industrial applications, and is capable of transmitting high-definition video, audio, and data signals over one cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance signal transmission.

Features at a glance

Supports simultaneous access to two GMSL cameras (IMX390, IMX490, ISX031, OX03C, AR0820)
Adopts MAX9296A serializer solution
Supports Jetson Orin Nano / Jetson Orin NX host board
Supports triggering via internal GPIO or external input signals
Supports PoC 12V power supply

Hardware layout

Technical data

Deserializer	MAXIM(ADI) MAX9296A
Host Support	Jetson Orin NX/Nano development kit
Serializer Model Support	MAX9295, MAX96717, MAX96705, etc.
GMSL Input	2-ch GMSL2 (compatible with GMSL1) cameras
Trigger Input	Supports triggering via internal GPIO or external input signals
Input Interface	2×MATE-AX FAKRA connectors
Output Interface	2×22-Pin CSI interfaces
GMSL Camera Support	IMX390, IMX490, ISX031, OX03C, AR0820, etc.
Power Supply	12V~20V DC input
Operating Temperature	-20°C~65°C
