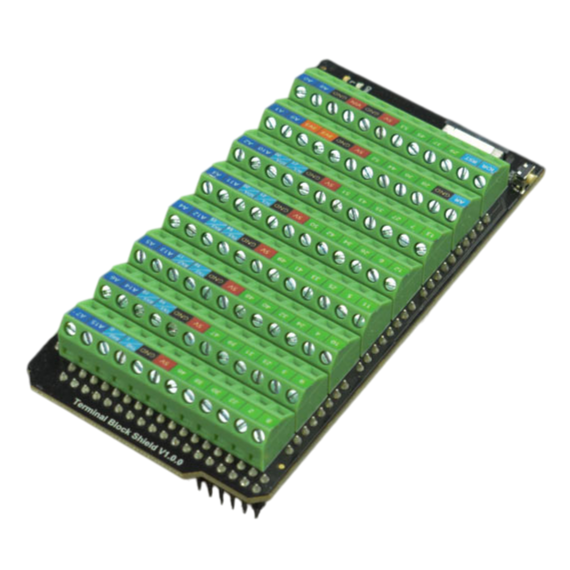

Terminal Block Shield for Arduino Mega

Κωδικός:

25-00016975

Part Number: DFR0921

ΚατασκευαστήςDFRobot Part NumberDFR0921

Διαθέσιμο

Αποστολή σε 24 ώρες

€46⁸⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Has it ever happened to you that you spent a lot of time ascertaining a problem when making projects and finally found out it was just caused by loose wiring? Then, what you may need is a terminal block shield like this!

The shield adopts terminal blocks to secure wires so as to make connections stable and reliable. And multiple 3.3V, 5V, and GND ports are provided for easy wiring. It can be powered by 7~24V voltage without an additional buck-down circuit. The onboard 18pin-FPC socket makes it convenient for connecting a screen.

Features

Stable and reliable connection
Easy wiring

Applications

Commercial Project
Art Show

Technical data

VIN Input Voltage: 7-24V DC
Max Load Power: 10W
Terminal Block Pitch: 3.5mm
Cable Size Range: 26AWG-16AWG
Wire Strip Length: 5mm
Screw: M2
Dimensions: 101.5×53.3 mm

Package contents

Terminal Block Shield for Arduino Mega ×1

Pinout

FPC PINS	Mega PINS	Description
VCC	5V	5V
BLK	D7	Backlight
GND	GND	GND
SCLK	D52	SPI clock
MOSI	D51	Host output, slave input
MISO	D50	Host input, slave output
DC	D2	Data/Command
RES	D4	Reset
CS	D3	TFT Chip Select
SDCS	D6	SD card Chip Select
FCS	D25	Font library Chip Select
TCS	D5	Touch Chip Select
SCL	SCL	I2C clock
SDA	SDA	I2C data
INT	D19	INT
BUSY-TE	D24	Ripstop pins
X1	D23	Custom pin 1
X2	D22	Custom pin 2
