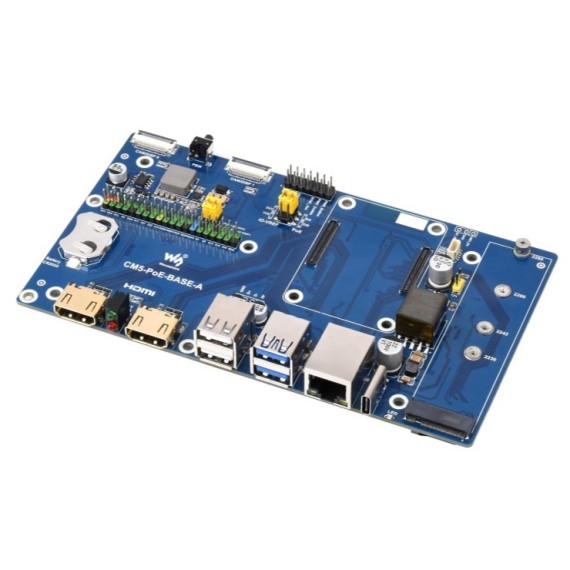

Waveshare Compute Module 5 IO Board with PoE, 2 image

Waveshare Compute Module 5 IO Board with PoE, 3 image

Waveshare Compute Module 5 IO Board with PoE

Κωδικός:

31-00029488

Part Number: CM5-PoE-BASE-A

ΚατασκευαστήςWaveshare Part NumberCM5-PoE-BASE-A ΣυμβατότηταRaspberry CM5 Τύπος HATPrototyping

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€39⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This base board can be used with the Raspberry Pi Compute Module 5, supporting PoE power supply and Type-C 5V-5A DC power supply. It comes with 2 USB 3.2 Gen1 ports and 2 USB 2.0 ports, making it convenient for users.

Features at a glance

PoE base board for all Compute Module 5 variants
Standard CM5 socket and Raspberry Pi 40PIN GPIO header
Providing both network connection and power supply for your Raspberry Pi in one cable through PoE
Supports M.2 NVMe 2280/2260/2242/2230 Solid State Drive (not included) for faster reading/writing
Onboard connectors include MIPI/M.2/HDMI/USB/ETH/TF Card Slot

Technical data

Networking	Gigabit Ethernet RJ45 connector, integrates 802.3af/at-compliant PoE circuit (5V/5A)
Connector	Raspberry Pi 40PIN GPIO header
USB	USB 3.2 Gen1 × 2 & USB 2.0 × 2
MIPI	4-lane MIPI interface × 2 (22pin 0.5mm FPC connector)
Video	HDMI port × 2, supports 4K output
RTC	CR / ML2032 battery holder
Storage	TF card slot for Compute Module 5 Lite (without eMMC) variants
Fan connector	5V, JST-SH PWM 4PIN connector
NVMe	PCIe Gen2/3 × 1
Power input	5V 5A

What's on board

1. CM5 socket, suitable for all variants of Compute Module 5

2. USB Type-C power supply/programming, 5V/5A power supply, also allows burning system image into Compute Module 5 variants
3. M.2 Solid State Drive indicator, keeps blinking while reading/writing
4. M.2 M key, compatible with 2280/2260/2242/2230 NVMe drives or AI accelerator module
5. Dual MIPI interfaces for connecting DSI LCDs or CSI cameras
6. PSW button, power button
7. 40PIN GPIO header for connecting various HATs
8. RTC battery holder, supports CR/ML2032 button cell
9. HDMI ports, 2x HDMI ports, supports dual 4K output
10. Status indicators, ACT: Raspberry Pi operating status indicator, PWR: Raspberry Pi power indicator

11. USB2.0 ports, 2x USB2.0 ports, for connecting sorts of USB devices
12. USB 3.2 Gen1 ports, 2x USB 3.2 Gen1 high-speed ports, supports 5Gbps synchronous operation
13. Gigabit Ethernet connector, Gigabit Ethernet RJ45 with PoE support
14. FAN connector for connecting cooling fan
15. Misc configurations for extending other functions
16. IO-VREF/PoE selection, CM5 IO logic level: 3.3V or 1.8V PoE: enable (EN) or disable (DIS)
17. CAM1 and DISP1 I2C bus, fit the jumpers when using CAM1 or DISP1
18. TF card slot (bottom side), insert a TF card with pre-burnt system, to start up Compute Module 5 Lite
