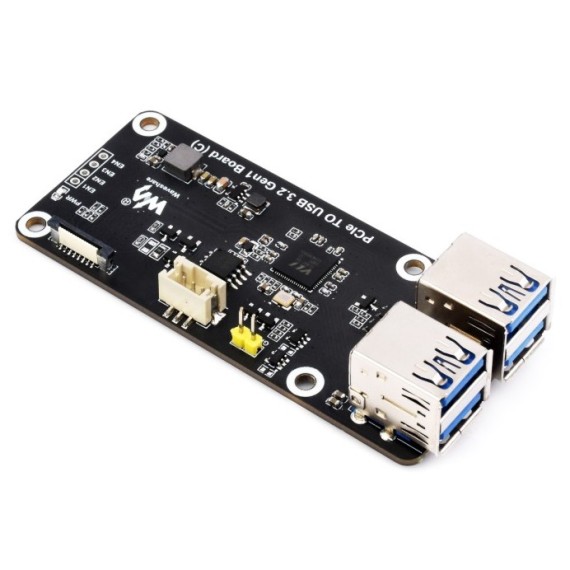

Waveshare PCIe to 4-ch USB 3.2 Gen1 Board (C)

Κωδικός:

31-00027834

Part Number: PCIe TO USB 3.2 Gen1 Board (C)

ΚατασκευαστήςWaveshare Part NumberPCIe TO USB 3.2 Gen1 Board (C)

Διαθέσιμο

Αποστολή σε 24 ώρες

€19⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This PCIe to USB 3.2 Gen1 Board is designed for Raspberry Pi 5. Onboard 4x USB interfaces, it is driver-free, plug-and-play, high-speed and supports side-mounting solution.

Features

Support PCI-E×1 Gen2 mode
Only support Pi 5
Power supply via 2PIN header or 3PIN connector
Adopts side-mounting solution to save space above the Raspberry Pi 5
Comes with transparent acrylic mounting bottom plate
Connecting to Pi 5 via 16PIN Cable

Equiped with original high-performance VL805 controller.
5Gbps ultra-fast transmission
4-ch power supply independent control
Allows controlling the power ON/OFF of each USB port via commands

Package contents

PCIe to USB 3.2 Gen1 Board (C) ×1
Transparent acrylic mounting plate ×1
16PIN PCIe cable ×1
PH2.0 3PIN cable ×1
Standoff pack ×1

Technical data

Interface standard	High-speed USB 3.2 Gen1
Communication rate	5Gbps for single USB port, total 5Gbps for 4-ch USB ports
USB output	5V@Imax: 2A; USB-A connector
Power supply	5V DC power supply header/connector
Operating temperature	0℃ ~ 75℃
