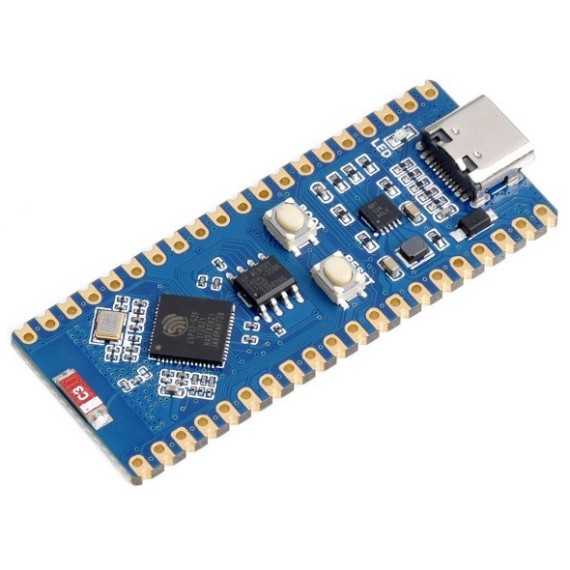

Waveshare ESP32-S2 - WiFi Development Board

31-00020624
SoC SeriesESP32-S2 ΚατασκευαστήςWaveshare
Διαθέσιμο
Αποστολή σε 24 ώρες
€1850
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€16.65
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

ESP32-S2 WiFi Development Board

240 MHz Xtensa single-core 32-bit LX7 microcontroller
For C/C++ SDK, MicroPython, CircuitPython Development

This is a WiFi development board with compact size, plenty peripheral interfaces, integrated low-power Wi-Fi System-on-Chip (SoC) and mass memory, supporting Raspberry Pi Pico expansion board ecosystem. Equipped with hardware crypto accelerator, RNG, HMAC and Digital Signature module, it can meet the security requirements of the Internet of Things. Multiple low-power operating states to satisfy power requirements in IoT, mobile devices, wearable electronics, smart home and other application scenarios, etc.

ESP32-S2 Standard Ver. key features include:

  • Support Raspberry Pi Pico expansion board ecosystem to satisfy creative IoT application development
  • Xtensa single-core 32-bit LX7 microprocessor, ESP32-S2FH4, support clock frequency up to 240 MHz
  • Integrated 320KB SRAM, 128KB ROM, 8MB PSRAM, 4MB Flash memory
  • Support IEEE802.11 b/g/n, on-board 2.4 GHz WiFi ceramic antenna, up to 150 Mbps data transfer rate
  • USB-C connector, no more plug orientation problem
  • On-chip integrated full-speed USB OTG interface, LCD interface (8-bit serial RGB/8080/6800), TWAI controller (ISO11898-1 compatible), capacitive sensor GPIO, temperature sensor and RMT (TX/RX)
  • On-board 1.8A current high efficiency boost/buck DC-DC TPS63000 power supply IC
  • Support a variety of low-power operating states for adjusting the optimal balance between communication distance, data rate and power consumption, to meet the power requirements of various application scenarios
  • Castellated module allows soldering direct to user-designed carrier boards

What's On Board

  1. ESP32-S2FH4
    Xtensa single-core 32-bit LX7 microprocessor
  2. APS6404L-3SQR-SN
    8MB PSRAM
  3. BOOT button
    BOOT button, press BOOT and then RESET button to enter download mode
  4. RESET button
  5. TPS63000DRCR
    high efficiency DC-DC buck-boost chip
  1. LED
    user LED (not power indicator)
  2. USB Type-C connector
    for programming, serial printing, etc.
  3. Pinout
    compatible with Raspberry Pi Pico
  4. USB test points
    connecting to USB interface
  5. BOOT test point
    connecting to BOOT button
  6. WiFi ceramic antenna

26 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

C/C++, MicroPython, CircuitPython Support
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

240 MHz High Frequency Processor
Xtensa Single-Core 32-Bit LX7 Microprocessor, Up To 240 MHz Frequency

Κατασκευαστής
Waveshare
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
SoC Series
ESP32-S2
