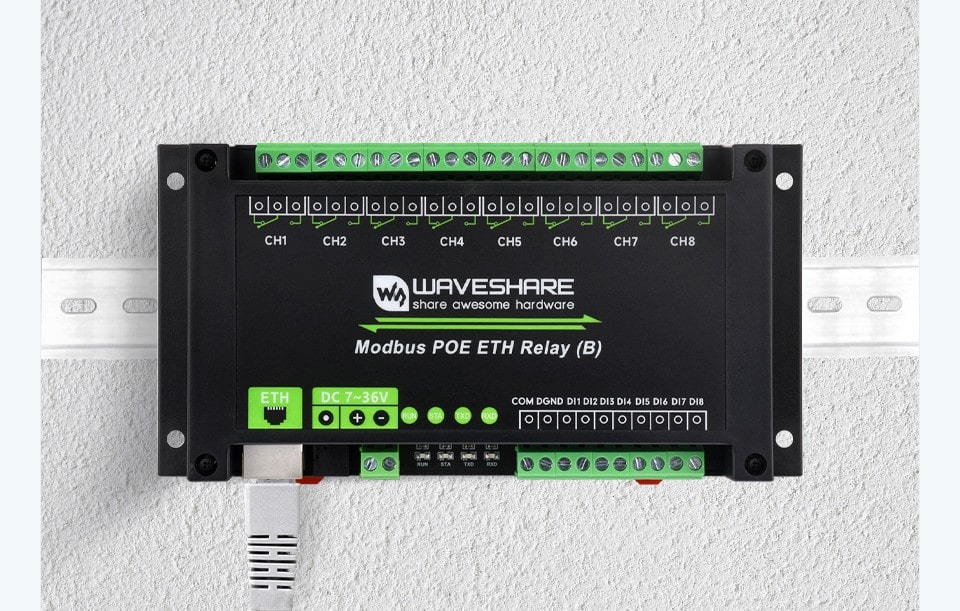

Industrial Modbus RTU/TCP 8-Ch Relay Module (B) – Ethernet & Digital Input

Κωδικός:

31-00027876

Part Number: Modbus POE ETH Relay (B)

ΚατασκευαστήςWaveshare Part NumberModbus POE ETH Relay (B)

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€59⁹⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€53.91

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά
Βίντεο

This product is an industrial 8-channel relay module controlled via an Ethernet port, featuring 8-channel digital input. It supports Modbus RTU and Modbus TCP protocols, offers PoE power supply, and comes in an ABS rail-mount case. Designed for ease of use, it ensures fast communication, stability, reliability, and safety, making it an ideal choice for industrial control equipment or applications requiring high-speed communication.

Features

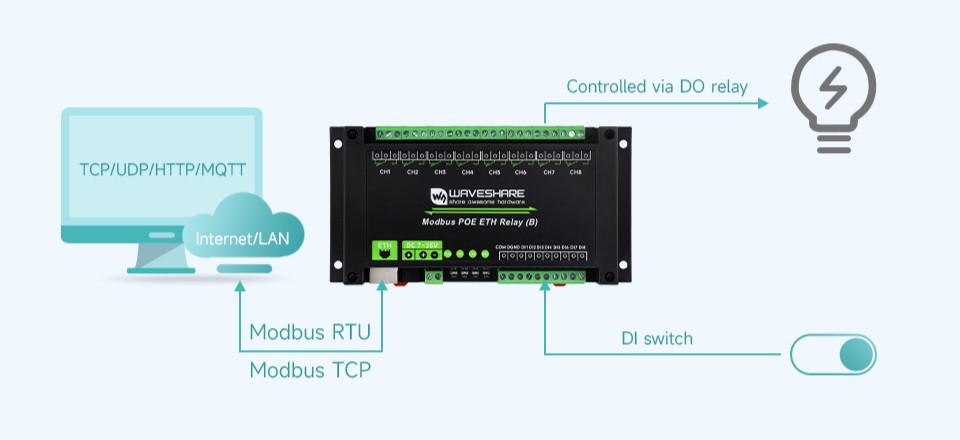

Supports reading digital inputs via Modbus RTU protocol commands and controlling relay output based on input signals.
Compatible with TCP Server, TCP Client, UDP Mode, UDP Multicast, HTTP, MQTT, Modbus RTU, and Modbus TCP protocols.
Allows software and web browser configuration, supports dynamic IP assignment via DHCP, and connects to domain name servers via the DNS protocol.

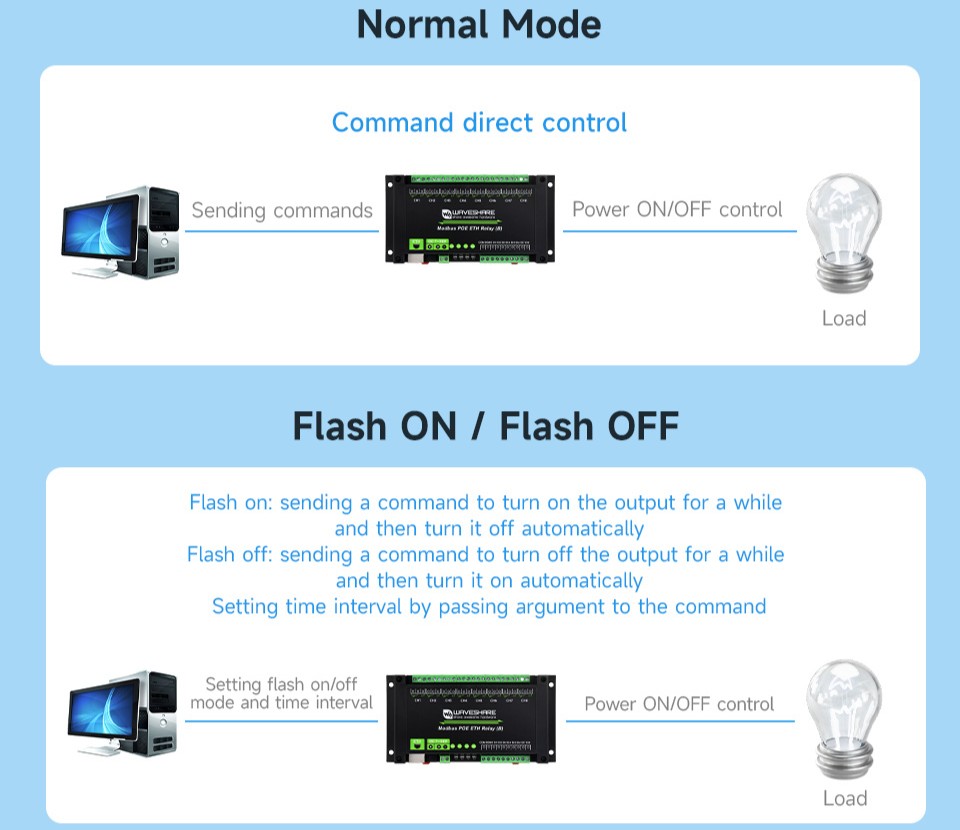

Includes a flash-on/flash-off function, enabling relays to turn on for a specified duration before automatically switching off.
Supports a wide input voltage range of DC 7V–36V and PoE power supply.
Enables relay control through the MQTT protocol and includes an Alibaba Cloud MQTT application demo.
Utilizes a dedicated relay driver chip with built-in flyback diode protection for enhanced stability and driving capability.

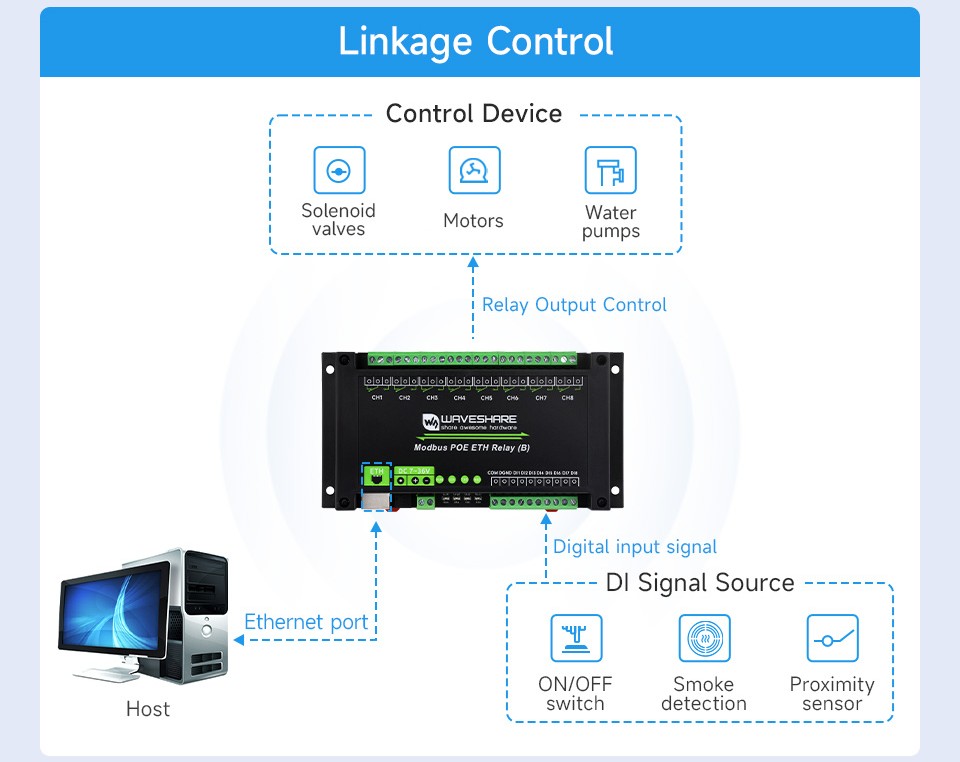

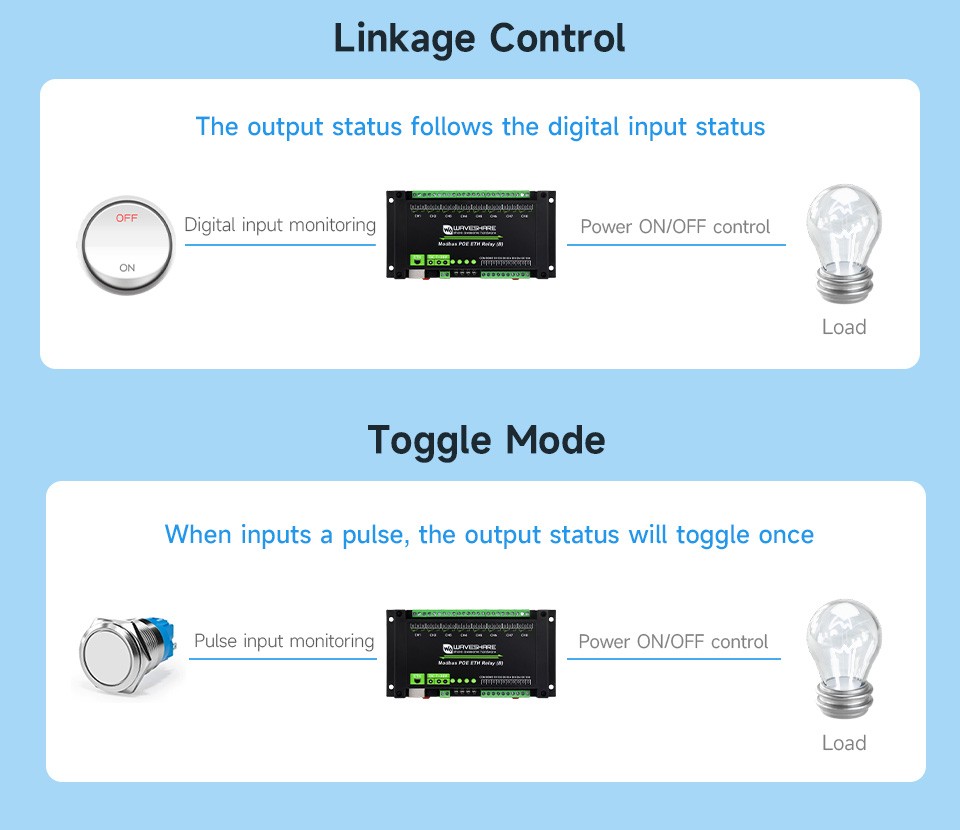

Supports both passive and active digital input with bidirectional optocoupler isolation and an integrated debouncing algorithm. The relay allows digital input linkage or toggle control.
Features a reverse-proof circuit to prevent damage from incorrect wiring.
Housed in a rail-mounted ABS plastic enclosure for easy installation and safe operation.

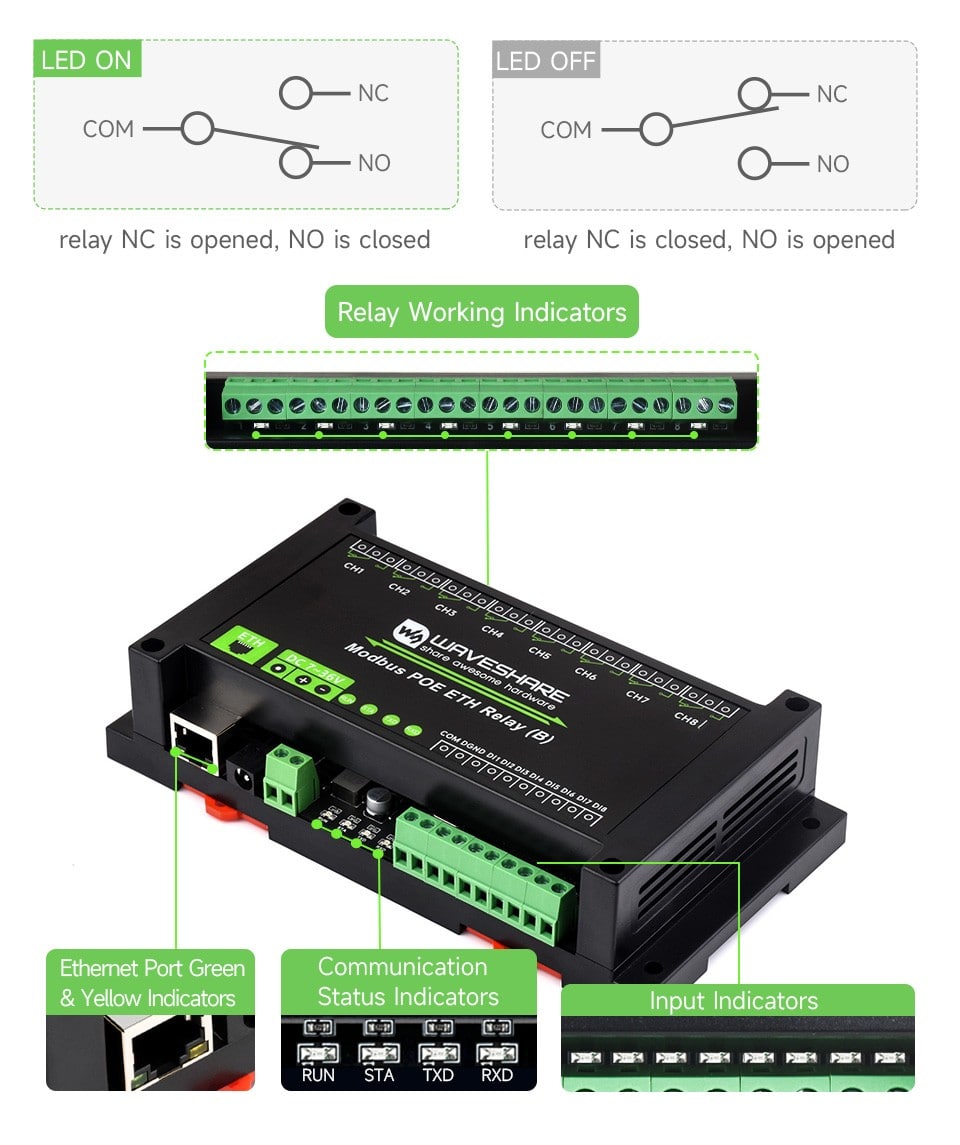

Equipped with four LEDs and network indicators to display MCU status and signal transmission.

Technical data

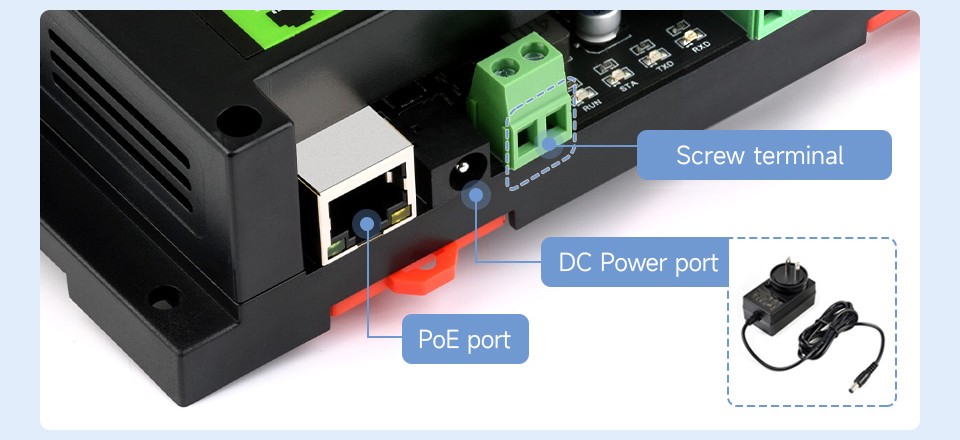

Power supply	PoE Ethernet Port, DC 5.5×2.1 Power Port or Power Supply Screw Terminal (7V–36V)
Communication interface	PoE Ethernet Port, Support IEEE 802.3af Standard
Relay channels	8 Channels
Touch contact	1NO, 1NC

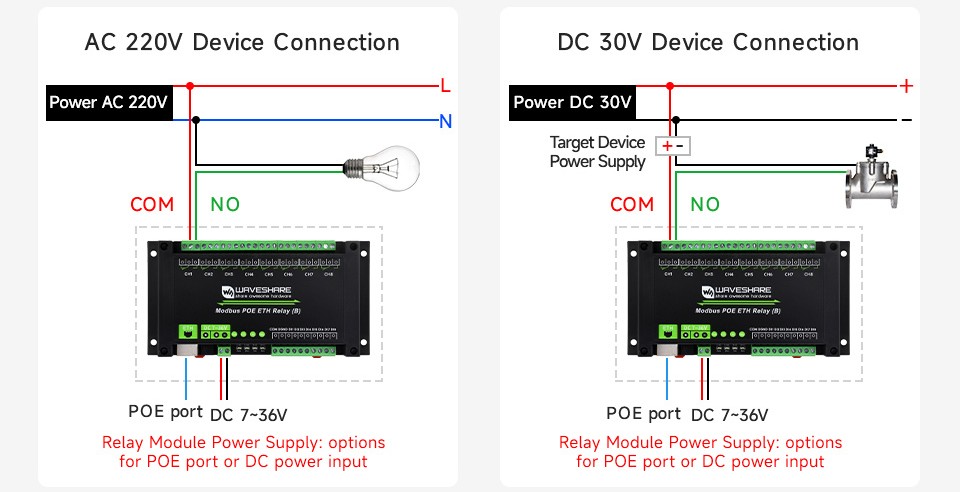

Touch contact load	≤10A 250V AC or ≤10A 30V DC

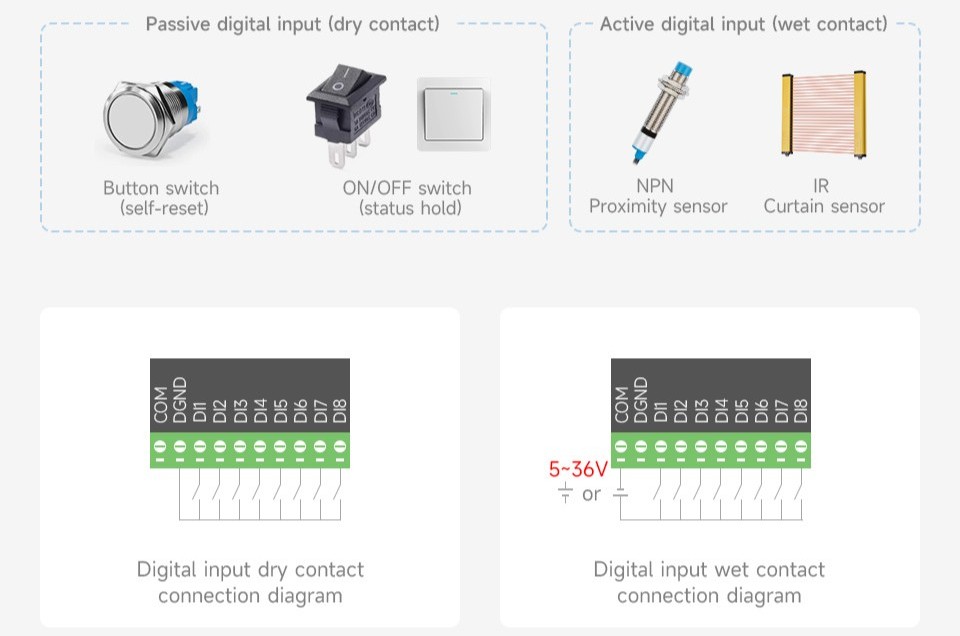

Digital input	8DI, 5V–36V, Passive Input/Active Input (NPN or PNP) Built-in Bidirectional Optocoupler
Modbus protocol	Modbus RTU Protocol or Modbus TCP Protocol

Package contents

Modbus POE ETH Relay (B) ×1

Note

This product supports PoE for power supply and the external power supply adapter is not included by default, it is recommended to purchase 12V power supply (GRobotronics SKU: 31-00030622SKU copied!) if you need it.

Waveshare Industrial Modbus RTU & TCP Relay Modules - Comparison table

Model	GRobotronics SKU	Communication parameters	Relay type	Output control	Input control	Power range	Dimensions
Industrial Modbus RTU 8-Ch Relay Module – RS485	31-00017658SKU copied!	RS485 port	10A Universal Relay	8-ch	–	5V	145×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (B) – RS485	31-00025739SKU copied!	RS485 port	10A Universal Relay	8-ch	–	7V–36V	175×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (C) – RS485	31-00030460SKU copied!	RS485 port	10A Latching Relay	8-ch	–	7V–36V	145×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (D) – RS485 & Digital Input	31-00026517SKU copied!	RS485 port	10A Universal Relay	8-ch	8-ch	7V–36V	175×90×40mm
Industrial Modbus RTU 8-Ch Relay Module (E) – RS485	31-00030459SKU copied!	RS485 port	30A High Current Relay	8-ch	–	7V–36V	200×110×60mm
Industrial Modbus RTU 4-Ch Relay Module – RS485	31-00030461SKU copied!	RS485 port	30A High Current Relay	4-ch	–	7V–36V	145×90×40mm
Industrial Modbus RTU 16-Ch Relay Module – RS485	31-00024921SKU copied!	RS485 port	10A Universal Relay	16-ch	–	5V	200×110×60mm
Industrial Modbus RTU/TCP 8-Ch Relay Module – Ethernet	31-00024964SKU copied!	Ethernet port (PoE support)	10A Universal Relay	8-ch	–	7V–36V	145×90×40mm
Industrial Modbus RTU/TCP 8-Ch Relay Module (B) – Ethernet & Digital Input	31-00027876SKU copied!	Ethernet port (PoE support)	10A Universal Relay	8-ch	8-ch	7V–36V	175×90×40mm
Industrial Modbus RTU/TCP 8-Ch Relay Module (C) – Dual Ethernet & Digital Input	31-00030544SKU copied!	Dual Ethernet ports (PoE support)	10A Universal Relay	8-ch	8-ch	7V–36V	175×90×40mm
