Waveshare RP2040 Tiny with USB Port Adapter

31-00024665
RP2040-Tiny-Kit
ΚατασκευαστήςWaveshare Part NumberRP2040-Tiny-Kit
Διαθέσιμο
Αποστολή σε 24 ώρες
€640
Waveshare
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€5.76
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

The RP2040-Tiny is a compact micro development board built around the RP2040 chip developed by Raspberry Pi. Its unique design features a separate adapter board, allowing the USB and keypad circuits to be isolated from the main board. This significantly reduces the overall thickness and footprint, making it easier to integrate into space-constrained projects. With its compact size, ultra-thin profile, and modular design, the RP2040-Tiny is an excellent choice for applications where space is limited. Whether you're a beginner or an experienced developer, it's a powerful and flexible option for your next project.


Available options


Key features
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133MHz
  • 264kB of SRAM, and 2MB of onboard Flash memory
  • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB

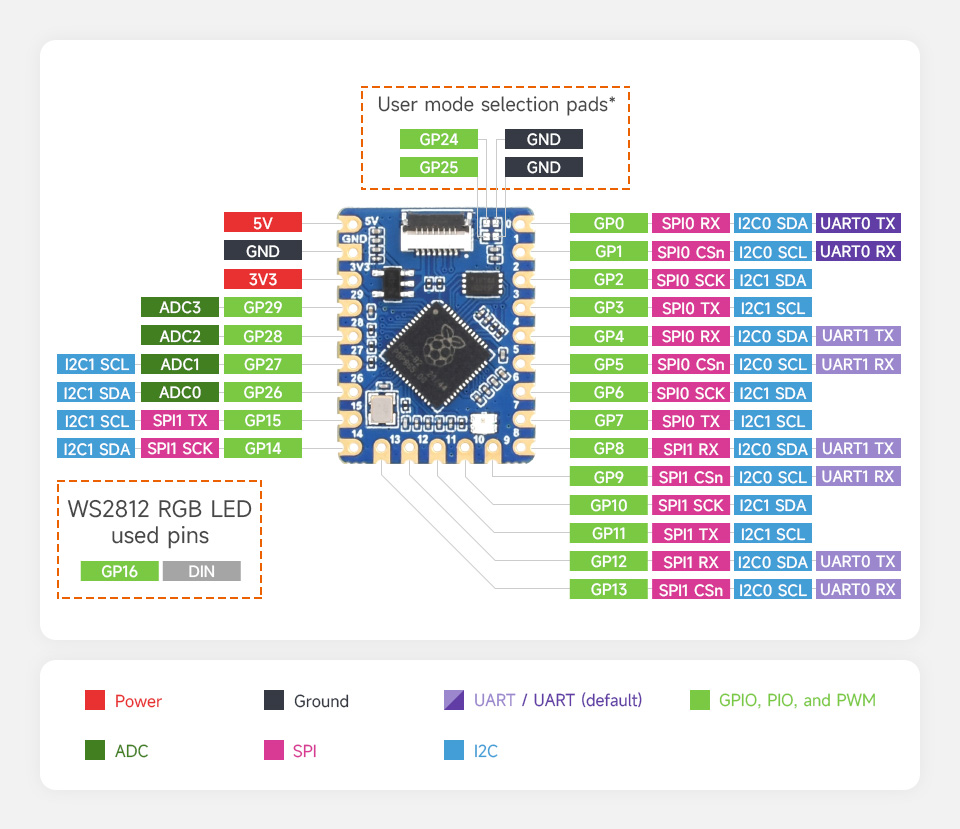

  • 20× multi-function GPIO pins
  • 2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 16× controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8× Programmable I/O (PIO) state machines for custom peripheral support

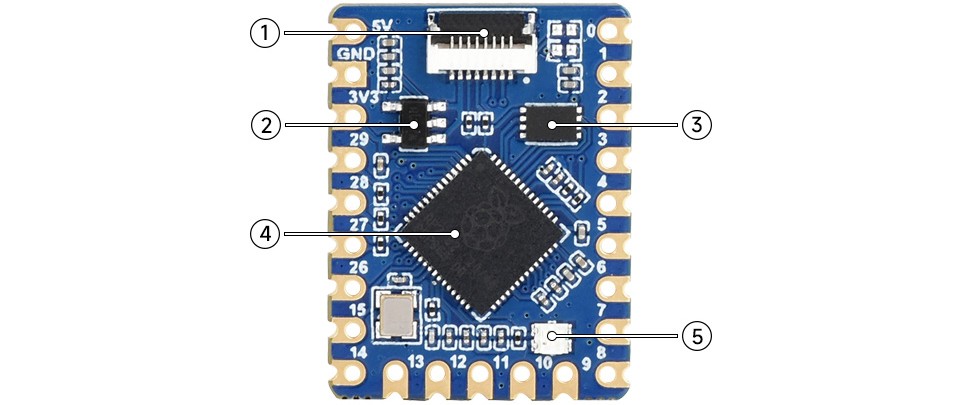

Hardware layout
  1. FPC connector
    0.5mm pitch 8PIN
  2. RT9193-33
    500mA low dropout, low noise, ultra-fast LDO
  3. W25Q16JVUXIQ
    2MB NOR-Flash
  4. RP2040
    dual-core processor, up to 133MHz operating frequency
  5. WS2812
    RGB LED Indicator

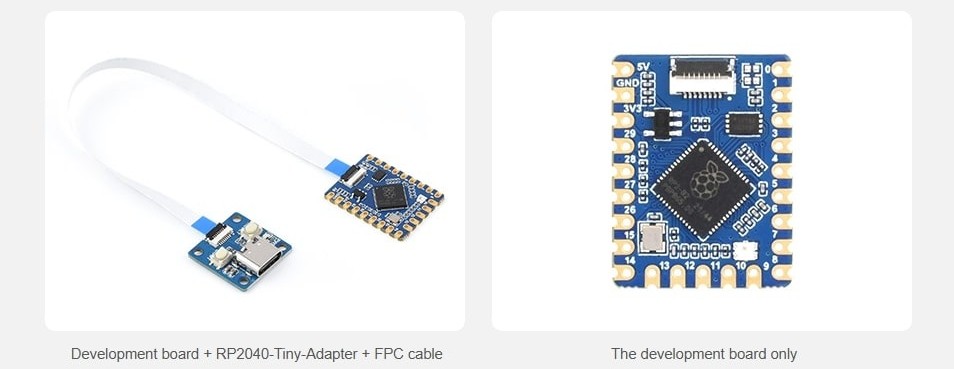

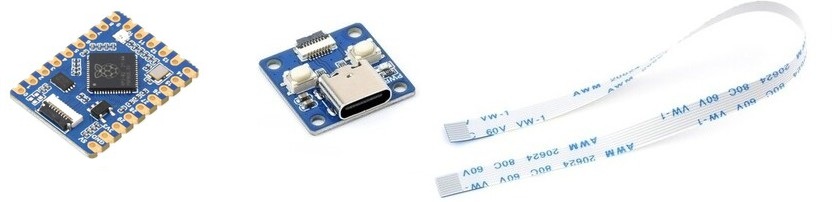

Package contents


  • GRobotronics SKU: 31-00024665
    • RP2040-Tiny ×1
    • RP2040-Tiny-Adapter ×1
    • 8PIN FPC cable ~15cm ×1


ΒΙΝΤΕΟ

A compact micro development board with unique design!

A compact micro development board with unique design!
Κατασκευαστής
Waveshare
Part Number
RP2040-Tiny-Kit
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.002kg
Board Specifications
MCU/SoC
RP2040
Processor
Dual ARM Cortex-M0+
Clock Speed
133 MHz
RAM
264 kB SRAM
ROM
16 kB
Flash Memory
2 MB
Bluetooth
No Bluetooth
Wi-Fi
No Wi-Fi
