The RP2350-One is a mini RP2350 development board featuring a built-in USB-A male connector, enabling true plug-and-play functionality without the need for cables. All unused pins are broken out despite the tiny footprint, and the PCB edge features castellated holes for easy soldering and integration into other projects.

Note: For users with looser USB ports, a sticker is included with the product to help secure the connection by attaching it to the logo area on the back.

Key features

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150MHz
520kB of SRAM, and 4MB of on-board Flash memory

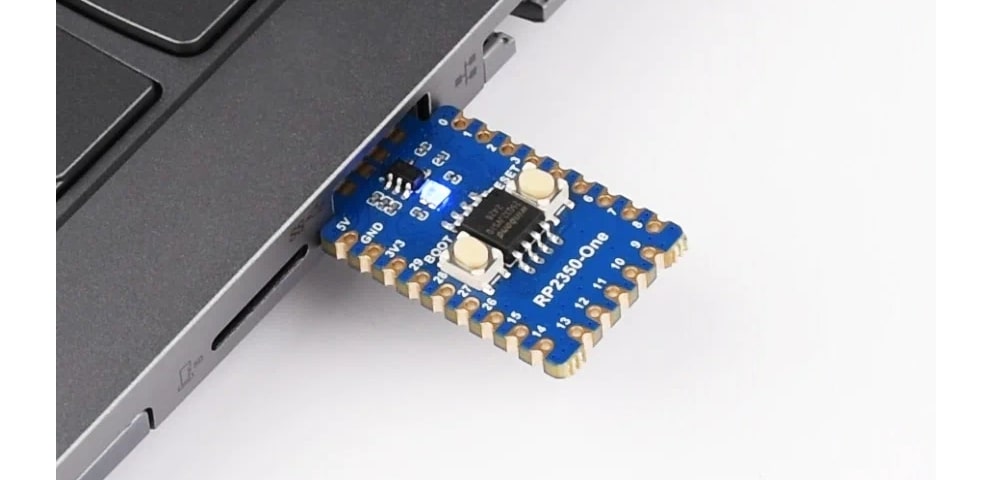

Onboard PCB Type-A male port, plug and play, easy to use
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29× multi-function GPIO pins (20× via edge pinout, others via solder points)
2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 16× controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12× Programmable I/O (PIO) state machines for custom peripheral support

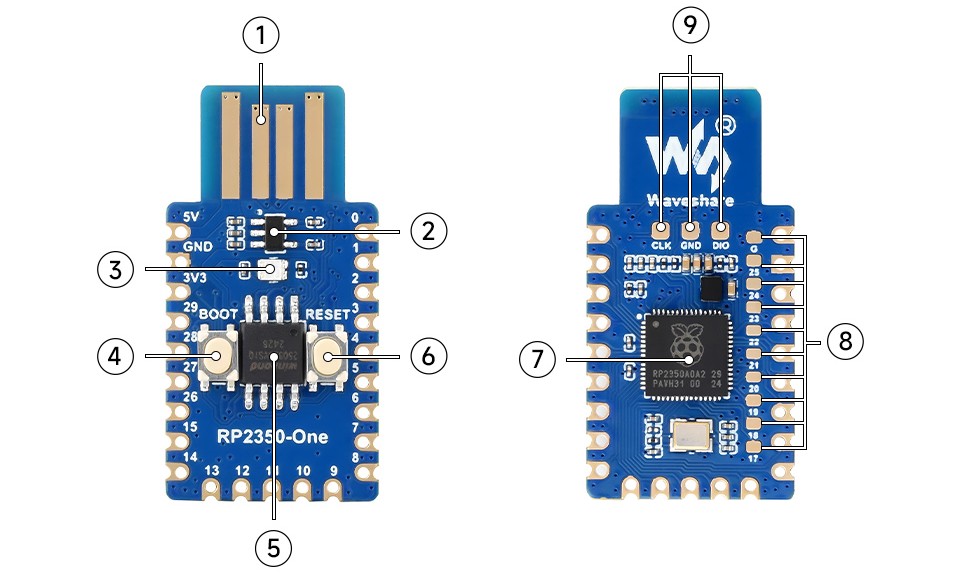

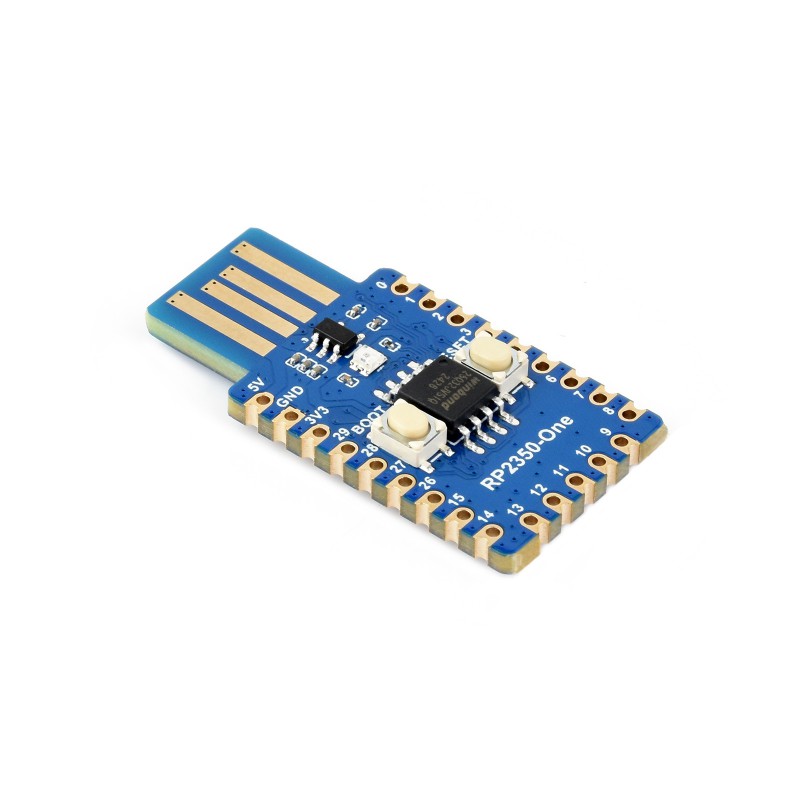

Hardware layout

PCB Type-A plug
RT9013-33GB
500mA low dropout, low noise, ultra-fast LDO
WS2812
RGB LED
BOOT button
W25Q32JVSSIQ
4MB NOR-Flash
RESET button
RP2350A
Dual-core and dual-architecture design, up to 150MHz operating frequency

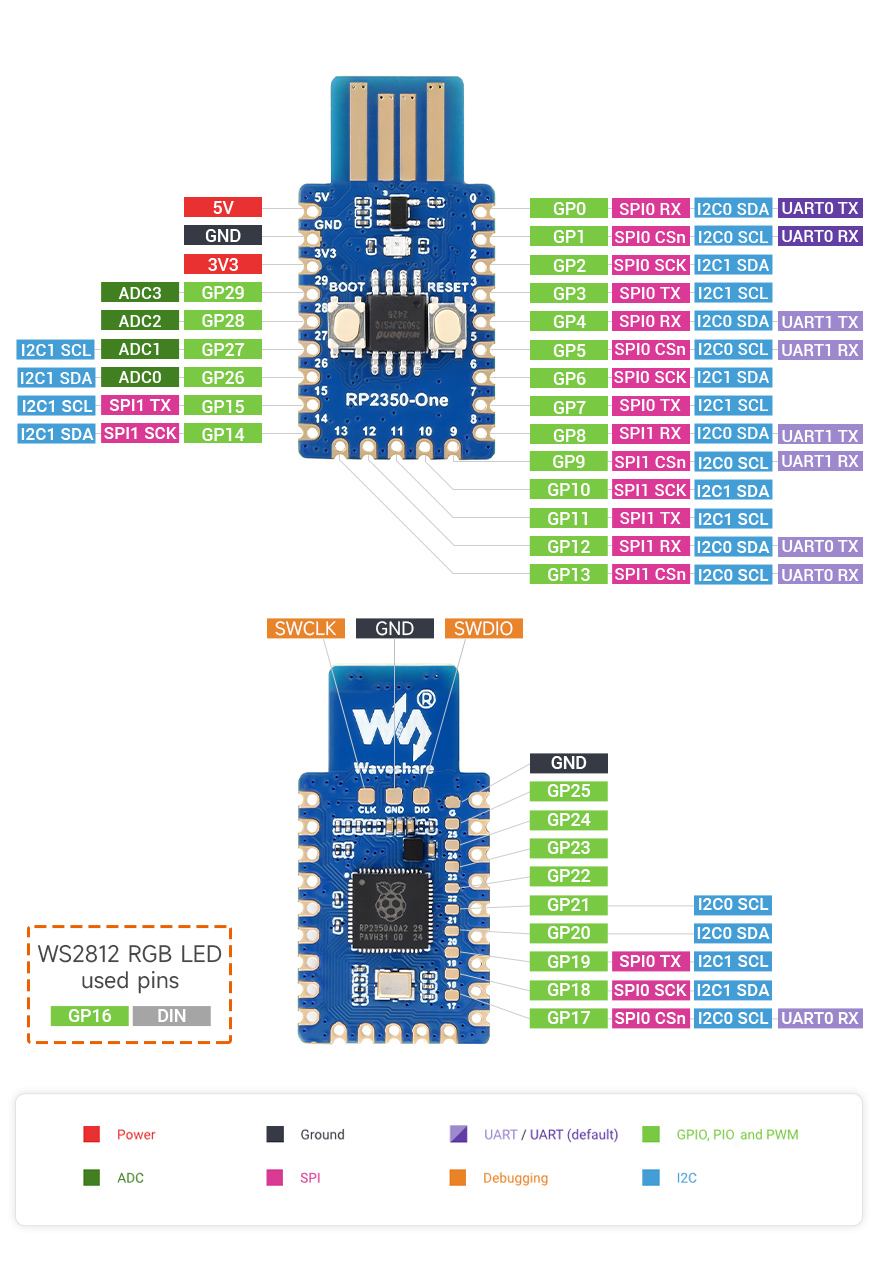

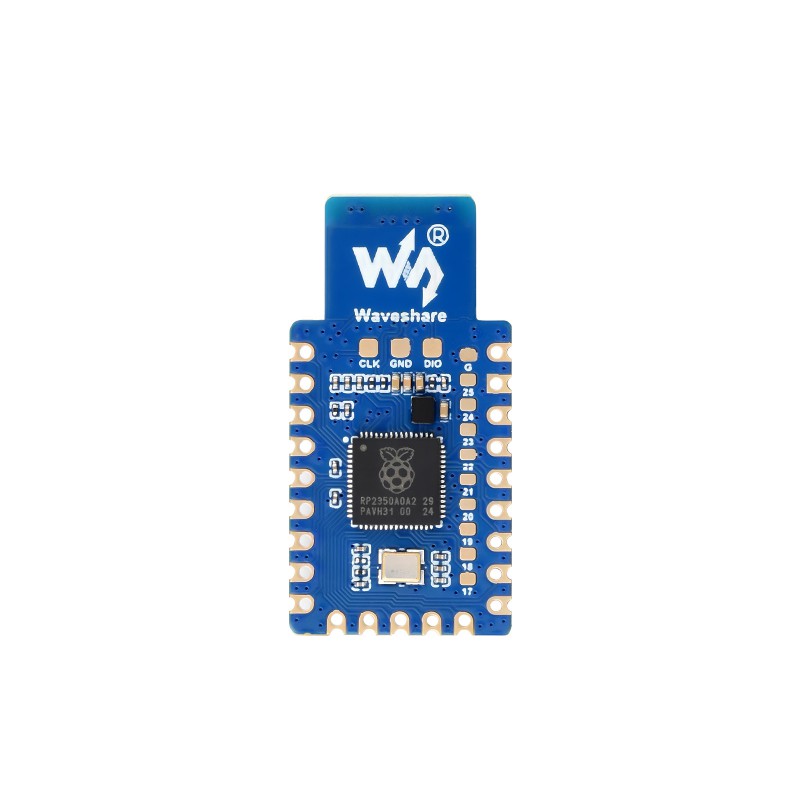

RP2350A pins
10× solder points, including 9x GPIO pins
Debug pins
