Waveshare RP2040-BLE Development Board

31-00026616
RP2040-BLE
Κατόπιν παραγγελίας
Διαθέσιμο σε 45-60 ημέρες
820
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

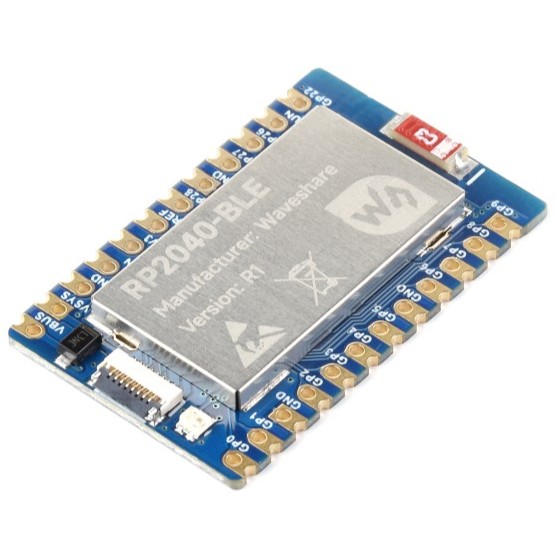

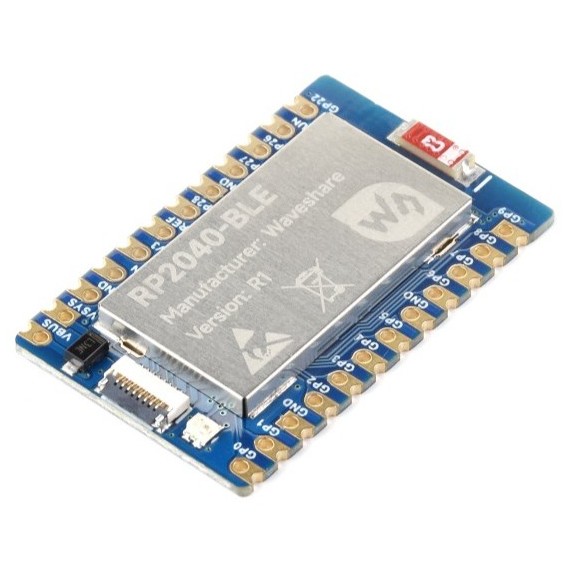

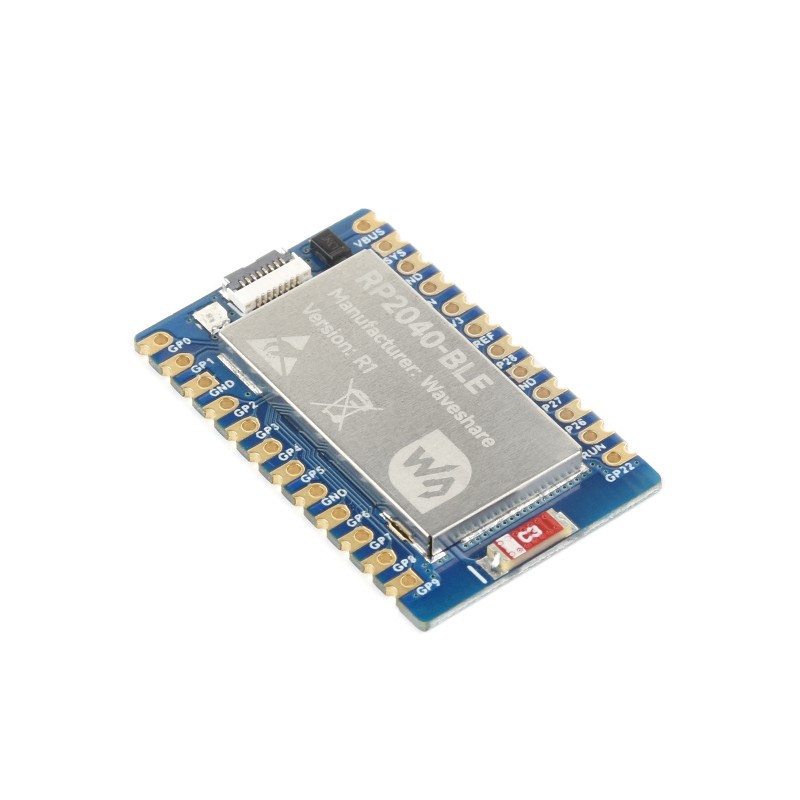

This is a mini RP2040 development board featuring Bluetooth 5.1 dual-mode functionality, enabling Bluetooth wireless communication via serial AT commands. Equipped with 14 multi-function GPIO pins and castellated edges, this compact board is easy and quick to integrate into a wide range of projects.

Key features
  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • Supports Bluetooth 5.1 dual mode function
  • Allows controlling by serial AT commands for quick start-up
  • SPP and BLE support
  • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
  • Castellated module allows soldering direct to carrier boards
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes

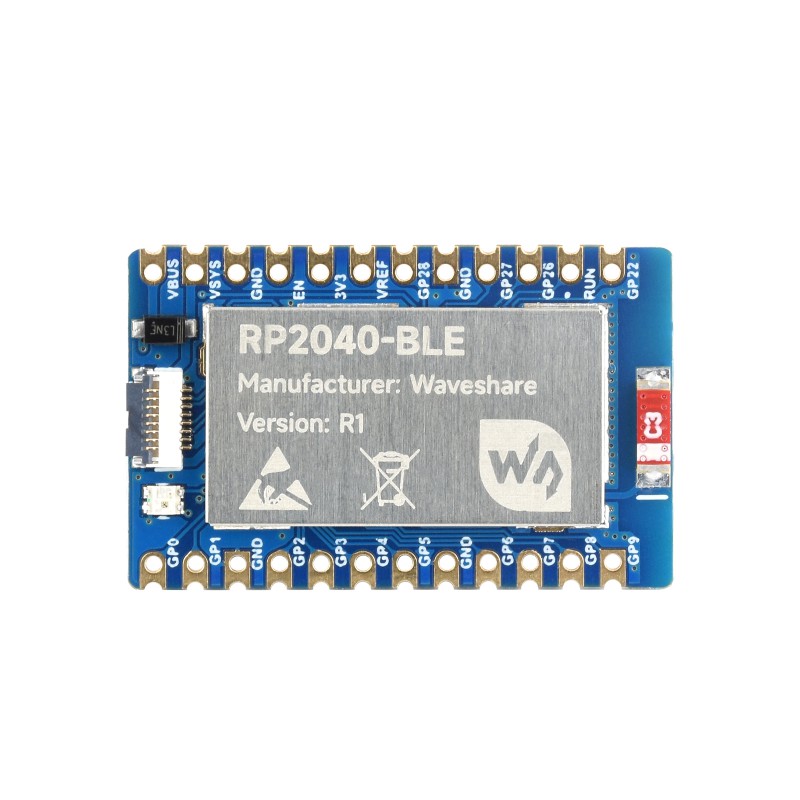

  • Adapting 24× pins including 14× multi-function GPIO pins
  • 2× SPI, 2× I2C, 2× UART, 3× 12-bit ADC, 14× controllable PWM channels
  • 8× Programmable I/O (PIO) state machines for custom peripheral support
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • Supports C/C++, MicroPython, Arduino
  • Comprehensive SDK, development resources and tutorials to help you easily get started

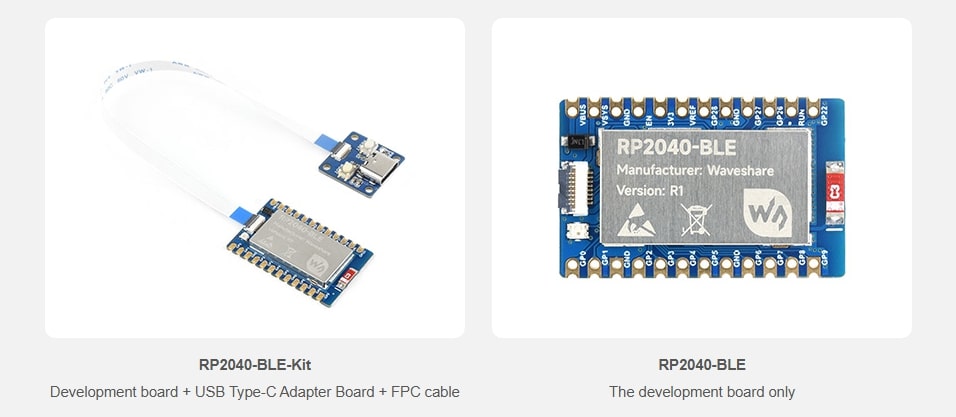

Available options

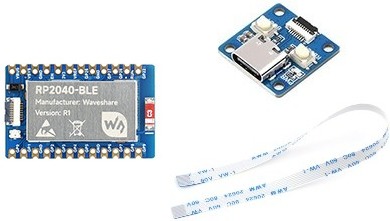

Package contents
  • GRobotronics SKU: 31-00026617
    • RP2040-BLE ×1

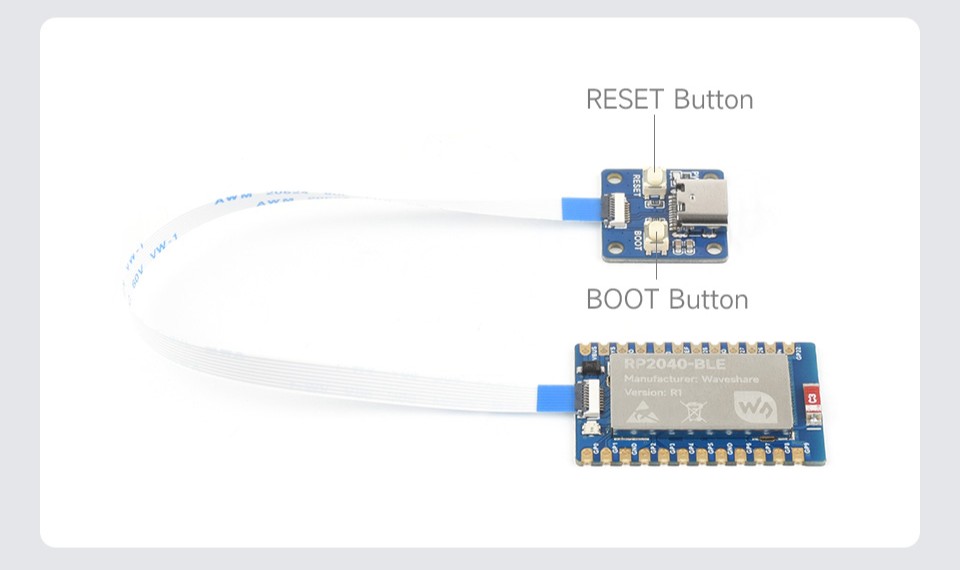

    • USB Type-C adapter board ×1
    • 8PIN FPC cable ~15cm ×1



Κατασκευαστής
Waveshare
Part Number
RP2040-BLE
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.003kg
Board Specifications
MCU/SoC
RP2040
Processor
Dual ARM Cortex-M0+
Clock Speed
133 MHz
RAM
264 kB SRAM
ROM
16 kB
Flash Memory
2 MB
Bluetooth
Bluetooth 5
