Waveshare RP2350 Zero

Κωδικός:

31-00028816

Part Number: RP2350-Zero

ΚατασκευαστήςWaveshare Part NumberRP2350-Zero

Διαθέσιμο

Αποστολή σε 24 ώρες

€6⁴⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€5.76

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

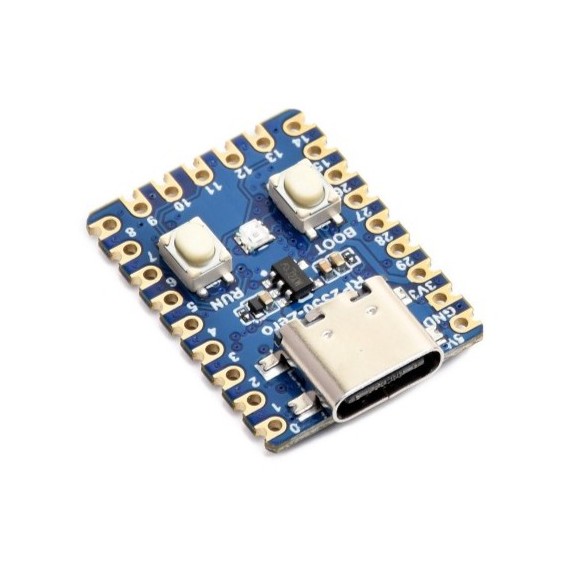

This mini development board features a Type-C female port and is powered by the RP2350A chip developed by Raspberry Pi. It exposes all unused pins in a compact form factor. Utilizing castellated processing technology, it can be soldered directly onto your custom board.

Board specifications

RP2350A microcontroller chip designed by Raspberry Pi
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150 MHz
520KB of SRAM, and 4MB of on-board Flash memory
Type-C connector, keeps it up to date, easier to use
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 24 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

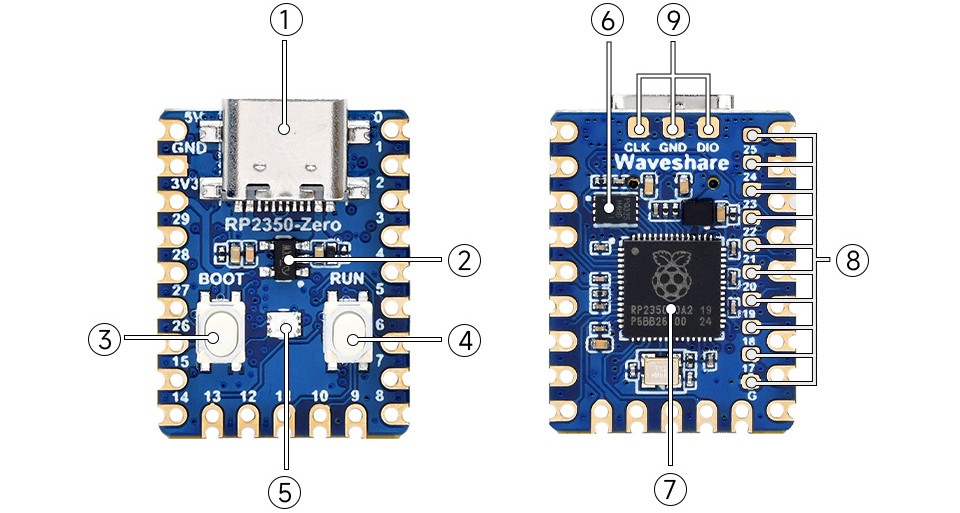

What's on board

USB Type-C connector for program downloading, supports USB1.1 hosts and slave devices
ME6217C33M5G low dropout regulator, 800mA output (Max.)
BOOT button, press it when resetting to enter download mode
RUN reset button
WS2812 cool RGB LED
P25Q32SH-UXH-IR 4MB NOR-Flash
RP2350A dual-core and dual-architecture design, up to 150 MHz operating frequency
RP2350A pins 10 × solder points, 9 of which are GPIO pins
Debug pins
