Waveshare RP2350 with CAN Controller

Κωδικός:

31-00030945

Part Number: RP2350-CAN

Κατόπιν παραγγελίας

Διαθέσιμο σε 45-60 ημέρες

€13⁶⁰

+ −

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual-core Arm Cortex-M33 processor and dual-core Hazard 3 RISC-V processor, flexible clock running up to 150MHz
520kB SRAM and 4MB onboard Flash memory

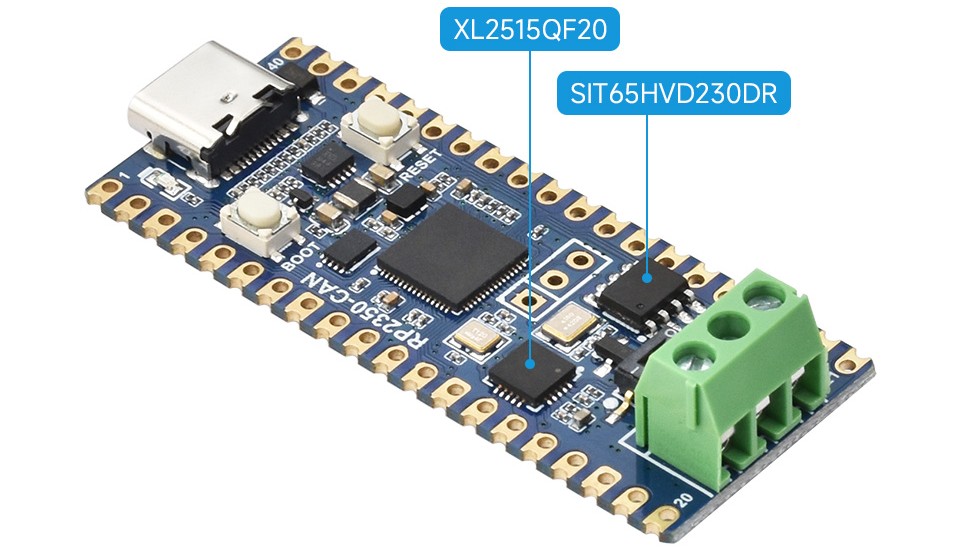

Onboard XL2515 CAN controller, fully supports CAN V2.0B specification
The communication rate is up to 1 Mbps with SIT65HVD230 transceiver
Type-C connector, keeps it up to date, easier to use
Castellated module allows soldering directly to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
2× SPI, 2× I2C, 2× UART, 4× 12-bit ADC, 16× controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12× Programmable I/O (PIO) state machines for custom peripheral support

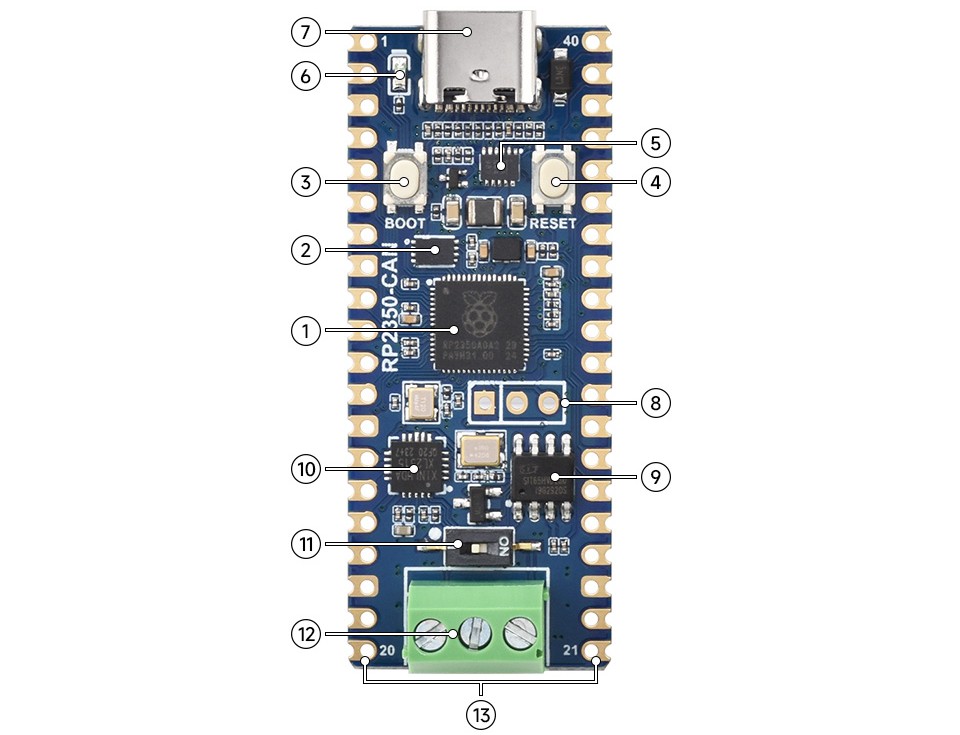

RP2350A
dual-core and dual-architecture design, up to 150 MHz operating frequency
P25Q32SH-UXH-IR
4MB NOR-Flash
BOOT button
RESET button
MP28164
high efficiency DC-DC buck-boost chip
User LED
(not power indicator)
USB Type-C connector
for program downloading, supports USB1.1 hosts and slave devices
Debug pins
SIT65HVD230DR
CAN transceiver
XL2515QF20
CAN controller
Terminal resistor selection
enable/disable 120R matching resistor
CAN screw terminal

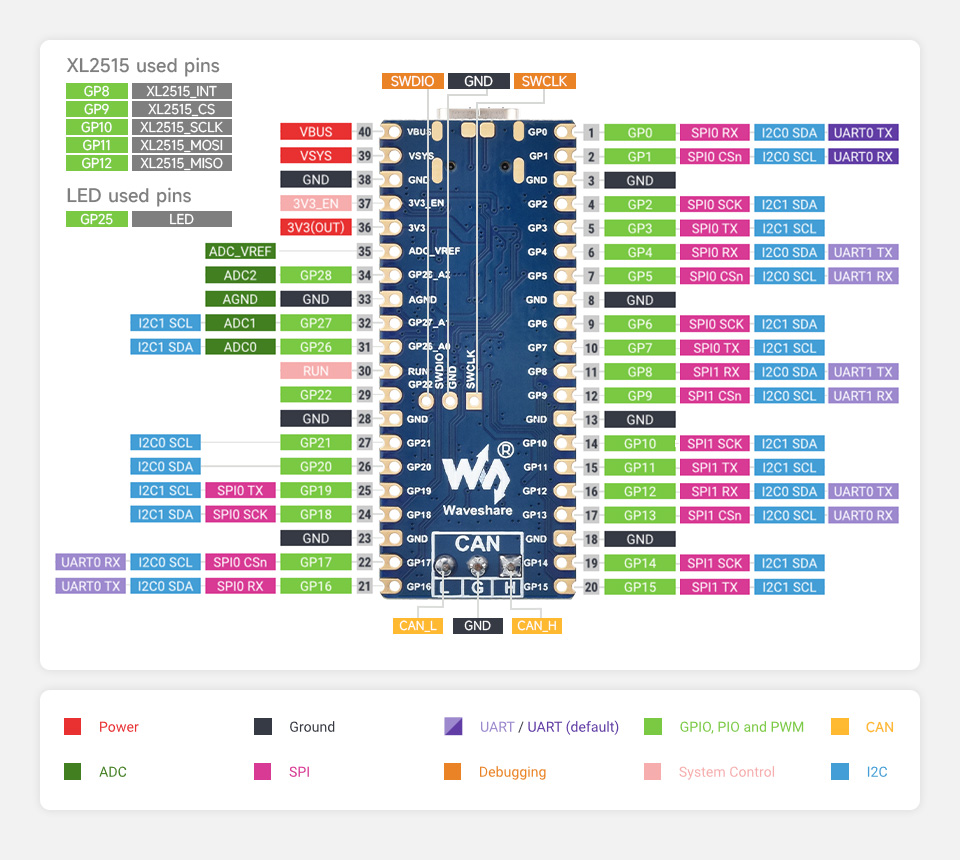

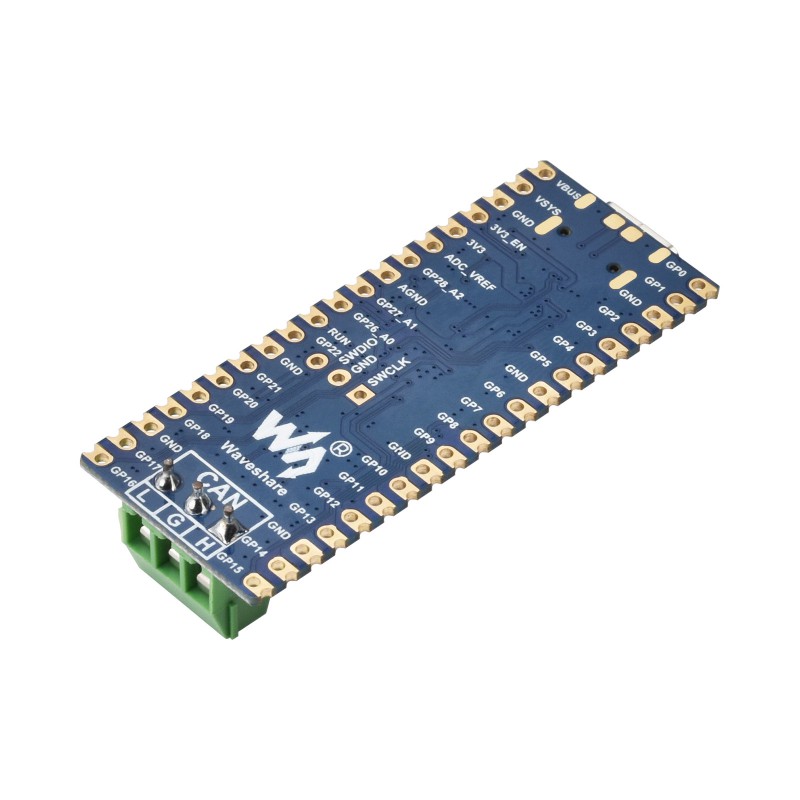

GPIO header
compatible with Raspberry Pi Pico pin header
