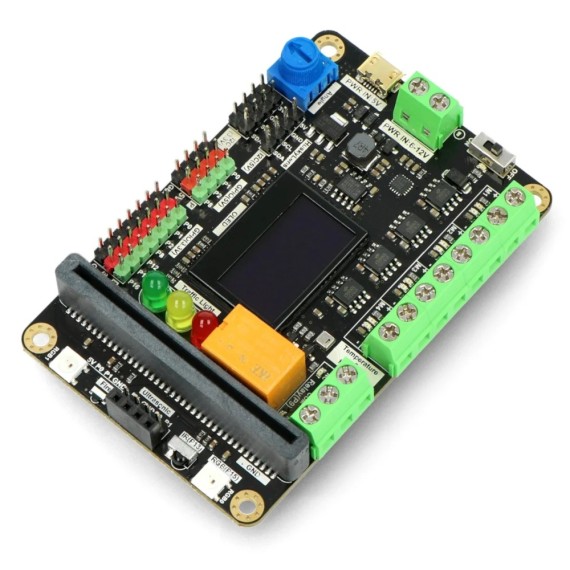

Xia mi - Multifunctional Expansion Board for micro:bit V2

25-00016917
MBT0042
ΚατασκευαστήςDFRobot Part NumberMBT0042
Διαθέσιμο
Αποστολή σε 24 ώρες
€3990
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

This is a micro:bit V2-based multi-functional expansion board for programming education! Featuring a small size of 57×87mm and a compact layout, the board expands more than 10 functional modules including sensors of all kinds, 4-way motor, LED lights, OLED screen, and external power supply, which allows students to not only learn the basic functions of micro:bit but also further advance to the next level like controlling robot cars, Mecanum wheel robot, and so on. Moreover, even with so many things integrated on the board, the price still remains low. Come and explore all these extra features!

Note: Xia mi Multi-functional Expansion Board only compatible with micro:bit V2, not compatible with micro:bit V1 board.

Key features
  • Highly integrated, over 10 modules onboard for STEAM education
  • Suitable for being applied to Mecanum wheel robot teaching and contest
  • Affordable for every student
Tutorials with MakeCode (see the wiki page):
  1. Light Up RGB LED
  2. Traffic Signal Light
  3. Ambient Temperature and Humidity Sensor
  4. Control Servo via Angular Rotation Sensor
  5. IR-controlled Relay Switch
  6. Fire Alarm
  7. SR04 Ultrasonic Distance Sensor
  8. 4-way Motor Drive


Board overview



Technical data
  • Operating Voltage: 5V(USB)
  • External Power Supply: 5V~12V (The switch only controls the external power)
  • Infrared Receiver (P13) ×1
  • W2812RGB Light (P15) ×2 (RGB0 RGB1)
  • Relay Module (I2C) ×1 (On-board status indicator )
  • Infrared Flame Sensor (I2C) ×1
  • Temperature & Humidity Sensor (I2C) ×1
  • Rotation Angle Sensor (I2C) ×1
  • Red/Yellow/Green Traffic Light Module (I2C) ×1
  • 12864_OLED Display (I2C) ×1 (With black metal protective cover)
  • Motor Drive (I2C)×4 (Onboard forward/backward rotation two-color indicator)
  • GPIO(5V): P0 P1 P2 P8 (External power with stronger driving capability)
  • GPIO(3.3V): P0 P1 P2 P8 P12 P14 P16 (Inner power of micro:bit main-board)
  • I2C Expansion Port (3.3V) ×2
  • HuskyLens Port (5V I2C ) ×1 (External power with stronger drive capability)
  • SR04 Ultrasonic Sensor Port ×1 (5V P0 P1 GND)
  • URM10 Ultrasonic Sensor Port ×1 (5V P0 P1 GND)
  • Dimensions: 57×87mm



Συμβατό Micro:bit
  • V2
Κατασκευαστής
DFRobot
Part Number
MBT0042
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται με εγγύηση
Καθ. Βάρος
0.058kg
