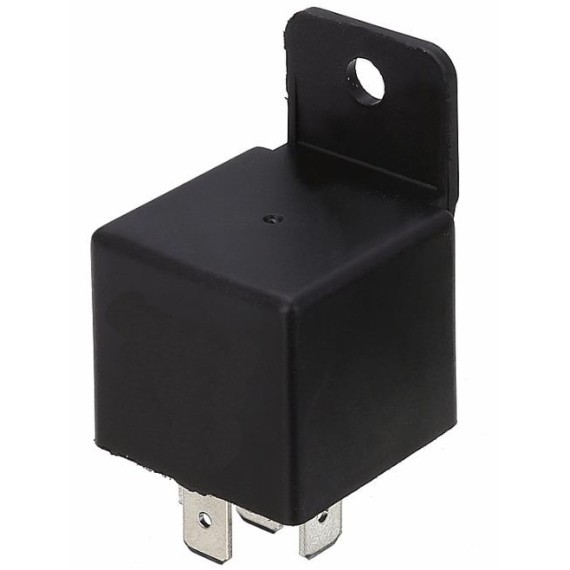

Car Relay 12V 40A

05-00010533
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.70
Without VAT 1.37
+
Our quantity discounts:
Quantity 10+ 100+ 1000+
Price 1.36 1.19 1.02
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
12VDC
Contact Current Max. :
40A
Type / Contacts Config.:
  • SPDT

EXTRA SPECIFICATIONS

  • Contacts configuration: SPDT
  • Rated coil voltage: 12V DC
  • Contact current max.: 40A
  • DC contacts rating  (at resistance load): 30 A / 12 VDC
  • Relay variant: Automotive
  • Coil resistance: 80Ω
  • Relay series: LD
  • Operating temperature: -40...85°C
  • Mounting socket, on panel
  • Contact resistance: 100mΩ
  • Mechanical durability: 1000000cycles
  • Coil current: 150mA
  • Operate time: 10ms
  • Release time: 10ms
  • Electrical life: 100000cycles

Dimensions

  • 28 x 28 x 25mm
  • Weight: 38g
  • Leads connectors: 6.3x0.8mm
