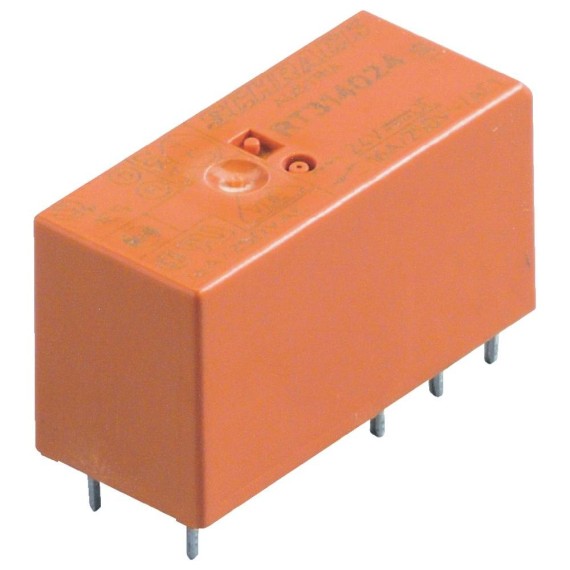

Relay 12V DPDT (8A/250V)

05-00010527
Gross Weight: 0.05kg
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.90
Without VAT 1.53
+
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
12VDC
Contact Current Max. :
8A
Type / Contacts Config.:
  • DPDT

EXTRA SPECIFICATIONS

  • Relay type: Electromagnetic
  • Contacts configuration: DPDT
  • Rated coil voltage: 12V DC
  • AC contacts rating (at resistance load): 8 A / 250 VAC
  • DC contacts rating (at resistance load): 8 A / 30 VDC
  • Contact current max.: 8A
  • Switched voltage: max 400V AC, max 300V DC
  • Relay variant: Miniature
  • Mounting: PCB
  • Coil resistance: 360Ω
  • Coil voltage min.: 8.4V DC
  • Operate time: 7ms
  • Release time: 2ms
  • Coil power consumption: 400mW
  • Sealing: IP40
  • Mechanical durability: 300000000cycles
  • Operating temperature: -40...70°C
  • Relay series RT2
  • Contact material AgNi 90/10
  • Number of pins 8

Dimensions

  • 29 x 12.7 x 15.7mm
  • Weight: 14g
  • Contacts pitch: 5mm
