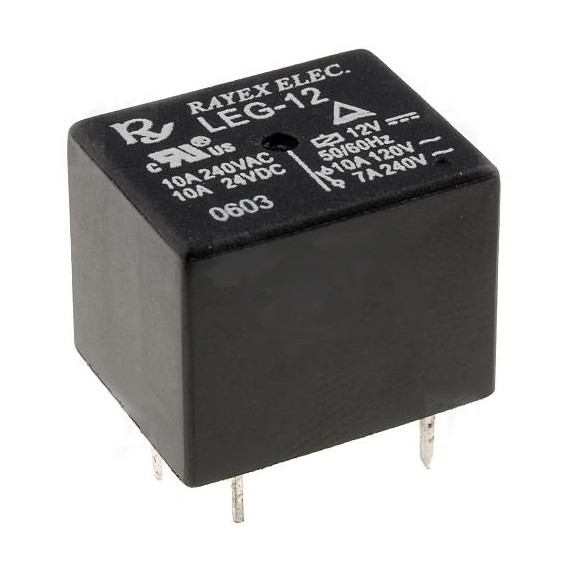

Relay 12V SPDT (SRD)

05-00001002
Volumetric weight: 0.02kgs
Made in: Taiwan
Out of Stock
Product out of stock
Available in store
0.60
Without VAT 0.48

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
12VDC
Contact Current Max. :
10A
Type / Contacts Config.:
  • SPDT

EXTRA SPECIFICATIONS

  • Contacts configuration: SPDT
  • Rated coil voltage: 12V DC
  • AC contacts rating: 10 A / 120 VAC
  • DC contacts rating: 10 A / 24 VDC
  • Contact current max.: 10A
  • Switched voltage max: 240V AC, max 100V DC
  • Relay variant: miniature
  • Mounting: PCB
  • Coil resistance: 400Ω
  • Operate time: 8ms
  • Body dimensions: 19.5 x 15.8 x 15mm
  • Release time: 8ms
  • Coil power consumption: 360mW
  • Operating temperature: -25...60°C
  • Relay series: LEG
  • Contact resistance: 100mΩ
  • Contacts pitch: 2mm
  • Coil current: 30mA
