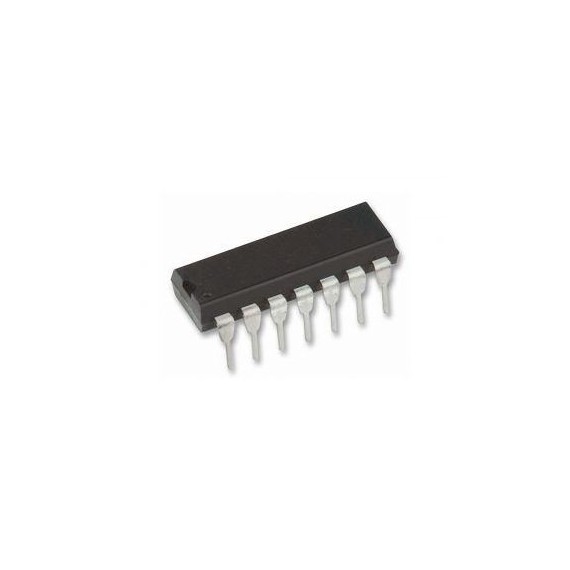

74LS74AN D Flip-Flop

05-00974174
Gross Weight: 0.01kg
Made in: USA
Out of Stock
Product out of stock
No stock in retail store
0.80
Without VAT 0.65

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

SPECIFICATIONS

Case:
DIP14

EXTRA SPECIFICATIONS

  • Number of Circuits: 2
  • Logic Family: LS
  • Logic Type: D-Type Latch and Flip-Flop
  • Polarity: Inverting/Non-Inverting
  • Input Type: TTL
  • Output Type: TTL
  • Propagation Delay Time: 40 ns
  • High Level Output Current: - 0.4 mA
  • Low Level Output Current: 8 mA
  • Supply Voltage - Max: 5.25 V
  • Minimum Operating Temperature: 0 C
  • Maximum Operating Temperature: + 70 C
  • Mounting Style: Through Hole
  • Package/Case: PDIP-14
  • Packaging: Tube
  • Function: Contain 2 Independent Positive Edge Triggered Flip Flops
  • Number of Channels: 2
  • Number of Input Lines: 3
  • Number of Output Lines: 1
  • Operating Supply Voltage: 5 V
  • Operating Temperature Range: 0 C to + 70 C
  • Reset Type: Set, Reset
  • Series: SN74LS74A
  • Supply Voltage - Min: 4.75 V

Dimensions

  • Height: 4.57 mm
  • Length: 19.3 mm
  • Width: 6.35 mm
