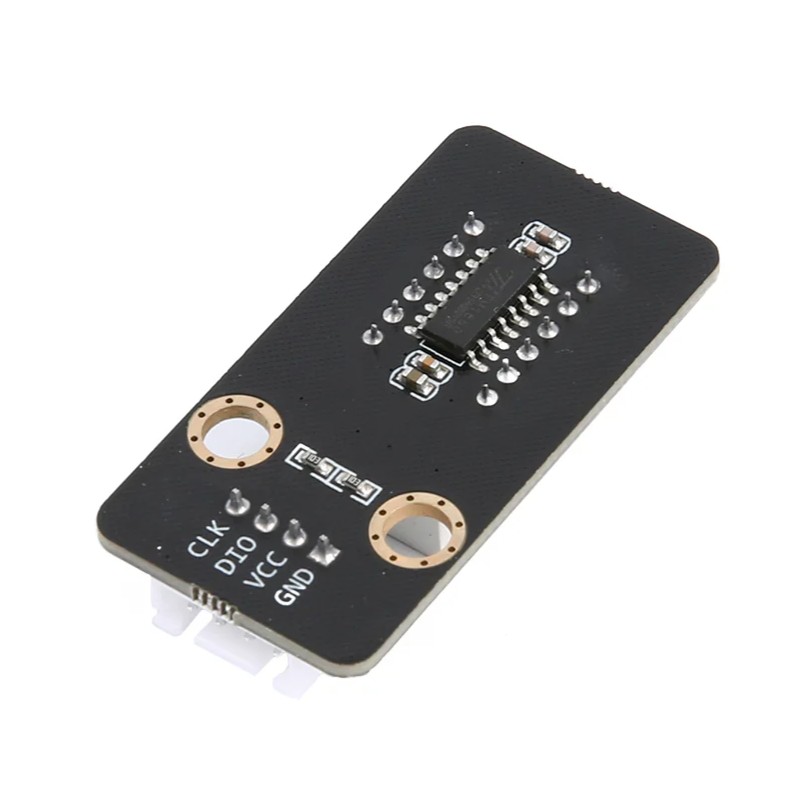

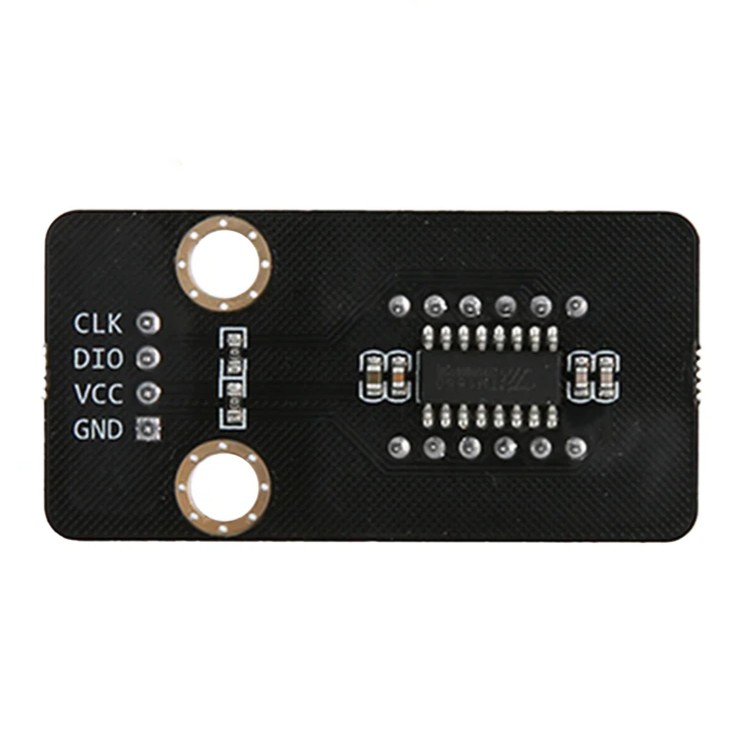

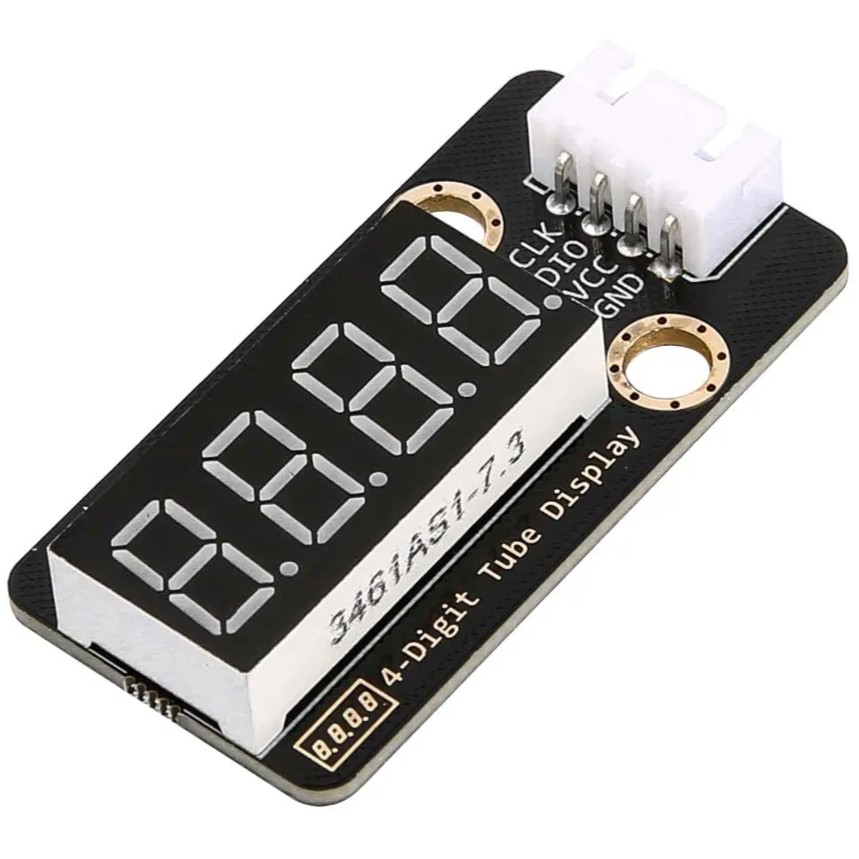

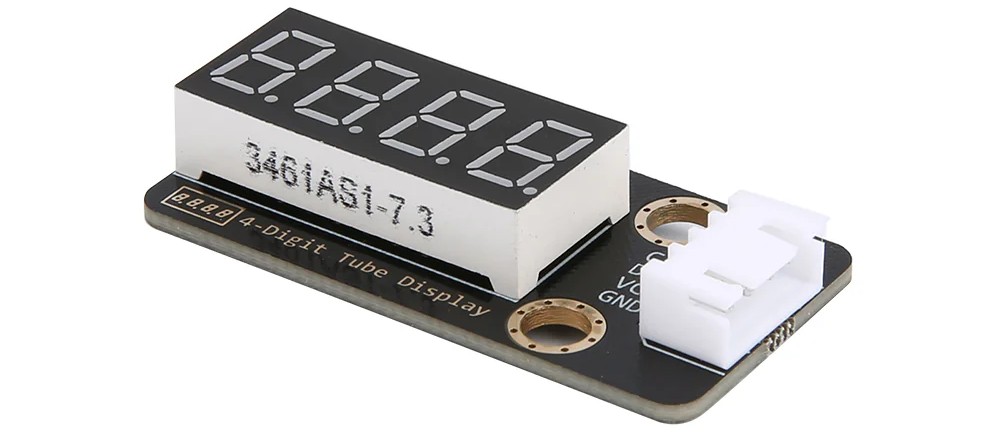

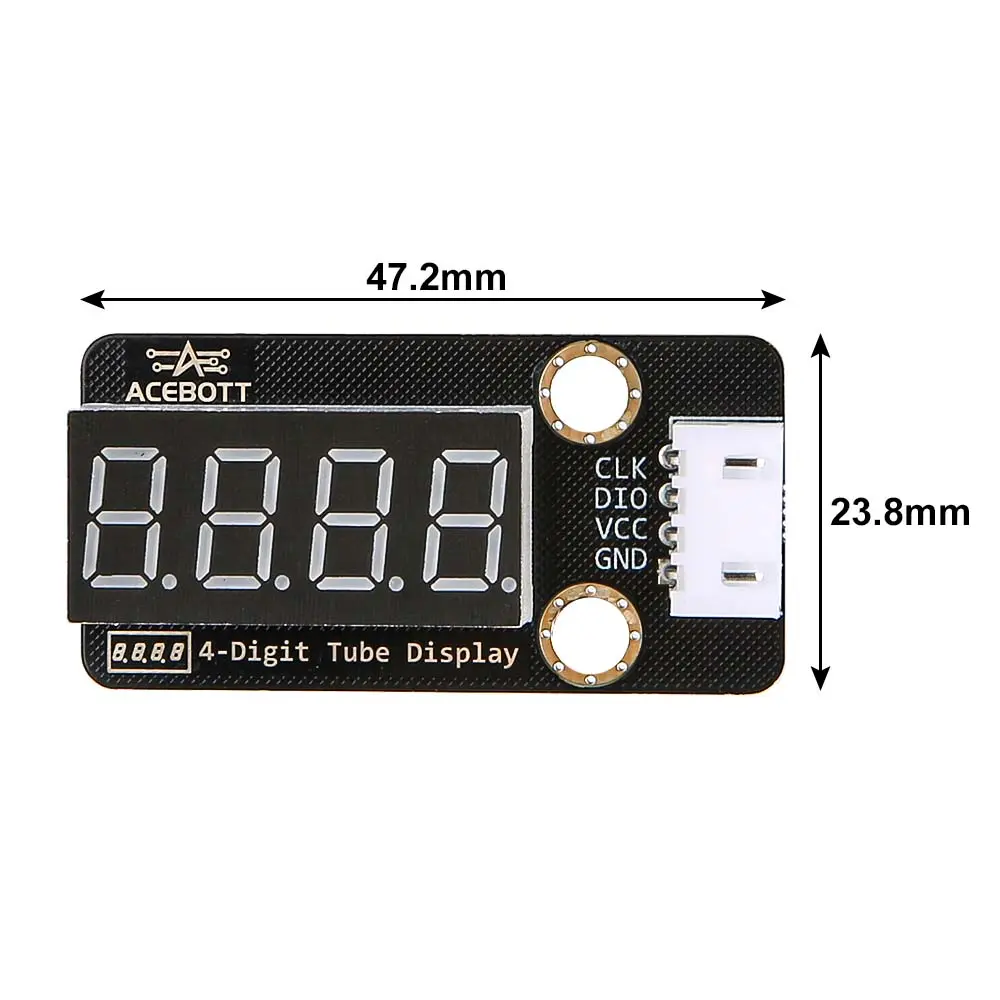

Acebott Easy-Plug 7-Segment 4-Digit Module

69-00012437
QB090
JST XH Jumper 4 Wire to Separate Dupont
Acebott Easy-Plug 7-Segment 4-Digit Module

ΚατασκευαστήςAcebott Part NumberQB090
Διαθέσιμο
Αποστολή σε 24 ώρες
€360
Acebott
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά
Features
  • High quality display: Integrated 0.36" 4-digit, 7-segment display and common anode for clear visibility.
  • Efficient control: Features the TM1637 driver chip for precise control of the display's functionality.
  • Simple connection: 4 control pins with 2.54mm pitch allow direct connection to the microcontroller using jumpers, reducing wiring complexity.
  • IO pin protection: The microcontroller can control the 4-bit LED segment display via the signal interface, saving IO pin resources.
  • Easy installation: Two 3mm mounting holes are provided for secure mounting of the device.
Technical data
  • Operating voltage: 3.3V–5V
  • Operating temperature: -40°C – +85°C
  • Display color: Red
  • Communication mode: IIC


Κατασκευαστής
Acebott
Part Number
QB090
Καθ. Βάρος
0.02kg
