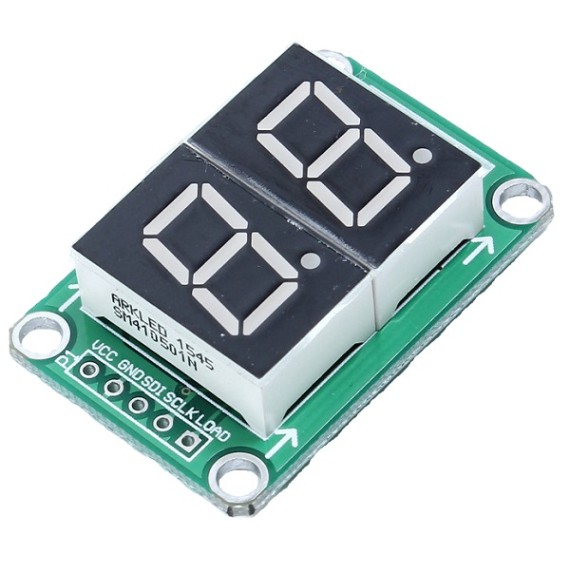

Display Module 7-Segment 2 Digit with 74HC595

by OEM
A 7-segment two digit display, each digit controlled by a  74HC595   integrated. Each digit has a height of 12.7mm with bright red illumination. It can...
19-00010100
Volumetric weight: 0.01kgs
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Available in store
2.50
Without VAT 2.02
+
WISHLIST COMPARE

DESCRIPTION

A 7-segment two digit display, each digit controlled by a 74HC595 integrated. Each digit has a height of 12.7mm with bright red illumination. It can use the screen with a microcontroller, for example Arduino. The monitor connects to the microscope using only three signal cables and two power cables. The operating voltage is between 3-5VDC.

They are also available with 4 digits and 3 digits.

SPECIFICATIONS

Oparating Voltage:
3 - 6VDC
Input Voltage:
3 - 6VDC
Oparating Current:
50mA
Interface:
  • Digital
Color:
  • Red
Digit Height:
12.7mm

Notes

  • Soldering required
  • Pin Header not including if you want to buy Click HERE

EXTRA SPECIFICATIONS

  • Led color: Red
  • Drives chip: 74HC595
  • Operating voltage: 3-5VDC
  • Input voltage: 3-5VDC (Recommended 5V)
  • Operating current: 50mA
  • Simple interface:
    • VCC +
    • GND -
    • SDI data
    • Shift clock SCLK
    • Latch LOAD
  • Easy to install: 4 screw holes 3mm

Dimensions
