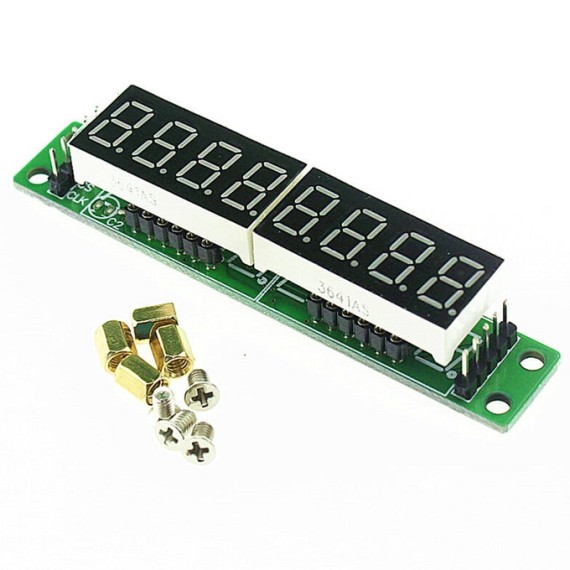

Led Display 8-Digit with MAX7219 - Red

19-00010119
ΚατασκευαστήςOEM
Διαθέσιμο
Αποστολή σε 24 ώρες
€420
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
€3.36
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

MAX7219 is an integrated serial input / output common-cathode display drivers, which connects the microprocessor and 8 digit 7-segment digital LED display, you can also connect a bar graph display or 64 separate LED. Includes an on-chip type B BCD encoders, multi-channel scanning loop, segment word driver, but also a 8x8 static RAM that stores each data. Only one external register is used to set the current of each LED segment.

A convenient four-wire serial interface can connect all common microprocessor. Each data can be addressed in the update without rewriting all displays. MAX7219 also allows the user to select each data encoding or no coding.
The entire device includes a 150µA low-power shutdown mode, analog and digital brightness control, a scan-limit register allows the user to display 1-8 bit data, there is an all LED light detection mode.

  • Operating Voltage: 3.3V - 5V
  • Connection: SPI
  • Led Color: Red
  • 8-Digit Display
Κατασκευαστής
OEM
Μικτό Βάρος
0.019kg
