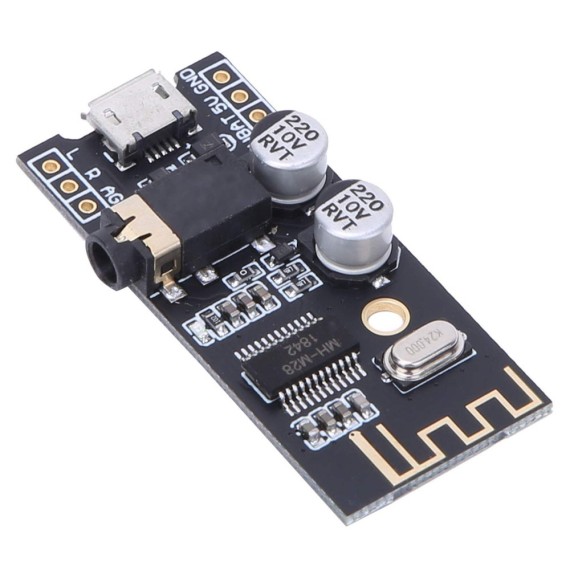

Bluetooth Audio Receiver MH-M28 - Jack Output

Κωδικός:

39-00013700

Part Number: MH-M28

ΚατασκευαστήςOem Part NumberMH-M28

Διαθέσιμο

Αποστολή σε 24 ώρες

€3⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€2.88

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

This Bluetooth audio receiver is designed for low-power Bluetooth communication, supporting Bluetooth 4.2 transmission. It quickly establishes a wireless Bluetooth connection once the module is powered on and pairs with the device that plays music.

Technical data

Model	MH-M28
Micro-USB power supply	Yes
Audio headphone jack	Yes
Built-in amplifier	No
Pads for lithium battery	Yes
Supports USB sound card	No
Volume memory/adjustment	No
Bluetooth version	Bluetooth V4.2
Support Bluetooth protocol	HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2
Format support	WAV, WMA, FLAC, APE, MP3 (two-channel output)
Operating voltage	5V / 3.7V-4.2V
Not connected broadcast state	5.5mA
Connection work state 20MA	20mA
Deep sleeping	3μA
Transmission distance	20m max (empty or low interference environment)
Operating temperature	-40°C to +85°C
Sensitivity	-87dBm
