Waveshare RP2040-BLE with USB adapter

από WAVESHARE

Η πλακέτα ανάπτυξης RP2040-BLE με πλακέτα USB Port Adapter και καλώδιο FPC λειτουργεί με Raspberry Pi. Υποστηρίζει Bluetooth 5.1 Dual Mode. Έχει διπύρηνο Arm Cortex M0+ και GPIO Pins για πολλές δυνατότητες σύνδεσης.

31-00026617
Ογκομετρικό βάρος: 0kg
Κατασκευαστής: WAVESHARE
Part Number: RP2040-BLE-Kit
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
9.60
Χωρίς ΦΠΑ 7.74
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 8.64

ΠΕΡΙΓΡΑΦΗ

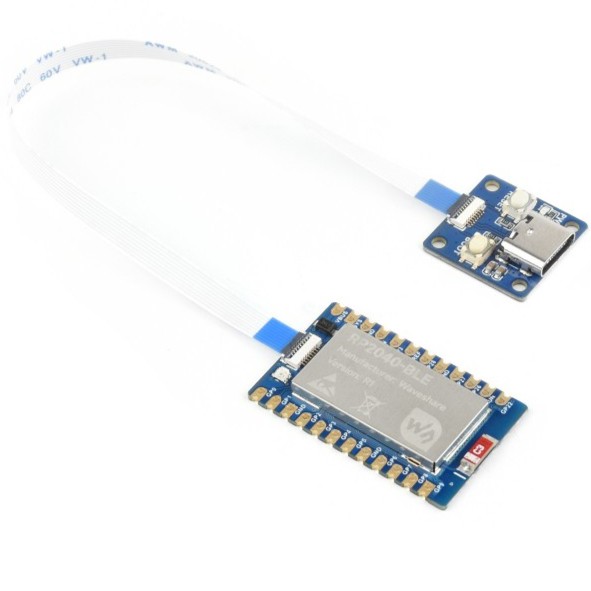

RP2040-BLE Development Board with USB Port Adapter Board and  FPC cable

Raspberry Pi Microcontroller Development Board, Based On RP2040, Supports Bluetooth 5.1 Dual Mode. With Dual -core Arm Cortex M0+ and multifunction GPIO Pins

Supports Bluetooth 5.1 Dual Mode

Allows Controlling By Serial AT Commands, With SPP And BLE Support

Support C/C++, MicroPython, Arduino

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

Compact Size, Separate Adapter Board Design

Castellated Holes With Immersion Gold Design, Highly Integrated Packaging, Easy To Embed Into Various Product Applications. Adapting USB Type-C Port Via Adapter Board

Dual-Core Arm Processor

Dual-Core Arm Cortex M0+ Processor, Flexible Clock Running Up To 133 MHz

Board Specifications

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of onboard Flash memory
  • Supports Bluetooth 5.1 dual mode function
  • Onboard Bluetooth module, allows controlling by serial AT commands for quick start-up
  • Onboard FPC 8PIN connector, adapting USB Type-C port via adapter board
  • Castellated module allows soldering direct to carrier boards
  • Drag-and-drop programming using mass storage over USB
  • Low-power sleep and dormant modes
  • Adapting 24 × pins including 14 × multi-function GPIO pins
  • 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 14 × controllable PWM channels
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Soldered Headers:
Without Headers
Κατασκευαστής
:
WAVESHARE
Part Number:
RP2040-BLE-Kit
Μικτό Βάρος:
0.003kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

14 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

Outline Dimensions

In the Box

  1. RP2040-BLE x1
  2. USB Type-C adapter board x1
  3. 8PIN FPC cable ~15cm x1
