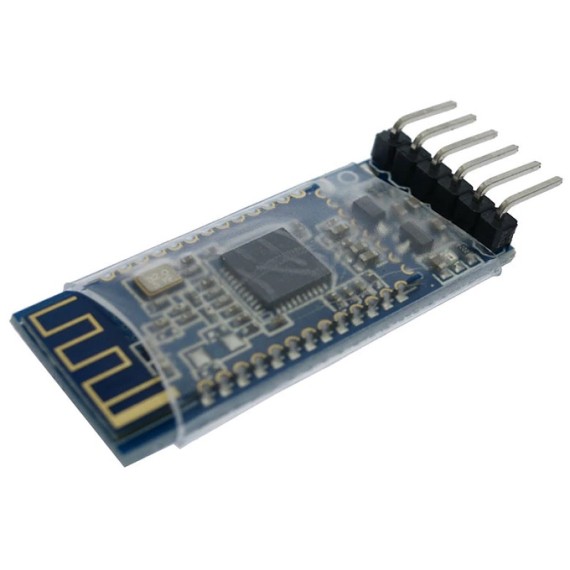

Bluetooth Module for Arduino - AT09

by OEM
The AT-09 is a module that contains a BLE chip (a CC2540/CC2541). This module allows to perform serial communication with the BLE chip thanks to an Rx and a...
19-00028264
Gross Weight: 0kg
Company: OEM
Made in: China
In Stock
Ships in 24 Hours
Low stock in store
5.90
Without VAT 4.76
+
WISHLIST COMPARE

DESCRIPTION

The AT-09 is a module that contains a BLE chip (a CC2540/CC2541). This module allows to perform serial communication with the BLE chip thanks to an Rx and a Tx pin. This module is also very similar to the HM-10 module and is also compatible with it.

EXTRA SPECIFICATIONS

  • Ultra-low standby power consumption: 90uA~400uA
  • Coverage up to 60 meters
  • Built in PCB antenna
  • Power input: 3.6V-6V DC (Can not higher than 6V)
  • Input voltage: 3.3V/5V only needs a set of power supply
  • Built in level conversion function
  • Uses: CC2541

FEATURES

  • This small size Bluetooth 4.0 transceiver module allows your device communicate with IOS or Android, Arduino and others
  • This module uses the JDY-09 Breakout
  • It is easy to use and completely encapsulated
  • You can set it as slave or master
  • You can use AT command set the baud rate
  • Ultra-low standby power consumption 90uA-400uA, built in PCB antenna, has a built-In Level Switch Function

Dimensions

  • Board: 38 x 15.5mm
  • With pins: 44 x 15.5 x 7mm
  • Pitch of pins: 0.079"/2mm

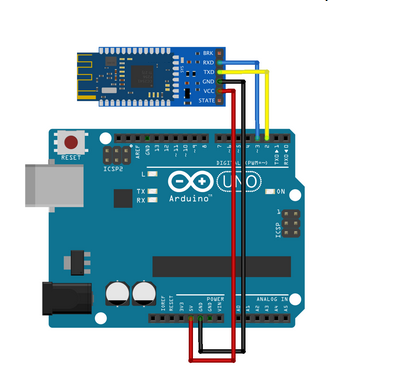

Connection
