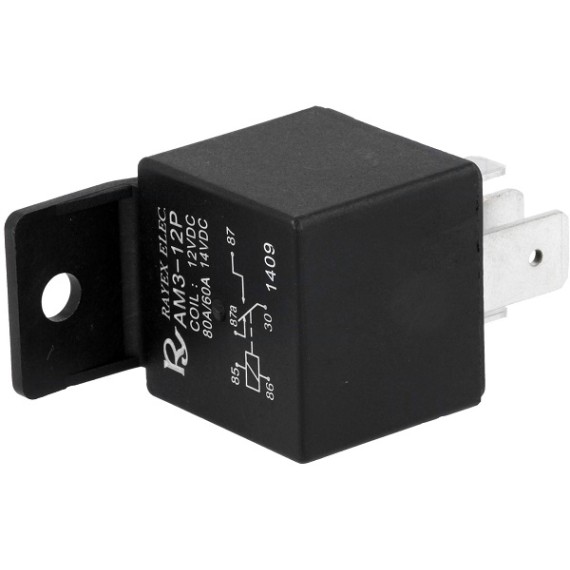

Car Relay 12V 80A

05-00010595
Made in: Taiwan
In Stock
Ships in 24 Hours
Available in store
3.20
Without VAT 2.58
+
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
12VDC
Contact Current Max. :
80A
Type / Contacts Config.:
  • SPDT

EXTRA SPECIFICATIONS

  • Type of relay: Electromagnetic
  • Contacts configuration: SPDT
  • Rated coil voltage: 12V DC
  • Contact current max.: 80A
  • DC contacts rating @R (at resistance load): 60 A / 14 VDC
  • Relay variant: Automotive
  • Coil resistance: 72Ω
  • Contact material: AgCdO
  • Operating temperature: -40...85°C
  • Mounting: On panel
  • Coil power consumption: 1.8W
  • Relay series: AM3
  • Coil current: 167mA
  • Contact resistance: 50mΩ
  • Operate time: 7ms
  • Release time: 5ms

Dimensions

  • Body: 28 x 28 x 25mm
  • Leads: 6.3x0.8mm connectors, 9.5x1.2mm connectors
