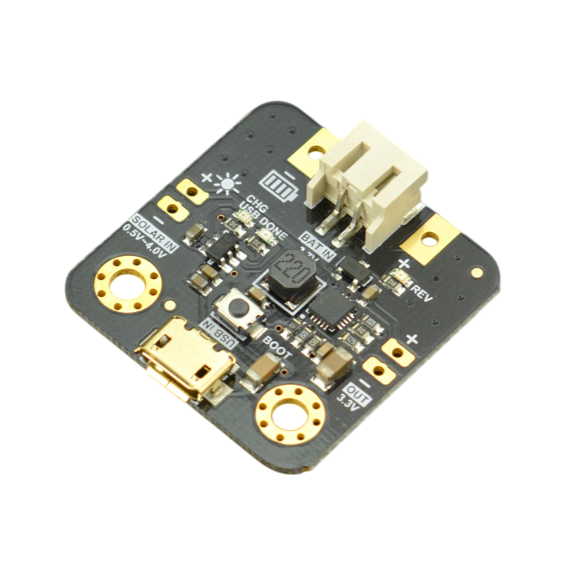

DFRobot Solar Power Manager Micro 1-3V

25-00016952
DFR0579
ΚατασκευαστήςDFRobot Part NumberDFR0579
Διαθέσιμο
Αποστολή σε 24 ώρες
€2480
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

The micro solar power manager is a solar power management module that supports the MPPT algorithm and has stabilized output. It is compatible with small solar panels ranging from 1V to 3V. This battery-protected solar power charger is designed specifically to power low-power wireless sensors or controllers in IoT systems. When combined with BLE Sensor Beacon or other wireless sensors, it can create a long-lasting solar-powered wireless sensor node. Additionally, when combined with the FireBeetle ESP32 series controller, it can greatly extend the device's usage time, taking advantage of the ESP32 series' low power consumption capabilities. With the micro solar power manager, customers can easily integrate their solar power supply systems and provide continuous, stable, and eco-friendly energy for their IoT projects.

This solar power management module boasts a voltage regulation output of 3.3V and 90mA, effectively meeting the power requirements of most low-power devices. It ensures the stability of the power supply during wireless device data transmission and reception, preventing system crashes caused by sudden electrical surges. This is particularly critical for sensitive precision instruments and sensors, for which high stability is of utmost importance. Furthermore, the voltage regulation output also minimizes device malfunctions and damages that ensue from voltage fluctuations, thus prolonging the lifespan of the equipment.

This solar management module utilizes a constant voltage MPPT (Maximum Power Point Tracking) algorithm, which enables maximum solar energy conversion efficiency even in low light conditions. It can charge a 3.7V lithium battery via both solar panels or USB, supplying up to 70mA and 100mA charging current respectively.

For low-power solar projects, when faced with consecutive cloudy days or insufficient battery capacity to meet equipment requirements, the lithium battery may suffer from over-discharge problems. To address this, the micro solar power charger is designed with overcharge and over-discharge protection features, which ensure that the battery is kept within a safe range during charging and discharging processes, thus prolonging the battery's lifespan.


Power micro:bit with Small Solar Panel




Power Firebeetle Series with Small Solar Panel



Board Overview



Features
  • Designed with a focus on micro-energy harvesting and ultralow-power consumption, tailored specifically for small solar panels in the 1V~3V voltage range.
  • The 3.3V 90mA stabilized output current ensures consistent and reliable energy provision for devices.
  • MPPT algorithm is implemented to achieve maximum solar power conversion efficiency.
  • Battery protection features such as overcharge and over-discharge prevention are present, contributing to an increased lifespan of the battery.
Applications
  • Low-Power Wireless Sensor Network
  • Bluetooth Beacon Localization
  • Miniature Solar-powered Toy
Technical data

Micro Solar Power Management Module

  • Solar Power Management IC: SPV1050
  • Solar Input Voltage (SOLAR IN): 0.5V~4V
  • Battery Input (BAT IN): 3.7V Lithium Battery
  • Maximum Charge Current: 100mA@USB IN; 70mA@SOLAR IN
  • Over-charge Protection Threshold: 4.2V
  • Over-discharge Protection Threshold: 3.1V
  • Regulated Power Supply: 3.3V 90mA@BAT IN 3.7V
  • Quiescent Current: <3μA
  • Protection Functions
    • BAT IN: Over-discharge/Over-charge/Reverse Connection Protections
    • OUT: Short Circuit/Over Current Protections
  • Operation Temperature: -40℃~85℃
  • Dimensions: 30.0mm×30.0mm

Solar Panel

  • Nominal Voltage (VMP): 2V
  • Nominal Current (IMP): 160mA
  • Open Circuit Voltage (IOC): 2.4V
  • Short Circuit Current (ISC): 190mA
  • Solar Cell Material: Monocrystalline Silicon
  • Other Features: Waterproof, Oil Resistant and Corrosion Resistant
  • Dimension: 50mm×50mm
Package contents
  1. Solar Power Manager Micro ×1
  2. Monocrystalline Silicon Solar Panel 2V 160mA 50×50mm ×1
  3. Red Single Conductor Wire 15cm 24AWG ×2
  4. Black Single Conductor Wire 15cm 24AWG ×2
  5. PH2.0-2P Male Power Wire 15cm ×1
  6. XH2.54-2P Header ×2

DFRobot Solar Power Manager series is designed for IoT and renewable energy projects, providing safe and efficient embedded solar power management modules for makers and application engineers. The full range features Maximum Power Point Tracking (MPPT) function, which maximizes solar collection efficiency under various lighting conditions, and provides stable output voltages and multiple battery and power protections for various solar projects, ensuring efficient and reliable power management.

Selection Guide
DFRobot Solar Power Manager 9-18VDFRobot Solar Power Manager 5VDFRobot Solar Power Manager Micro 1-3VDFRobot Solar Power Manager for 12V Lead-Acid Battery
SKUDFR0535DFR0559DFR0579DFR0580
Solar Power Management ICLTC3652CN3065SPV1050CN3767
Solar Input Voltage7V ~ 30V4.4V ~ 6V0.5V ~ 4V15V ~ 25V
Maximum Charge Current (Solar)2A (Solar/USB)900mA (Solar/USB)70mA (Solar)/100mA (USB)4A (Solar)
TopologyDC-DC BuckLinear RegulatorDC-DC BoostDC-DC Buck
Battery3.7V Lithium Battery3.7V Lithium Battery3.7V Lithium Battery12V Lead-Acid Battery
MPPT9V/12V/18V OptionalFixed 5V75% Open VoltageFixed 18V
Battery ProtectionsOver Charge/Over Discharge/Over Current/Reverse Connection ProtectionsOver Charge/Over Discharge/Over Current/Reverse Connection ProtectionsOver Charge/Over Discharge/Reverse Connection ProtectionsOver Charge/Over Discharge/Reverse Connection Protections
Output ProtectionsShort Circuit/Over Current/Over Heat ProtectionsShort Circuit/Over Current ProtectionsShort Circuit/Over Current ProtectionsShort Circuit/Over Current/Over Heat Protections
USB Charge INYesYesYesNo
USB OUT5V 1.5A5V 1ANo5V 2.5A X2
Regulated OUTThree Regulated Outputs 3.3V 1A；5V 1.5V；9V/12V 0.5AOne Regulated Output 5V 1AOne Regulated Output 3.3V 90mATwo Outputs 5V 5A; 12V 8A
Dimensions78.0mm×68.0mm33.0mm×63.0mm30.0mm×30.0mm68.0mm×68.0mm
FeaturesA complete multifunction solar power management module. Applications: Small Solar Street Lamp, Solar Powered Robots For 9V/12V/18V Solar Panels within 20WA small and easy-to-use 5V solar power management module. Applications: Solar Power Bank, Solar Environment Monitors For 5V Solar Panels within 10WA micro power solar power management module for low-power sensors and controllers. Applications: Wireless Sensor Network, BLE iBecon For 1V/2V/3V Solar Panels within 0.5WMedium power solar management module for 12V lead-acid batteries. Applications: Street lighting, intelligent agriculture, environmental monitoring station For 18V Solar Panels within 100W



Κατασκευαστής
DFRobot
Part Number
DFR0579
Εγγύηση
Ως εξάρτημα, δεν καλύπτεται με εγγύηση
Καθ. Βάρος
0.024kg
Χημική Σύσταση
  • Lithium
