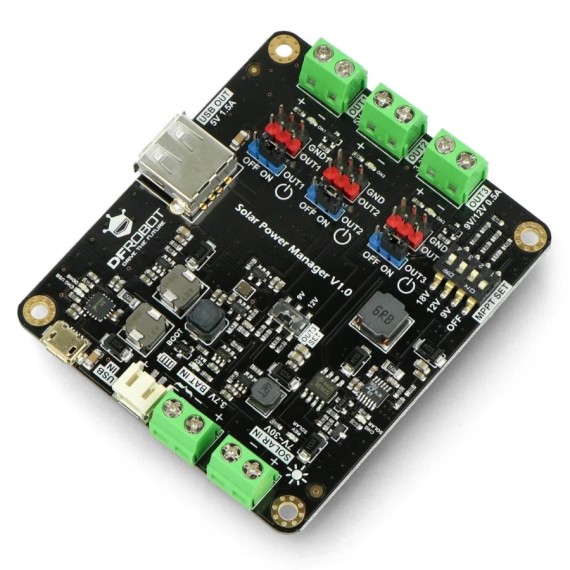

DFRobot Solar Power Manager 9-18V, 2 image

DFRobot Solar Power Manager 9-18V

Κωδικός:

25-00016951

Part Number: DFR0535

ΚατασκευαστήςDFRobot Part NumberDFR0535

Διαθέσιμο

Αποστολή σε 24 ώρες

€49⁹⁰

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

Solar Power Manager is a complete small power and high-efficiency solar power management module. It features as MPPT (Maximum Power Point Tracking) function, maximizing the efficiency of the solar panel. Apart from serving as a solar charger, the module can provide up to 2A charging current to 3.7V Li battery with AC adapter (within 30V) or USB charger, three individual ON/OFF controllable DC-DC converters with 5V 1.5A, 3.3V 1A and 9V/12V 0.5A outputs. These features satisfy the needs of various solar power projects and low-power applications. The module also employs various protect functions, such as Li battery protection, battery/solar panel reverse connection protection, output over temperature and over current/short circuit protection, which greatly improves the stability and safety of the system.

Applications

Smart solar environment monitor system
Solar powered robot
Small solar street lamp
Solar power bank

Connection diagram

Board overview

Technical data

Solar power management IC: LTC3652
Solar input voltage (SOLAR IN): 7V~30V
Battery input (BAT IN): 3.7V single cell Li-polymer/Li-ion battery
Charge current(USB/SOLAR IN): 2A Max
Charging cutoff voltage(USB/SOLAR IN): 4.2V±1%
MPPT setting voltages: OFF/9V/12V/18V
USB IN voltage: 5V
Regulated power supply: OUT1=5V 1.5A; OUT2=3.3V 1A; OUT3=9V/12V 0.5A
Regulated power supply efficiency (3.7V battery IN)
- OUT1: 86%@50%Load
- OUT2: 92%@50%Load
- OUT3 (9V OUT): 89%@50%Load
USB charge efficiency: 84%@1A
Solar charge efficiency (18V SOLAR IN): 78%@1A
Maximum quiescent current: <3mA
Protections
- BAT IN: over charge /over discharge /over current /reverse connection protection
- OUT1-OUT3/USB OUT: short circuit/over current/over heat protection
- SOLAR IN: reverse connection protection
Operation temperature: -40℃~85℃
Dimensions: 78.0mm×68.0mm

Package contents

Solar Power Manager ×1
M3 nylon pillar ×4
M3 stainless steel screw ×4
14mm×14mm Aluminum cooling fin ×1
14mm×14mm Thermal conductive silicone pad ×1
Female DC power jack adapter ×1

DFRobot Solar Power Manager series is designed for IoT and renewable energy projects, providing safe and efficient embedded solar power management modules for makers and application engineers. The full range features Maximum Power Point Tracking (MPPT) function, which maximizes solar collection efficiency under various lighting conditions, and provides stable output voltages and multiple battery and power protections for various solar projects, ensuring efficient and reliable power management.

Selection Guide

	DFRobot Solar Power Manager 9-18V	DFRobot Solar Power Manager 5V	DFRobot Solar Power Manager Micro 1-3V	DFRobot Solar Power Manager for 12V Lead-Acid Battery
SKU	DFR0535	DFR0559	DFR0579	DFR0580
Solar Power Management IC	LTC3652	CN3065	SPV1050	CN3767
Solar Input Voltage	7V ~ 30V	4.4V ~ 6V	0.5V ~ 4V	15V ~ 25V
Maximum Charge Current (Solar)	2A (Solar/USB)	900mA (Solar/USB)	70mA (Solar)/100mA (USB)	4A (Solar)
Topology	DC-DC Buck	Linear Regulator	DC-DC Boost	DC-DC Buck
Battery	3.7V Lithium Battery	3.7V Lithium Battery	3.7V Lithium Battery	12V Lead-Acid Battery
MPPT	9V/12V/18V Optional	Fixed 5V	75% Open Voltage	Fixed 18V
Battery Protections	Over Charge/Over Discharge/Over Current/Reverse Connection Protections	Over Charge/Over Discharge/Over Current/Reverse Connection Protections	Over Charge/Over Discharge/Reverse Connection Protections	Over Charge/Over Discharge/Reverse Connection Protections
Output Protections	Short Circuit/Over Current/Over Heat Protections	Short Circuit/Over Current Protections	Short Circuit/Over Current Protections	Short Circuit/Over Current/Over Heat Protections
USB Charge IN	Yes	Yes	Yes	No
USB OUT	5V 1.5A	5V 1A	No	5V 2.5A X2
Regulated OUT	Three Regulated Outputs 3.3V 1A；5V 1.5V；9V/12V 0.5A	One Regulated Output 5V 1A	One Regulated Output 3.3V 90mA	Two Outputs 5V 5A; 12V 8A
Dimensions	78.0mm×68.0mm	33.0mm×63.0mm	30.0mm×30.0mm	68.0mm×68.0mm
Features	A complete multifunction solar power management module. Applications: Small Solar Street Lamp, Solar Powered Robots For 9V/12V/18V Solar Panels within 20W	A small and easy-to-use 5V solar power management module. Applications: Solar Power Bank, Solar Environment Monitors For 5V Solar Panels within 10W	A micro power solar power management module for low-power sensors and controllers. Applications: Wireless Sensor Network, BLE iBecon For 1V/2V/3V Solar Panels within 0.5W	Medium power solar management module for 12V lead-acid batteries. Applications: Street lighting, intelligent agriculture, environmental monitoring station For 18V Solar Panels within 100W
