Lithium Battery Charger & Step-Up – Type-C

Κωδικός:

39-00011870

ΚατασκευαστήςOem

Διαθέσιμο

Αποστολή σε 24 ώρες

€1²⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

100+

Τιμή

€0.96

€0.84

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

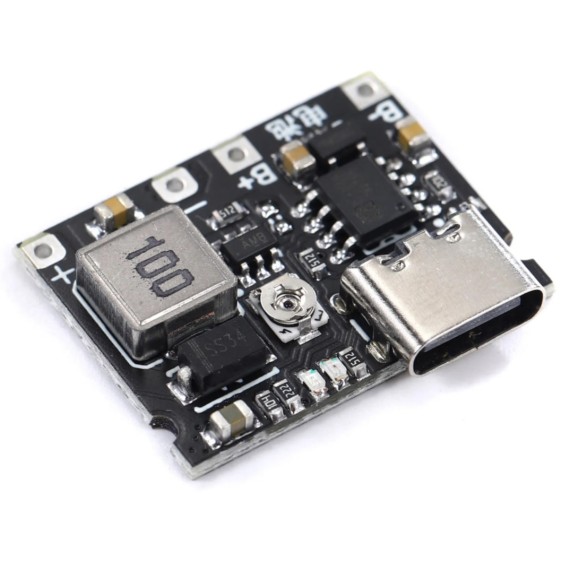

This is a versatile and efficient charging and step-up module designed for 3.7V lithium batteries, such as 18650 or polymer batteries. This charger board features a DC-DC step-up boost capability, adjustable output voltage, and comprehensive protection features, making it suitable for various DIY and electronic projects requiring reliable battery charging and power boosting.

Features

Soft start limits surge current
Battery reverse connection protection
Low power standby mode
Supports input via a Type-C interface or solder joints marked on the back (recommended voltage: 5V)

Technical data

Working Temperature: -40°C to 80°C
Input Voltage Range: 4.2V-6.5V
Output Voltage: Adjustable 4.2V-28V
Maximum Power: 5W
Charging Phases:
- 0V activation
- 2.9V trickle charging
Programmable Charging Current: Up to 1A linear charging
Battery Compatibility: Single-cell 3.7V lithium battery (max charge voltage of 4.2V)

Charging indicators

Red LED on: Charging in progress
Red LED slightly on: Indicates a specific charging stage depending on the output power
Blue LED on: Fully charged or standby mode
