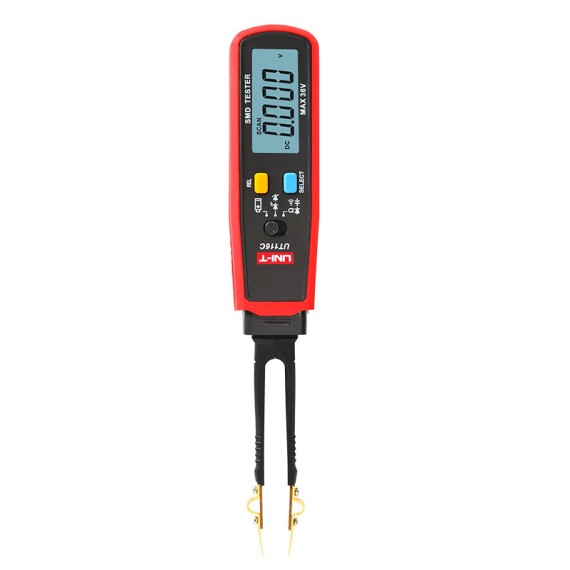

Digital Multimeter for SMD UNI-T UT116C

by UNI-T
The UT116C tester is a SMD brazed electronic component testing device. On a 4-digit display with 6000 range it is possible to display voltage up to 36V,...
24-00077486
Company: UNI-T
Part Number: UT116C
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
24.80
Without VAT 20.00
+
WISHLIST COMPARE

DESCRIPTION

The UT116C tester is a SMD brazed electronic component testing device. On a 4-digit display with 6000 range it is possible to display voltage up to 36V, resistance up to 60MΩ, capacity up to 100mF. It is also possible to test the diodes and the Zener as well as test the continuity of the circuits with resistance signaling less than 50Ω.

  • Voltage measurement up to 36 V DC
  • Measurement of resistance, continuity of circuit, capacitance, diodes
  • The pen can be rotated 180 ° from the tips, which is convenient for reading data from the display when measuring diodes / LEDs
  • Zener polarity test
  • Low battery test
  • Automatic shutdown when idle after 15 minutes

SPECIFICATIONS

Meter Type:
  • Digital Multimeter
Measurement:
  • DC voltage
  • Capacitance
Measuring instrument features: :
  • Auto Power-OFF
  • Diode test
  • Low battery Indicator
  • autoranging
Type of display used:
LCD (6000), with a backlit
Continuity test:
Yes, Buzzer
Overall dimensions (W x D x H):
204 x 33 x 25mm
Weight with battery:
80gr
Power supply:
Battery AA x2, (not included)
Standard equipment:
  • User's manual

SPECIFICATIONS

  • Resistance: 60MΩ
  • Capacitance: 100mF
  • Diode test: 3.2V
  • LED/stabilivolt: About 21V/1mA
  • Continuity Test: <50Ω
  • Battery test: Load current ≈ 10mA
