Digital Multimeter UT139S - UNI-T

by UNI-T
UT139S is a new professional multimeter with true RMS specification and CAT III 600V protection designed for the needs of electricians, with a black EBTN...
24-00077477
Warranty: 2 Year Manufacturer Warranty
Company: UNI-T
Part Number: UT139S
Made in: China
Out of Stock
Product out of stock
No stock in retail store
69.90
Without VAT 56.37

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

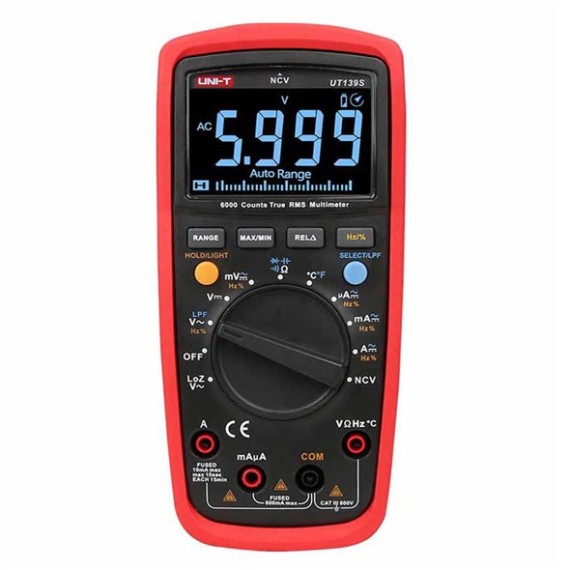

UT139S is a new professional multimeter with true RMS specification and CAT III 600V protection designed for the needs of electricians, with a black EBTN display. The device meets cETLus certification and includes a number of extra features such as low impedance voltage (LoZ), non-contact Voltage Measurement (NCV), capacitance measurement for capacitors, or temperature Measurement. The 31-segment analog line ensures a better display of the measured values ​​and improved visual representation. The measuring range can be selected automatically or manually. The package includes measuring cables with tips, a thermal probe with a K-cell, and a battery.

UT139S is an ideal choice if you want a professionally equipped multimeter with a number of extra features that is also accurate, safe, easy to read and use.

SPECIFICATIONS

Meter Type:
  • Digital Multimeter
Measurement:
  • AC current
  • AC voltage
  • DC current
  • DC voltage
  • Resistance
  • Capacitance
  • Frequency
  • Temperature
Measuring instrument features: :
  • HOLD function
  • Auto Power-OFF
  • Diode test
  • Low battery Indicator
  • auto and manual ranging
  • buzzer
  • MIN/MAX/REL function
Type of display used:
LCD (6000), with a backlit
DC voltage measuring range:
60mV/600mV/6V/60V/600V
DC voltage measuring accuracy:
±(0,5% + 2 digits)
AC voltage measuring range:
60mV/600mV/6V/60V/600V
AC voltage measuring accuracy:
±(0,8% + 3 digits)
True effective value measurement:
True RMS
DC current measuring range:
0,1µ...600µ/6000µ/60m/600m/6/10A
DC current measuring accuracy:
±(0,7%+2 digits)
AC current measuring range:
0,1µ...600µ/6000µ/60m/600m/6/10A
AC current measuring accuracy:
±(1% + 3 digits)
Resistance measuring range:
0,1...600/6k/60k/600k/6M/60MΩ
Resistance measuring accuracy:
±(0,8% + 2 digits)
Capacitance measuring range:
9.999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
Capacitance measuring accuracy:
±(4% + 5 digits)
Frequency measuring range:
10...10MHz
Frequency measuring accuracy:
±(0,1% + 4 digits)
Temperature measuring range:
-40 - 1000 °C
Temperature measurement accuracy:
±(1% + 4 digits)
Diode test:
Yes
Continuity test:
Yes, Buzzer
Overall dimensions (W x D x H):
170 x 80 x 48mm
Weight with battery:
354gr
Power supply:
Battery AA x2
Standard equipment:
  • Test Leads
  • Temperature probe

FEATURES

  • True RMS
  • NCV
  • Auto/manual ranges selectable
  • 31-segment analog bar graph
  • Diode, duty ratio and continuity buzzer
  • Black EBTN screen
