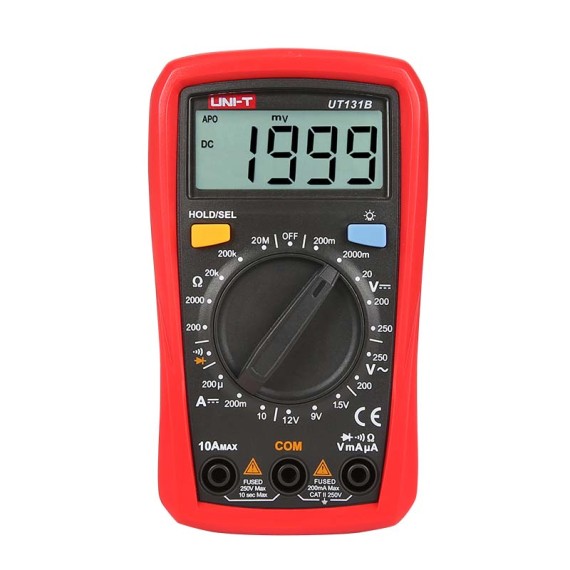

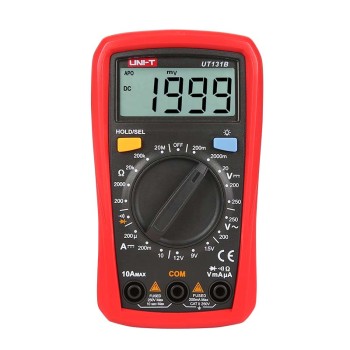

Digital Multimeter UNI-T UT131B

by UNI-T
The new generation UT131 series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these...
24-00077473
Gross Weight: 0.32kg
Company: UNI-T
Made in: China
In Stock
Ships in 24 Hours
No stock in retail store
11.90
Without VAT 9.60
+
WISHLIST COMPARE

DESCRIPTION

The new generation UT131 series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 meters drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 250V environment.

SPECIFICATIONS

Meter Type:
  • Digital Multimeter
Measurement:
  • AC current
  • AC voltage
  • DC current
  • DC voltage
  • Resistance
Type of display used:
LCD (1999), with a backlit
DC voltage measuring range:
200mV/2000mV/20V/200V/250V
DC voltage measuring accuracy:
±(0,5% + 3 digits)
AC voltage measuring range:
200V/250V
AC voltage measuring accuracy:
±(1,2% + 3 digits)
DC current measuring accuracy:
200μA/200mA/10A
AC current measuring accuracy:
±(1% + 2 digits)
Resistance measuring range:
0,1Ω...200Ω/2kΩ/20kΩ/200kΩ/20MΩ
Resistance measuring accuracy:
±(0,8% + 2 digits)
Overall dimensions (W x D x H):
134 × 77 × 47mm
Weight with battery:
206gr
Power supply:
Battery AAA x2 (not included)

SPECIFICATIONS

DC voltage 200mV/2000mV/20V/200V/250V ±(0.5%+3)
AC voltage 200V/250V ±(1.2%+3)
DC current 200μA/200mA/10A ±(1.0%+2)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/20MΩ ±(0.8%+2)
Features
Max display   1999
Range selection   Manual
Drop test   2m
Diode test
Battery test 1.5V/9V/12V
Continuity buzzer
Overload alarm
Data hold
Low battery indication
Auto backlight off
Auto power off
General Characteristics
Power AAA 1.5V×2
Standard accessories English manual, test leads, protective case
Product weight 206g (battery included)
Product size 134×77×47mm

FEATURES

  • Clear LCD display
  • Equipped with comfortable protective cover, test probe holder
  • 2 meters drop test, precision protection
  • Auto power off
  • Auto backlight off
  • Loud buzzer sound
  • Knobs shift smoothly, in line with ergonomics

Το κιτ περιέχει

  • English manual
  • Test leads
  • Protective case
