Display Module 1.8" 160x128 for BBC micro:bit

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors. Tired of the 5x5...
31-00014718
Volumetric weight: 0.03kgs
Company: Waveshare
Made in: China
Out of Stock
Product out of stock
No stock in retail store
17.90
Without VAT 14.44

We (GRobotronics) will add your email address to a special mailing list for this product. Once the product is in stock, you’ll get an email about it automatically, and your email address will be removed from the product’s mailing list.

The data will be visible to some members of our staff. If you’d like to have your personal data removed, send an email to dpo@grobotronics.com.

If you believe that your personal data has been misused, you have the right to lodge a complaint with a supervisory authority. We’re obliged by EU General Data Protection Regulation to let you know about this right; we don’t actually intend to misuse your data.

Add to Cart
WISHLIST COMPARE

DESCRIPTION

This is a colorful display module designed for the BBC micro:bit, 1.8inch diagonal, 160x128 pixels, capable of displaying 65K colors.

Tired of the 5x5 LED matrix? Time to get a tiny monitor for your micro:bit, this one would be the ideal choice.

SPECIFICATIONS

Oparating Voltage:
3.3VDC
Input Voltage:
3 - 6VDC
Interface:
  • Digital
Type:
LCD/TFT
Display Size:
1.8"
Resolution:
160x128
Aspect Ration:
  • 8:5
Display Color:
Colorful
Touchscreen:
No
Interface:
  • SPI

Notes

EXTRA SPECIFICATIONS

  • Driver: ST7735S
  • Resolution: 160x128
  • Display color: RGB, 65K colors
  • Operating voltage: 3.3V
  • Dimension: 61mm x 51.5mm

FEATURES

  • micro:bit edge connector, directly pluggable
  • Embedded driver ST7735S, supports 65K colors
  • Onboard SRAM 23LC1024, used as display cache, no more out of memory
  • SPI interface, takes up only a few IO pins
  • Backlight adjustment via PWM
  • Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards
  • Comes with development resources (micro:bit graphical demo/python code/user manual, etc.)

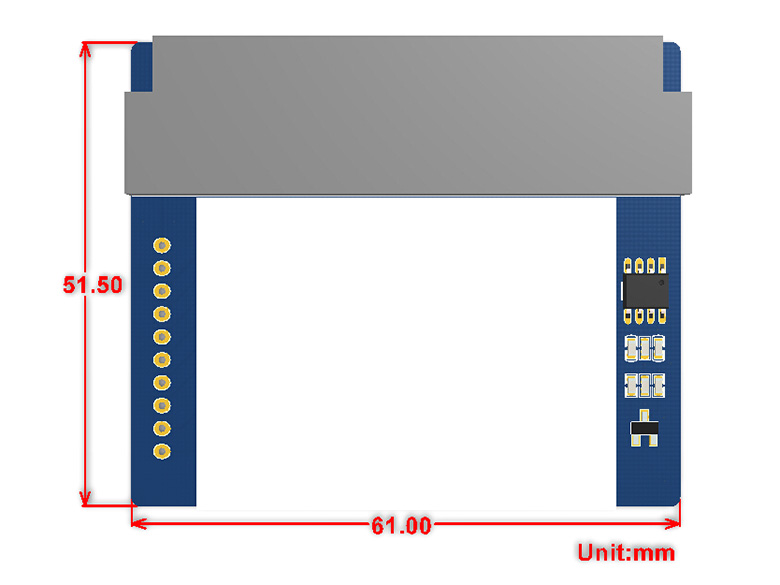

Dimensions

Connection

PIN micro:bit PIN DESCRIPTION
3V3 3V3 Power
GND GND Ground
MISO P14 SPI data master input/slave output
MOSI P15 SPI data master output/slave input
SCK P13 SPI clock input
LCD_CS P16 LCD chip selection
RAM_CS P2 SRAM chip selection
DC P12 LCD data/command
RST P8 LCD reset
BL P1 LCD backlight
