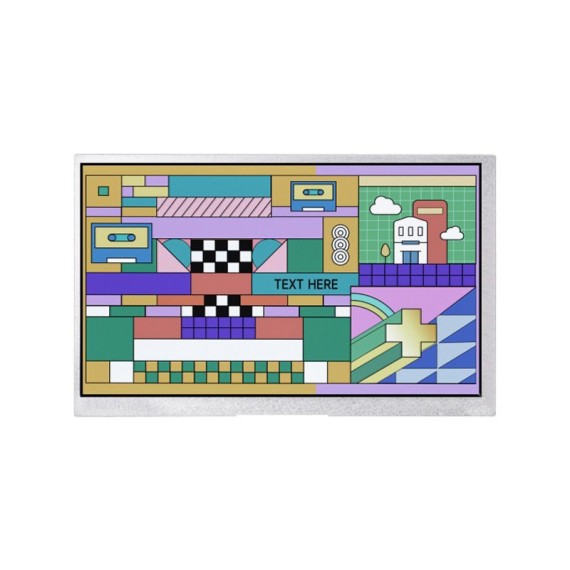

DVI Display Module LCD IPS 10.1" 1024x600 - for RPi Pico

31-00025510
PICO-DVI-10.1inch
ΚατασκευαστήςWAVESHARE Part NumberPICO-DVI-10.1inch
Διαθέσιμο
Αποστολή σε 24 ώρες
4380
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
39.42
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

10.1 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication

Comes with Raspberry Pi Pico C/C++ demo and resources

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Features At A Glance

  • Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle
  • Adopts DVI interface for higher communication speed
  • Based on the Raspberry Pi Pico with onboard 40PIN header
  • Built in OSD menu for brightness/contrast adjustment
  • Available in 7inch and 10.1inch display sizes
  • Suitable for advertisement picture display and other application scenarios
  • Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)
    *Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.

Interface Introduction

Pin Definition



Outline Dimension

Display Size: 222.72×125.28mm
Pixel Size: 0.2175×0.2088mm




Κατασκευαστής
WAVESHARE
Μέγεθος Οθόνης
10.1 "
Ανάλυση
1024x600
Χρώμα
  • Colorful
Διασύνδεση
  • DVI
Τύπος HAT
  • Display
