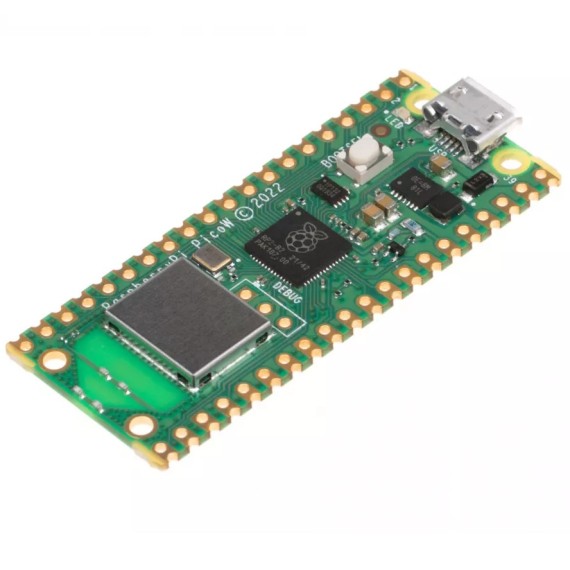

Raspberry Pi Pico W - Wireless

06-00012122
SC0918
CompanyRaspberry Pi Part NumberSC0918
In Stock
Ships in 24 Hours
800
Gropbotronics Store Availability
Availability in Retail Store
Payments & Shipping

Following the hugely popular Raspberry Pi Pico, the new Raspberry Pi Pico W is a wireless-enabled version of the RP2040-based board, adding 2.4GHz 802.11n WiFi connectivity!

The addition of wireless connectivity opens up the Pico W to a vast new range of projects such as remote sensor readings, remote control, home automation, mini web servers, wireless GPIO pin control and much, much more!

At the heart of the Pico W is the RP2040 – the same chip used in the original Raspberry Pi Pico, featuring two ARM Cortex-M0+ cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

WiFi is enabled via the use of an Infineon CYW43439 wireless chip. The CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; however only wireless LAN is software-supported at launch.

With the same footprint and same RP2040 chip, this WiFi Pico can be used as a drop-in replacement for your existing Raspberry Pi Pico projects, upgrading them with WiFi. Just grab a Micro-USB cable, install the latest MicroPython Pico W specific U2F file and start programming!

The Pico W can be quickly and easily programmed using MicroPython and C/C++* using popular editors such as Thonny. Learning how to use the Pico and MicroPython is also very easy thanks to the dedicated Getting Started projects and guide. There's also a guide for connecting to the internet with the Raspberry Pi Pico W

NOTES

  • Only wireless LAN is supported right now.
  • Initially, Wi-Fi connectivity will be supported by MicroPython only. C/C++ support is on the way (timescales not yet known).

RP2040

Designed by Raspberry Pi, RP2040 features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. A wide range of flexible I/O options includes I2C, SPI, and - uniquely - Programmable I/O (PIO). These support endless possible applications for this small and affordable package.

Compliance

Raspberry Pi Pico has undergone extensive compliance testing and meets a number of regional and international standards. View and download relevant certificates and conformity documents.

The main chip on board is the RP2040 made by Raspberry Pi (their first in-house microcontroller chip!) and is a dual-core ARM Cortex M0+ processor, with a flexible clock running up to 133MHz. WiFi is enabled via the use of an Infineon CYW43439.

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of onboard Flash memory
  • Infineon CYW43439 wireless chip
    • IEEE 802.11n wireless LAN
    • Bluetooth 5.2 (not software supported at launch)
    • WPA3
    • SoftAP (up to 4 clients)
    • Onboard antenna licenced from ABRACON (connected via SPI to the RP2040)
  • Castellated module allows soldering directly to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Real-time clock (RTC)
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support
  • Dimensions: 21x51.3x3.9mm
  • Weight: 4g

Warranty
Δεν καλύπτεται με εγγύση απο τον Κατασκευαστή
Company
Raspberry Pi
G. Weight
0.002kg
