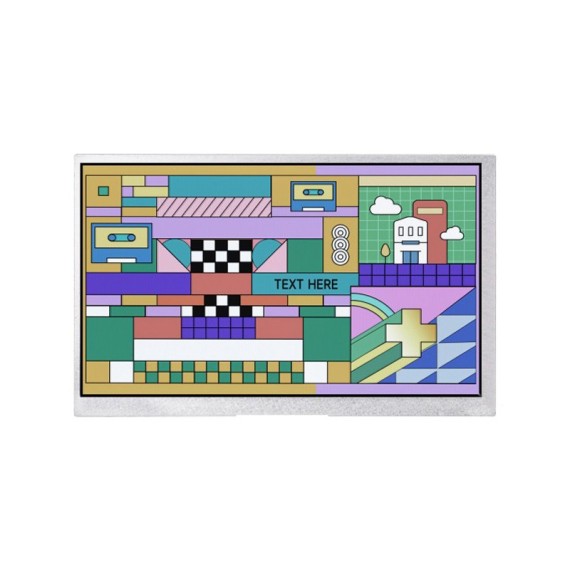

DVI Display Module LCD IPS 7" 1024x600 - for RPi Pico

από WAVESHARE
7 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication, Comes with Raspberry Pi Pico C/C++ demo and resources
31-00025509
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: PICO-DVI-7inch
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
39.90
Χωρίς ΦΠΑ 32.18
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 35.91

ΠΕΡΙΓΡΑΦΗ

7 inch DVI Display Module for Raspberry Pi Pico, IPS panel, 1024×600 Pixel, DVI interface Communication

Comes with Raspberry Pi Pico C/C++ demo and resources

Raspberry Pi Pico Header Compatibility

Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico

Features At A Glance

  • Adopts IPS panel, 1024×600 resolution*, with 170° viewing angle
  • Adopts DVI interface for higher communication speed
  • Based on the Raspberry Pi Pico with onboard 40PIN header
  • Built in OSD menu for brightness/contrast adjustment
  • Available in 7inch and 10.1inch display sizes
  • Suitable for advertisement picture display and other application scenarios
  • Comes with online development resources and manual (examples for Raspberry Pi Pico C/C++)
    *Due to the memory limitation of RP2040, the picture resolution (Max) will be 400×240 if the color format is RGB565.

Interface Introduction

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • Display
Κατασκευαστής
:
WAVESHARE
Part Number:
PICO-DVI-7inch
Μικτό Βάρος:
0.023kg
Τάση Λειτουργίας:
5VDC
Διασύνδεση:
  • Digital
Τύπος:
IPS LCD
Μέγεθος Οθόνης:
7"
Ανάλυση:
1024x600
Χρώματα Οθόνης:
Colorful
Διασύνδεση:
  • DVI

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Pin Definition



ΔΥΝΑΤΟΤΗΤΕΣ

Outline Dimension

Display Size: 154.21×85.92mm
Pixel Size: 0.1506×0.1432mm
