Fermion EC11 Rotary Encoder Module

25-00016300
SEN0235
ΚατασκευαστήςDFRobot Part NumberSEN0235
Διαθέσιμο
Αποστολή σε 24 ώρες
€360
DFRobot
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

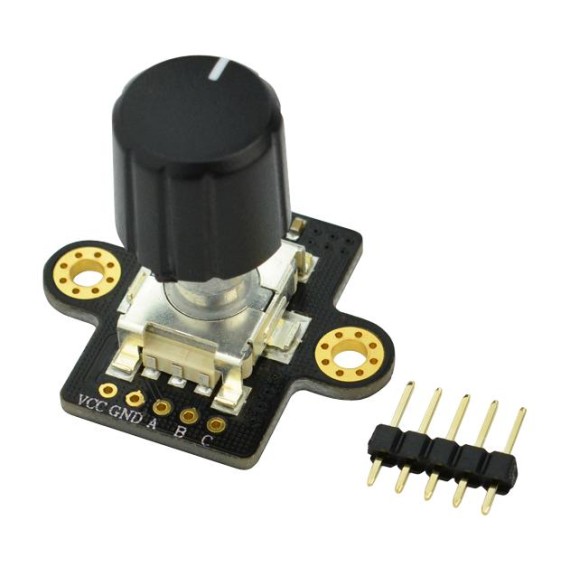

The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are encoder output; terminal C is the button signal output. It is quite suitable for applications such as a volume knob and varying lighting voltage.

The rotary encoder module comes with XH2.54 bonding pad, easy to use in prototyping projects such as automotive electronics, multimedia speakers, instrumentation, smart home and other fields.

  • Operating Voltage: 3.3V ~ 5V
  • Full Rotation Angle: 360 degrees (no stop point)
  • Number of pulse: 20
  • Rotation Life: 30000 ± 200 Cycles
  • Contact Resistance: ≤ 100mΩ
  • Insulation Resistance: 100MΩ or more
  • Oscillation: <10ms Press
  • Working Temperature: -30 ℃ ~ +80 ℃
  • Module Size: 33.8x22.4mm
  • Weight: 14g

Εγγύηση
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
DFRobot
Μικτό Βάρος
0.01kg
