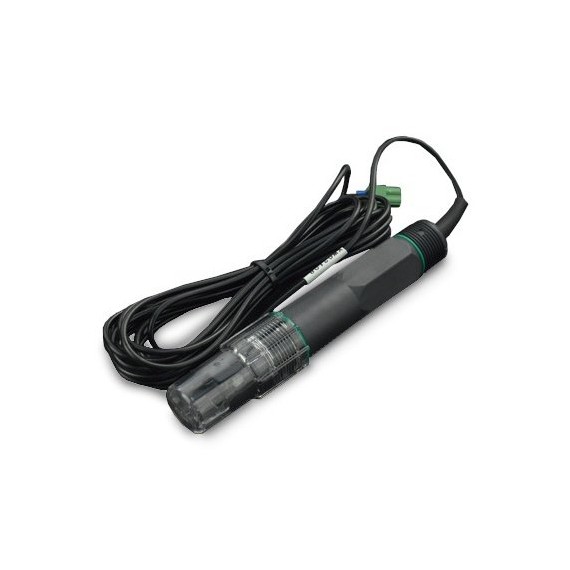

Gravity Analog Industrial ORP Sensor Meter Pro for Arduino

από DFROBOT
As an   upgraded version   of   Industrial Gravity: ORP Sensor Meter for Arduino , this new generation ORP probe employs platinum indicator electrode...
25-00016243
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0464
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
159.90
Χωρίς ΦΠΑ 128.95
+

ΠΕΡΙΓΡΑΦΗ

As an upgraded version of Industrial Gravity: ORP Sensor Meter for Arduino, this new generation ORP probe employs platinum indicator electrode and silver-silver chloride reference electrode, which makes it available for 24-hour online ORP monitoring and greatly enhances product durability.

The new signal converter adds a more stable voltage reference so that the sensor readings would be no longer affected by supply voltage fluctuations. Besides, there are screws, copper columns and waterproof connectors included in the accessory packet to help you conveniently build up ORP monitoring system.

ORP(Oxidation-Reduction Potential) is a measure of the ability of oxidation and reduction of an aqueous solution, which the relative degree of oxidizing or reducing. The unit is mV.

If the oxidation reduction potential is high then chemical oxidation is strong , while if the potential is lower then oxidation is weaker.

The positive potential means that solution shows a certain degree of oxidation, while the negative potential means that solution shows a certain degree of reduction. ORP is an important index of water quality detection, although it can not separate water quality independently, it can be combined with other water quality indexes to reflect the ecological environment better.



ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x Gravity: Analog ORP Signal Converter
  • 1x Industrial ORP Probe
  • 1x Waterproof Aviation Cable Connector
  • 1x Waterproof Cable Gland
  • 1x Nylon Screw
  • 1x Nylon Column

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0464
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • ORP (Oxidation-Reduction Potential)
Τυπική Τάση Εισόδου:
  • 5VDC
Διασύνδεση:
  • Αναλογική

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

ORP Signal Converter

  • Input Voltage: 5V
  • Input Signal: 0.5V ~ 4.5V
  • Input Interface: 5.08mm/0.20" Pluggable Connector
  • Measuring Range: -2000mV ~ +2000mV
  • Output Interface: PH2.0 - 3Pin
  • Module Size: 42x32mm
 Industrial ORP Probe
  • Indicator Electrode: Platinum
  • Reference Electrode: silver-silver chloride
  • Suitable Temperature: 5-70℃
  • Electrode Potential: 245mV ~ 270mV
  • Reference Electrode Internal Resistance: ≤10KΩ
  • Electrode Stability: ±8mV/24h

ΔΥΝΑΤΟΤΗΤΕΣ

24-hour online ORP monitoring

Applications

  • ORP monitoring system
