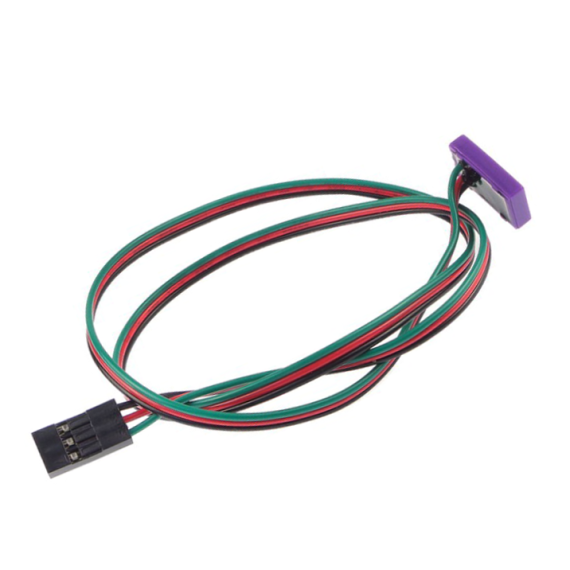

Gravity Capacitive Non-contact Liquid Level Sensor (3mm TR, IP67)

από DFROBOT
This small 5V non-contact liquid level sensor with Gravity Interface is able to detect 0-100°C conductive liquid levels in non-metallic containers in...
25-00016238
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: SEN0485
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χαμηλό απόθεμα στο κατάστημα
Από 12.40
9.92
Χωρίς ΦΠΑ 8.00
Κέρδος: 2.48 (20%)
Σε Προσφορά
+

ΠΕΡΙΓΡΑΦΗ

This small 5V non-contact liquid level sensor with Gravity Interface is able to detect 0-100°C conductive liquid levels in non-metallic containers in sensing range of 3mm. Provided with digital quantity output(low), the sensor can be directly used on Arduino UNO for liquid level detection of the water tank, beverage machine, water pipe, scientific experiment test tube, etc.

 Samll Size Thickness Range: 3mm

With IP67 protection level, the module employs an integrated seamless shell and fully enclosed waterproof glue encapsulation process to block the intrusion of dust and protect internal electric components. Besides, the sensor cable, with great electrical conductivity, is flexible, durable, waterproof, and oil-proof.

Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
SEN0485
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα
Τύπος Αισθητήρα:
  • Στάθμης Υγρών
Τυπική Τάση Εισόδου:
  • 5VDC
Ρεύμα Λειτουργίας:
5mA

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Supply Voltage: 5V
  • Thickness Range: 3mm
  • Applicable Medium: 0-100°C conductive liquid (can only detect non-metallic containers)
  • Output Mode: high/low(low level output)
  • Working Current: <5mA
  • Working Temperature: -5~80°C
  • Storage Temperature: -20~85°C
  • Protection Level: IP67

ΔΥΝΑΤΟΤΗΤΕΣ

  • Gravity interface, easy to connect
  • Small size
  • IP67 protection grade
