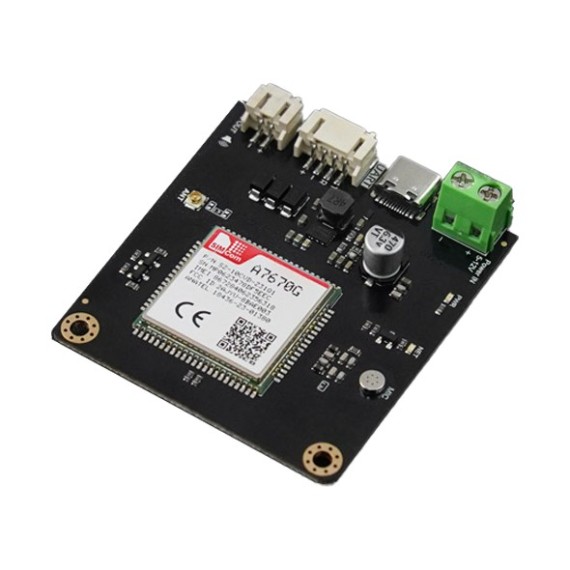

Gravity: CAT1 A7670G Global 4G Communication Module

από DFROBOT
Το A7670G είναι ένα ολοκληρωμένο module ασύρματης επικοινωνίας με 4G CAT1 (με ταχύτητα uplink 5Mbps και ταχύτητα downlink 10Mbps). Υποστηρίζει πολλαπλές συχνότητες, συμπεριλαμβανομένων των LTE-FDD, LTE-TDD και GSM. Η μονάδα είναι συμβατή με Raspberry Pi, Arduino και LattePanda και μπορεί να χρησιμοποιηθεί ως κάρτα δικτύου 4G.
25-00010201
Ογκομετρικό βάρος: 0.06kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: TEL0163
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
59.90
Χωρίς ΦΠΑ 48.31
+

ΠΕΡΙΓΡΑΦΗ

The A7670G is an integrated wireless communication module featuring 4G CAT1 (with an uplink speed of 5Mbps and a downlink speed of 10Mbps). It extensively supports multiple bands, including LTE-FDD, LTE-TDD, and GSM, making it suitable for global regions and most operators' networks. The module is compatible with Raspberry Pi, Arduino, and LattePanda single-board computers, and can be used as a 4G network card.

The specific bands are as follows:

  • LTE-TDD: B38/B39/B40/B41
  • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
  • GSM: 850/900/1800/1900MHz

Additionally, the A7670G module integrates support for various network protocols including TCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS, and more. This allows for complex network communications using AT commands without the need to learn or understand the underlying network protocols, offering strong compatibility and ease of use.

The A7670G communication module comes equipped with both UART and USB interfaces. It can connect to other MCUs or main controllers via UART or to computers, Raspberry Pi, etc., as a USB network card through the USB interface. It supports mainstream operating system drivers (Windows, Linux, Android, and other USB drivers).

Furthermore, the A7670G module includes a microphone and audio power amplifier circuit, enabling it not only to function for data transmission but also for making calls and sending text messages.

The CAT1 SIM7600G 4G Communication Module can be connected to single-board computers like Raspberry Pi, LattePanda, etc., and can be used as a 4G network card for SBCs.

The SIM series wireless communication modules offer multiple products to choose from. This series of 4G products is differentiated by communication rates and satellite positioning capabilities.

Click here to check the selection guide of 4G communication modules.

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
TEL0163
Μικτό Βάρος:
0.063kg

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Power Supply Voltage
    • Terminal connector: 5-12V
    • TYPE-C: 5V
  • UART Interface
    • Voltage level: 3.3V-5V
    • Physical interface: PH2.0-4P Gravity sequence standard
  • Audio Output Interface: PH2.0-2P
  • Frequency Band Applicable Regions: Global
  • Supported Bands:
    • LTE-TDD: B38/B39/B40/B41
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
    • GSM: 850/900/1800/1900MHz
  • 4G Communication Rate: CAT1 (Uplink speed 5Mbps, Downlink speed 10Mbps)
  • 4G Antennas: MAIN antenna IPEX male connector ×1
  • Voice Microphone: ×1
  • SIM Card Slot: Push-lock type
  • LED Indicators:
    • Power status: Red
    • Network status: Blue
  • Operating Temperature: -40°C ~ 85°C
  • Product Dimensions: 60mm×52mm

ΔΥΝΑΤΟΤΗΤΕΣ

FEATURES

  • Controlled via AT commands, eliminating the need to learn complex underlying network protocols.
  • Supports multiple frequency bands including LTE-FDD, LTE-TDD, and GSM.
  • SMS functionality supports MT, MO, CB, Text, and PDU modes.
  • Supports various network protocols such as TCP/IP, IPV4, Multi-PDP, FTP, FTPS, HTTP, HTTPS, and DNS.
  • Capable of data communication, voice calls, and SMS functionalities.
  • Provides USB network card functionality.

APPLICATIONS

  • IoT data transmission and remote control.
  • Mobile device monitoring.
  • Logistics and transportation.
  • Warehousing and theft prevention.
  • Surveillance and positioning.

SHIPPING LIST

  • CAT1: A7670G 4G Communication Module x1
  • 4G antenna: x1
  • Triple-cut universal SIM card adapter x1
  • Gravity PH2.0-4P Communication Connection Cable ×1

Connection Diagram of A7670G 4G Module and Arduino UNO
