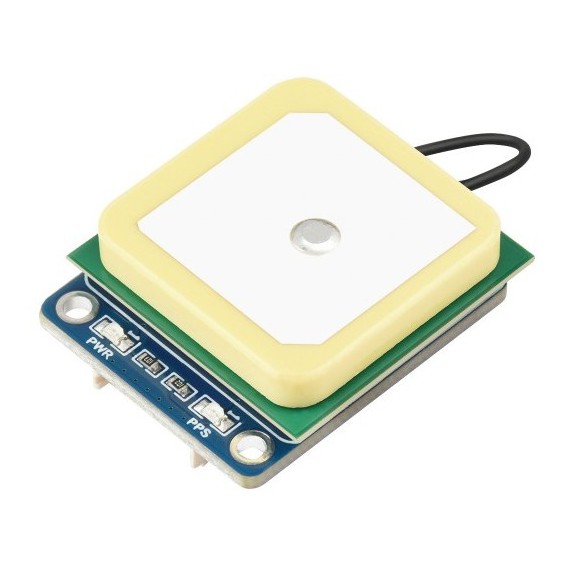

Multi-GNSS Module LC76G - GPS, BDS, GLONASS, Galileo, QZSS

από WAVESHARE
LC76G GNSS Positioning Module Supports GPS, Beidou(BDS), Glonass, Galileo, QZSS I2C/UART Communication, Provides Multi-Platform Resources And...
31-00024370
Ογκομετρικό βάρος: 0.01kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: LC76G GNSS Module
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
18.60
Χωρίς ΦΠΑ 15.00
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 16.74

ΠΕΡΙΓΡΑΦΗ

LC76G GNSS Positioning Module
Supports GPS, Beidou(BDS), Glonass, Galileo, QZSS

I2C/UART Communication, Provides Multi-Platform Resources And Tutorials For Secondary Development And Integration

The LC76G GPS Module is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS, Galileo and QZSS systems, allows multi-system combined or single-system independent positioning. Supports EPO™ (Extended Predictive Orbit) and EASY™ (Embedded Assist System) function, provides a good positioning experience of fast, accurate, high-performance.

  • Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS, Galileo, and QZSS
  • Supports UART and I2C communication
  • Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
  • Supports EPO™ (Extended Predictive Orbit) and EASY™ (Embedded Assist System) function
  • Supports 1PPS
  • UART communication baudrate: 9600~921600bps (115200bps by default)
  • Onboard rechargeable Li battery MS621FE, for preserving ephemeris information and hot starts
  • 2x LEDs for indicating the module working status
  • Comes with online development resources and manual (examples for Raspberry Pi/Raspberry Pi Pico/Jetson Nano/Arduino/ESP32)

Compatible With Multiple Platforms
Provides Raspberry Pi/Raspberry Pi Pico/Jetson Nano/ESP32/Arduino Demos And User Manuals, Easier To Develop And Integrate, And Better Expansibility

Multi-GNSS Positioning Support
Supports GPS, Beidou(BDS), Glonass, Galileo, QZSS

What's On Board

PINOUT DEFINITION
VCC Power supply (3.3V/5V)
GND Gound
TX Connect to MCU.RX (Signal direction: TX >> MCU.RX)
RX Connect to MCU.TX (Signal direction: MCU.TX >> RX)
PPS GPS status indicator
RST Reset Pin
SDA I2C data pin
SCL I2C clock pin



ΣΗΜΕΙΩΣΕΙΣ

  • This product is suitable for outdoor positioning (comes with active GPS ceramic antenna by default), if you need to position indoor, it is recommended to purchase: GPS external antenna (with IPX to SMA Adapter) (antenna is placed to the window area, the module is within 3.5m from the antenna).

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
WAVESHARE
Part Number:
LC76G GNSS Module
Μικτό Βάρος:
0.01kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • GNSS: GPS/GLONASS/Galileo/BDS/QZSS
  • Chip Platform: AG3352
  • L1 Band Receiver:
    • Channels: 47 Tracking ch
    • SBAS: Support
  • A-GNSS: Support
  • Sensitivity:
    • Acquisition: -147dBm
    • Re-Acquisition: -159dBm
    • Tracking: -166dBm
  • TTFF (Time To First Fix):
    • Cold Starts:
      • 26s, Autonomous
      • 12s, With EASY™
      • 5s, With EPO™
    • Warm Starts:
      • 20s, Autonomous
      • 2s, with EASY™
    • Hot Starts: 1s
  • Position Accuracy: 1.5m CEP
  • Speed Accuracy: 0.1m/s
  • Acceleration Accuracy (Max): 0.1m/s²
  • Timing Accuracy: 30ns
  • Update Rate (Max): 10Hz
  • I2C Rate: 400Kbps (Max)
  • UART Baudrate:
    • Range: 9600~921600bps
    • Default: 115200bps
  • GNSS Data Update Rate:
    • Max: 10Hz
    • Default: 1Hz
