Waveshare SIM868 GSM/GPRS/GNSS & Bluetooth Module for Raspberry Pi Pico

31-00020268
Pico-SIM868-GSM/GPRS/GNSS
ΚατασκευαστήςWaveshare Part NumberPico-SIM868-GSM/GPRS/GNSS ΣυμβατότηταRaspberry Pi Pico Τύπος HATGPS, Wireless Communication
Κατόπιν παραγγελίας
Διαθέσιμο σε 45-60 ημέρες
3990
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

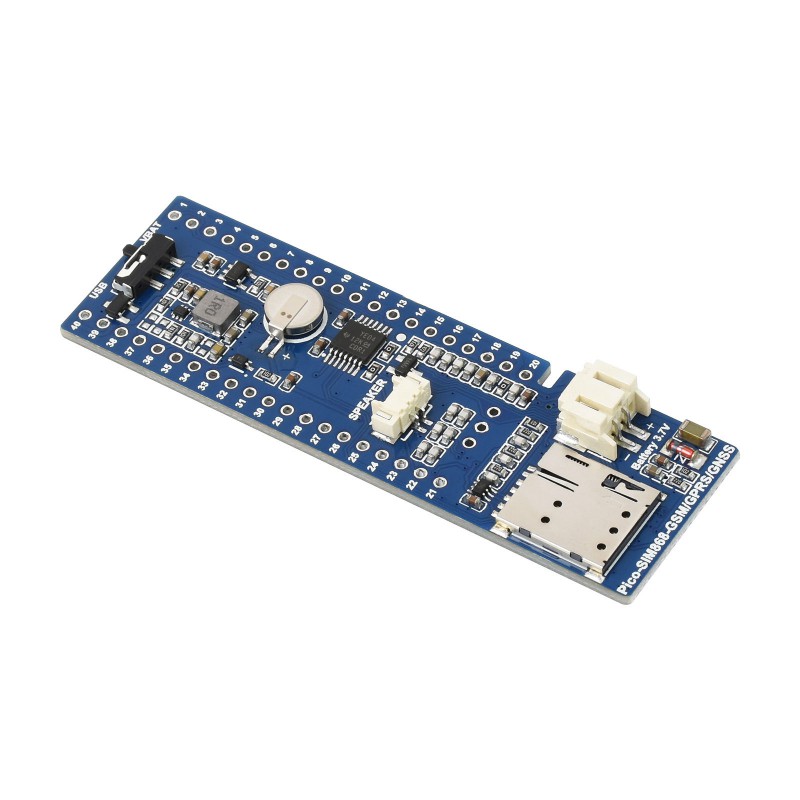

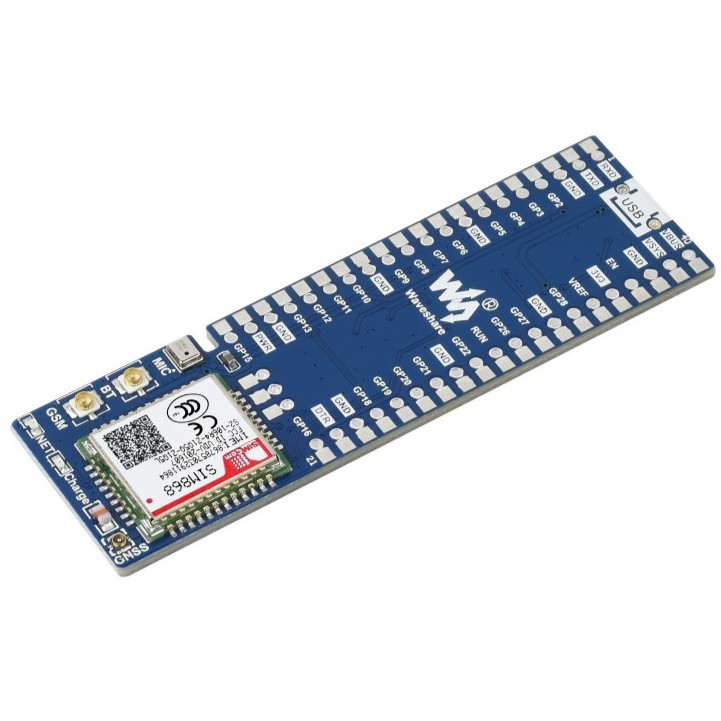

The Pico-SIM868-GSM/GPRS/GNSS is a GSM, GPRS, GNSS, and Bluetooth module designed for Raspberry Pi Pico. This small size and low power module will easily enable your Raspberry Pi Pico multiple functions including making phone call, sending SMS, 2G communication, global positioning, as well as Bluetooth transmission.

Key features
  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • UART communication, serial AT commands control
  • Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
  • Bluetooth 3.0 support, allows Bluetooth data transfer
  • RTC real time clock, with rechargeable Li-po battery
  • Integrates 3.7V Li-po battery connector and recharge circuit, allows being powered from external rechargeable Li-po battery, or recharging it in turn

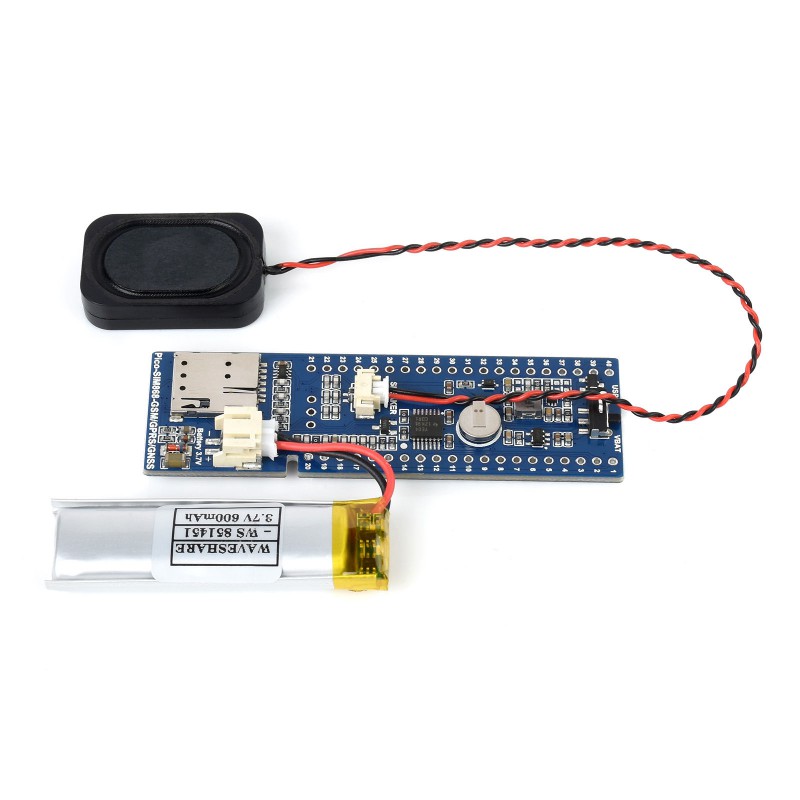

  • Onboard microphone, together with speaker header, can be used to make phone call
  • 2× LED indicators, for monitoring the module operating status
  • Onboard nano SIM card slot, supports 2G SIM card
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

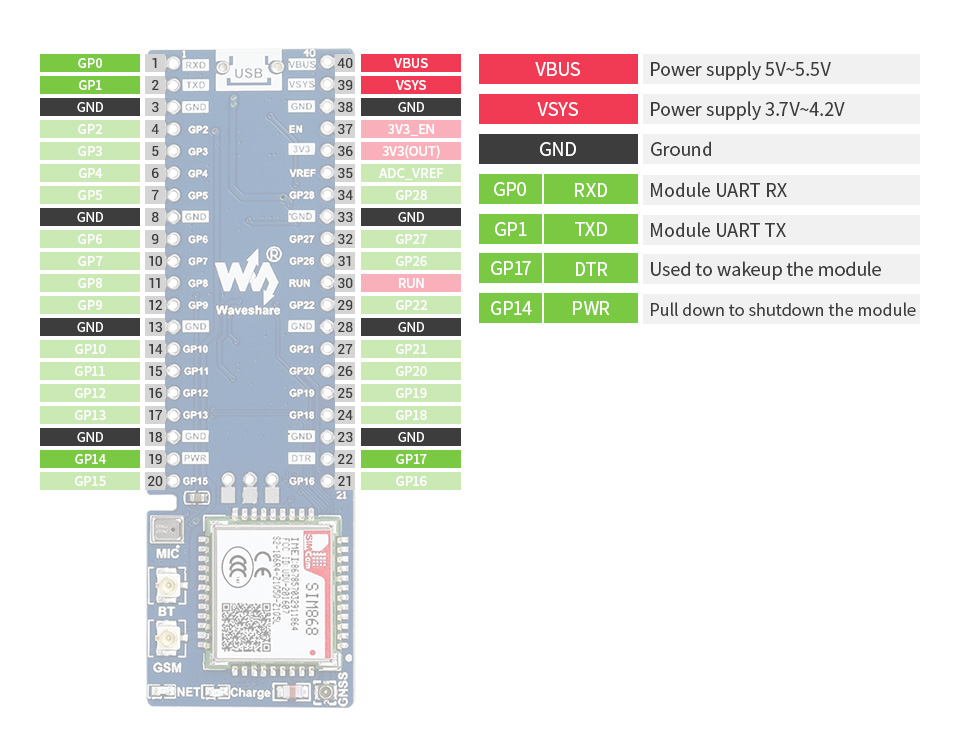

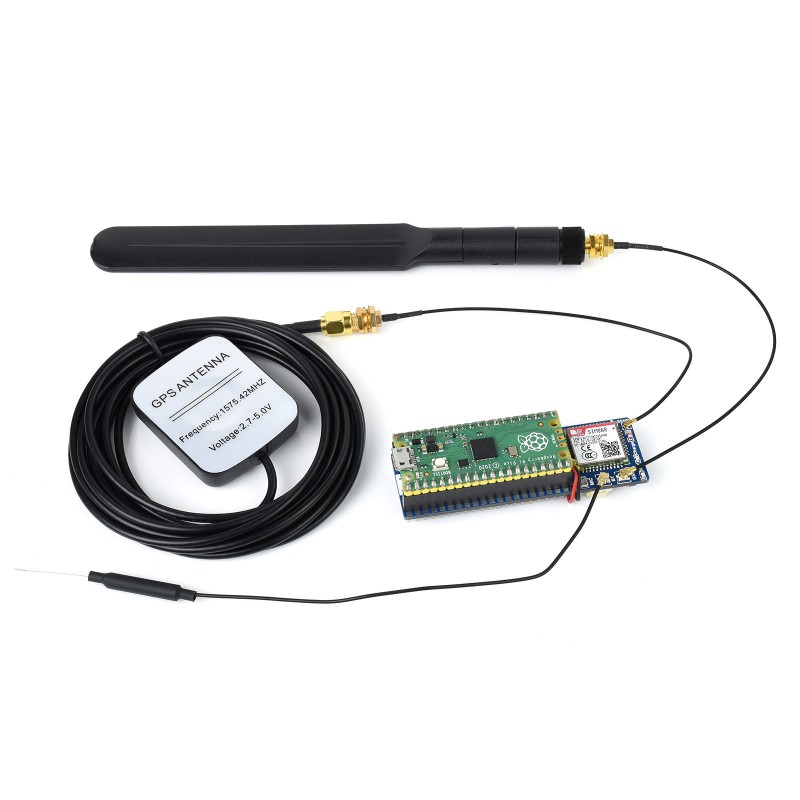

Raspberry Pi Pico header compatibility

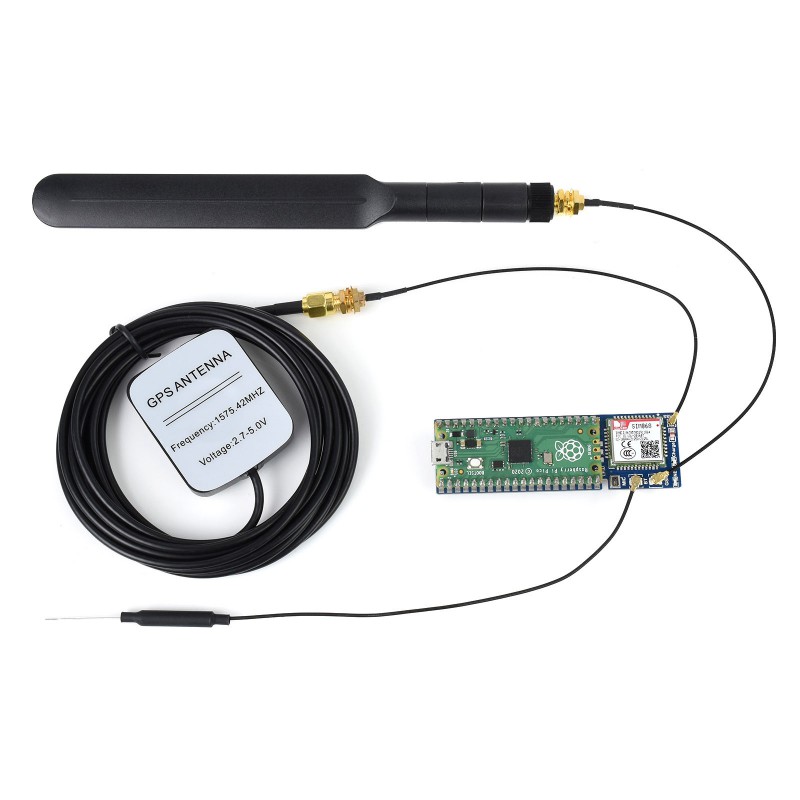

The Pico can be SMD-mounted (left), or attached via female header (right). (Note: Raspberry Pi Pico is not included.)

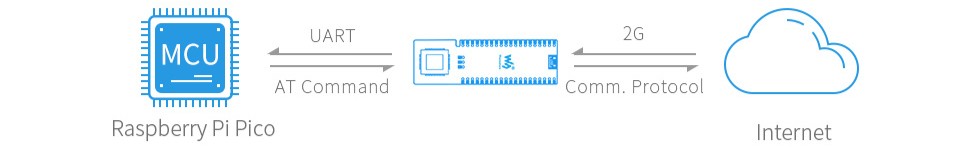

Cloud communication

Supports many communication protocols including: TCP/UDP/HTTP/SSL/FTP/POP3/SMTP/MQTT.

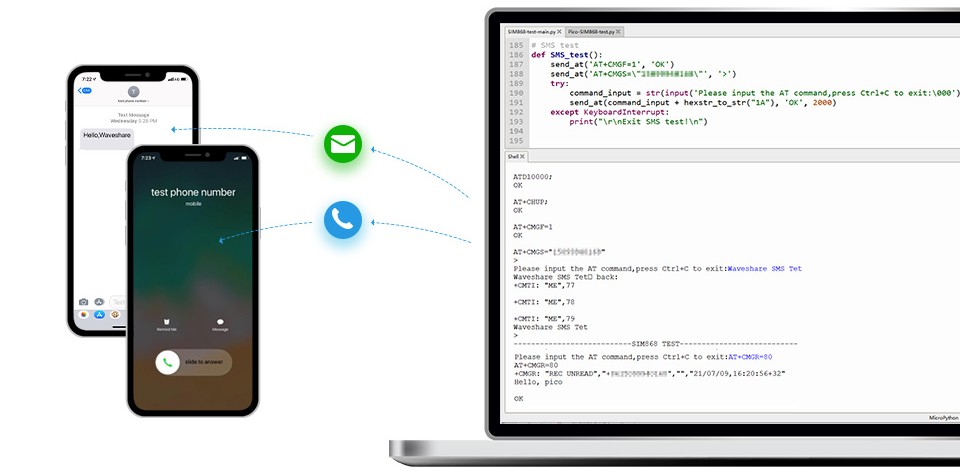

Phone call / SMS / MMS / email support

Onboard microphone, together with speaker header, for making phone call. Supports sending SMS, MMS, and email via AT commands.

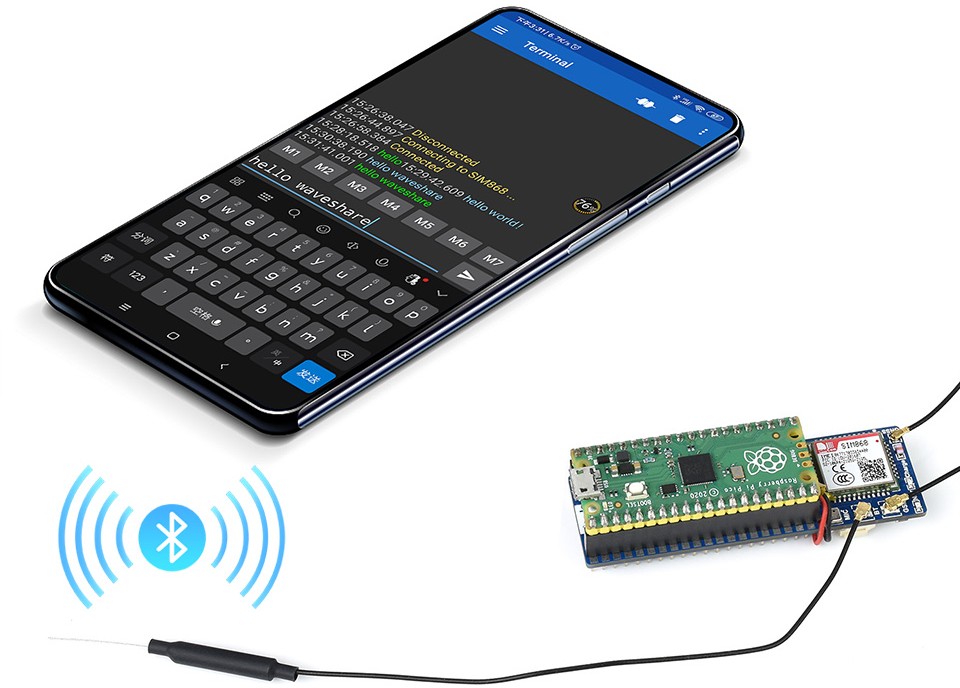

Bluetooth 3.0 and BLE support

Allows Bluetooth wireless communication with Bluetooth 3.0 devices.


Technical data - Comparison table
ModelSIM868 GSM/GPRS/GNSS & Bluetooth ModuleSIM7020E NB-IoT Module
GRobotronics SKU31-0002026831-00019622
Frequency band
NB-IoTN/ALTE-FDD: B1/B3/B5/B8/B20/B28
2GGSM 850/EGSM 900/DCS 1800/PCS 1900 MHzN/A
GNSSGPS, GLONASS, BeiDouN/A
Applicable regionMost countries/regionsAsia, Europe, Africa, Australia
Data rate
NB-IoT(Kbps)-26.15(DL)/62.5(UL)
2G(Kbps)85.6(DL)/85.6(UL)-
Others
Communication protocolTCP/UDP/HTTP/SSL/FTP /POP3/SMTP/MQTT etc.TCP/UDP/HTTP/HTTPS/TLS/DTLS /PING/LWM2M/COAP/MQTT etc.
Power supplyExternal Li-po battery or Raspberry Pi Pico USB port
Battery interface3.7V–4.2V
Logic level3.3V
Module standalone currentIdle mode: 12mAIdle mode: 5.6mA
Sleep mode: 0.65mASleep mode: 0.4mA
Backup mode: 8μAPSM mode: 3.4μA
Audio input/outputMicrophone & speaker headerN/A
IndicatorsNET: network indicator
Charge: recharge indicator
SwitchLi-po battery and USB power supply switchLi-po battery power supply switch
SIM card2G SIM card (1.8V/3V)NB card (1.8V/3V)
Antenna connectorLTE, GNSS, BTLTE

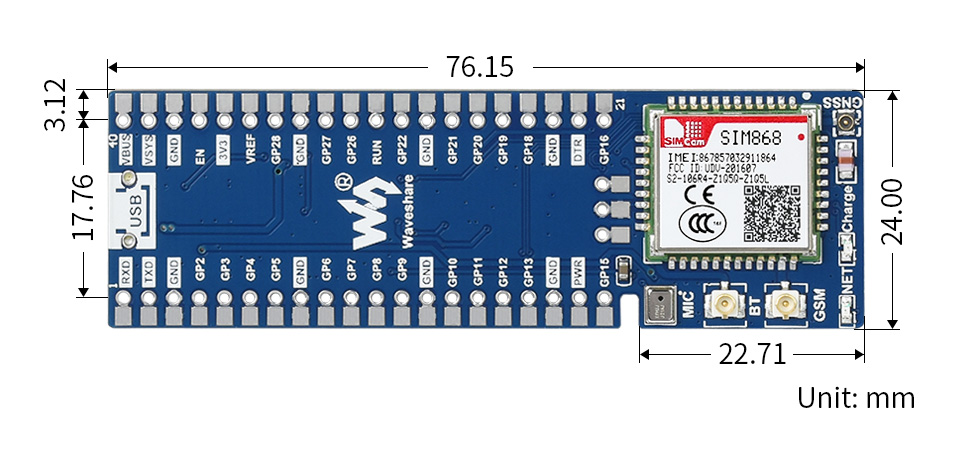

Dimensions76.15×24.00mm73.5×24.00mm

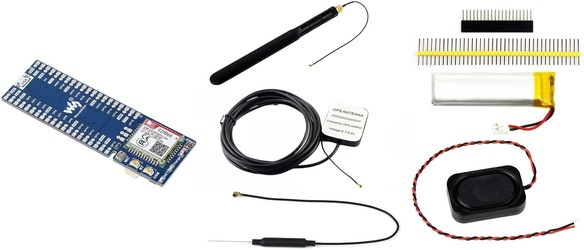

Package contents
  • Pico-SIM868-GSM/GPRS/GNSS ×1
  • LTE antenna ×1
  • GPS antenna ×1
  • Bluetooth antenna ×1
  • 20PIN female pin header ×2
  • 40PIN male pin header ×1
  • 3.7V rechargeable Li-po battery ×1
  • Speaker ×1


Σύνδεση
  • USB
Κατασκευαστής
Waveshare
Part Number
Pico-SIM868-GSM/GPRS/GNSS
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.121kg
Συμβατότητα
  • Raspberry Pi Pico
Τύπος HAT
  • GPS
  • Wireless Communication
