GNSS Hat for Raspberry Pi (GPS, Beidou, Galileo, GLONASS) - MAX-M8Q

από WAVESHARE
GNSS module based on MAX-M8Q for Raspberry Pi accurate & fast positioning with minor drifting, low power consumption, outstanding ability for...
31-00018233
Ογκομετρικό βάρος: 0.16kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: WAVESHARE
Part Number: MAX-M8Q GNSS HAT
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
39.90
Χωρίς ΦΠΑ 32.18
+
Τιμές βάση ποσότητας (Λιανική - Χονδρική):
Ποσότητα 10+
Τιμή 35.91

ΠΕΡΙΓΡΑΦΗ

GNSS module based on MAX-M8Q for Raspberry Pi

accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming

This is a Raspberry Pi GNSS HAT based on MAX-M8Q with multi-constellation receiver support, which means up to 3 types of GNSS satellite systems can be used together, including GPS, Beidou, Galileo, and GLONASS. It also support augment systems like SBAS, QZSS, IMES, and D-GPS. It features accurate & fast positioning with minor drifting, low power consumption, outstanding ability for anti-spoofing & anti-jamming, and so on.

By simply attaching it onto the Pi, it is fairly easy to enable GNSS capability for your Raspberry Pi.



  • Multi-constellation receiver support, concurrent reception of up to 3 types of GNSS satellite systems from GPS, Beidou, Galileo, and GLONASS, and still retains low power consumption
  • Augment systems support, including SBAS, QZSS, IMES, D-GPS, improving the positioning performance of service location
  • A-GNSS (Assisted GNSS) support, reducing the first positioning time when powered up, improving the acquisition sensitivity
  • Features -167dBm navigating sensitivity and outstanding ability for anti-spoofing & anti-jamming, supports geo-fencing
  • Supports U-Center, an easy way to config the module
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Onboard USB TO UART converter CP2102 for serial debugging
  • Breakouts the module's UART and I2C interface, for connecting with host boards like Arduino/STM32
  • Baudrate range: 4800~921600bps (9600bps by default)
  • Supports DDC (I2C compliant) interface: up to 400KHz (max)
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • 4x LEDs for indicating the module operating status
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Τύπος HAT:
  • GPS
Κατασκευαστής
:
WAVESHARE
Part Number:
MAX-M8Q GNSS HAT
Μικτό Βάρος:
0.159kg
Χώρα Προέλευσης:
Κίνα
Συμβατό Raspberry:
  • Model 5
  • Model 4 B
  • Model 3 B+
  • Model 3 B
  • Model 3 A+

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Communication interface: UART (4800~921600bps, 9600bps by default), I2C (max 400KHz)
Update rate: 1Hz (default), 18Hz (max)
Protocol: NMEA 0183 Version 4.0 (V2.1, V2.3 or V4.1 selectable), UBX, RTCM 2.3
Power supply: 5V
Overall current: <40mA@5V (Continue mode)
Module current: 23mA@3V (Continue mode, tracking status)
Operating temperature: -40℃ ~ 85℃
Dimensions: 65mm × 30.5mm

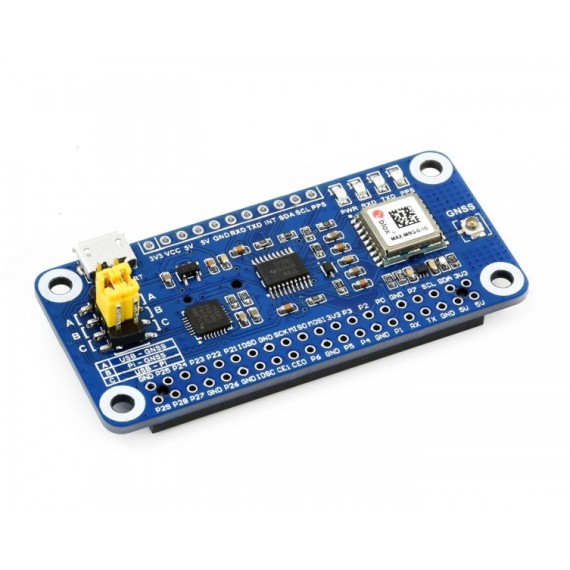

  1. MAX-M8Q module
  2. TXS0108EPWR voltage translator
  3. RT9193-33 power chip
  4. CP2102 USB TO UART converter
  5. Status indicators
    RXD/TXD: UART TX/RX indicator
    PPS: GPS status indicator
    PWR: power indicator
  6. Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  1. Raspberry Pi GPIO header
    for connecting with Raspberry Pi
  2. UART, I2C interface
    for connecting with other MCUs
  3. USB TO UART port
  4. GNSS antenna connector
  5. UART selection jumper
    A: control the MAX-M8Q through USB TO UART
    B: control the MAX-M8Q through Raspberry Pi
    C: access Raspberry Pi through USB TO UART
