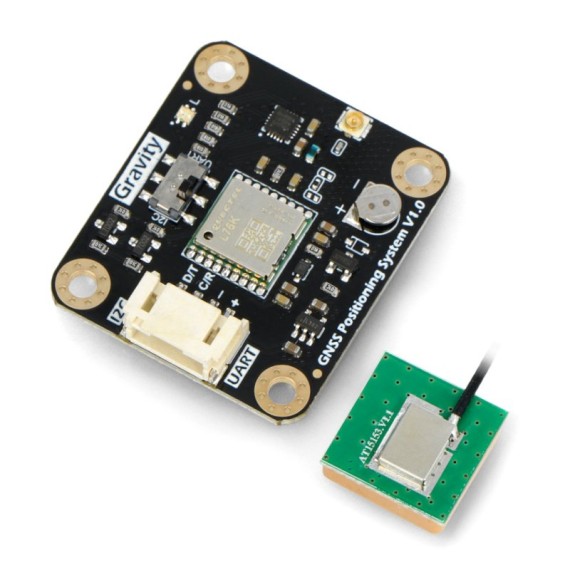

Gravity GNSS GPS BeiDou Receiver Module - I2C&UART

από DFROBOT
Global Navigation Satellite Systems (GNSS) provide critical timing and positioning functions for device operations. This Gravity: GNSS positioning...
25-00016141
Ογκομετρικό βάρος: 0.02kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: DFROBOT
Part Number: TEL0157
Χώρα Προέλευσης: Κίνα
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
22.80
Χωρίς ΦΠΑ 18.39
+

ΠΕΡΙΓΡΑΦΗ

Global Navigation Satellite Systems (GNSS) provide critical timing and positioning functions for device operations.

This Gravity: GNSS positioning module from DFRobot supports BeiDou, GPS, GLONASS and other multi-satellite systems. It is capable of quick delivery of position data like longitude, latitude, altitude and time. Compared with traditional single GPS positioning, the multi-system combination embraces higher precision and faster speed thanks to the increased number of visible and available satellites, which ensures stable and accurate performance even in complex urban environments.

With I2C and UART data outputs, this GNSS positioning module works well with main-controllers like Arduino, ESP32, and Raspberry Pi, which can be widely applied to outdoor positioning scenarios such as vehicle navigation, handheld positioning tracker, item tracking and weather station.

ΤΟ ΠΑΚΕΤΟ ΠΕΡΙΕΧΕΙ

  • 1x Gravity: GNSS Positioning Module
  • 1x GPS/BeiDou Active Ceramic Antenna (IPEX1 Connector)
  • 1x Gravity 4P Sensor Cable
I2C Connection Diagram UART Connection Diagram

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
DFROBOT
Part Number:
TEL0157
Πρωτόκολλο:
  • GNSS
  • GPS
Μικτό Βάρος:
0.02kg
Χώρα Προέλευσης:
Κίνα

ΕΠΙΠΛΕΟΝ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

  • Operating Voltage: 3.3 to 5.5V DC
  • Output Signal: I2C/UART
  • Positioning Accuracy: 2.0m CEP
  • Time for First Positioning: 30s for cold start; 2s for hot start
  • Power Consumption: 40mA
  • Antenna Interface: IPEX1
  • Antenna Frequency: 1561-1575.42MHz±3MHz
  • Dimension: 27x37mm

ΔΥΝΑΤΟΤΗΤΕΣ

  • Supports both single and multiple systems positioning
  • Higher precision and faster speed than traditional single GPS positioning

Applications

  • Vehicle navigation
  • Handheld positioning tracker
  • Item tracking and weather station
