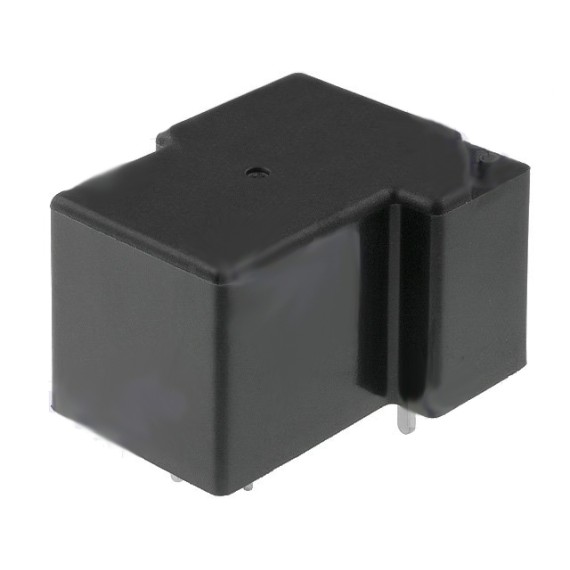

High Power Relay - 30A 5V

05-00010532
Made in: China
In Stock
Ships in 24 Hours
Available in store
1.80
Without VAT 1.45
+
WISHLIST COMPARE

SPECIFICATIONS

Rated Coil Voltage:
5VDC
Contact Current Max. :
30A
Type / Contacts Config.:
  • SPDT

EXTRA SPECIFICATIONS

  • Relay type: Electromagnetic
  • Contacts configuration: SPDT
  • Rated coil voltage: 5V DC
  • Contact current max.: 30A
  • Relay series: L90
  • Relay variant: Sealed, power
  • Operating temperature: -55...85°C
  • Mounting: PCB
  • Coil resistance: 27Ω
  • Switched voltage: max 240V AC, max 30V DC
  • Coil power consumption: 900mW
  • DC contacts rating (at resistance load): 20 A / 30 VDC
  • Contact resistance: 50mΩ
  • Leads for: PCB
  • AC contacts rating (at resistance load): 30 A / 240 VAC
  • Operate time: 15ms
  • Release time: 15ms
  • Mechanical durability: 10000000cycles
  • Contact material: AgCdO
  • Electrical life: 100000cycles
