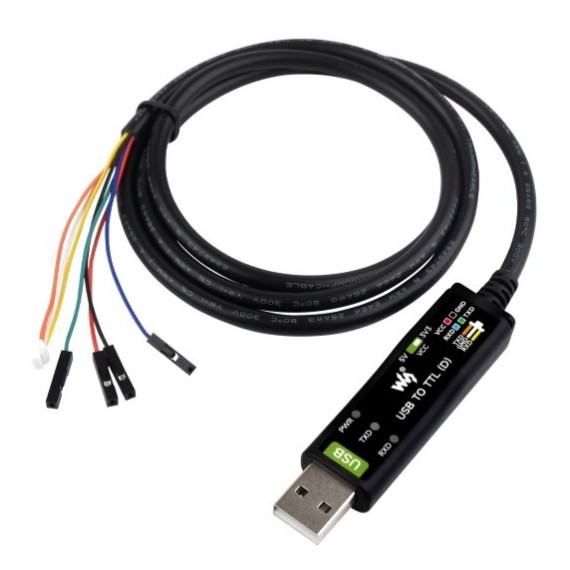

Industrial USB to TTL (D) serial cable is a USB to TTL converter, connecting the USB connector of the PC or other devices to the device with TTL logic level, such as microcontrollers and sensors for data communication. It is compact in size, suitable for serial port debugging of industrial equipment and can be directly connected to the Raspberry Pi 5.

Features

Adopts original FT232RNL chip, with stable high-speed communication, reliability, and better compatibility.
Built-in self-recovery fuse and ESD for over-current/over-voltage protection, counter-current proof, improving shock resistance.
Onboard IO protection, anti-surge design, with stable communication and safety.
Onboard TTL serial port 3.3V/5V level translation circuit, for switching TTL communication level.
Onboard 3 x LED indicator, for checking power and signal transmitting status.
Plastic case, sandblasting process, nice-looking and compact.

Technical data

Product category	Industrial USB to TTL serial cable
Chip scheme	FTDI original FT232RNL
Host port	USB
Data rate	300bps ~ 3Mbps
Device Port	UART
USB port	Connector: USB-A
USB port	Protection: self-recovery fuse, ESD protection
UART port	Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector
UART port	Protection: IO protection diode
Indicator	PWR: power indicator, turns on when there is USB connection and voltage is detected
	TXD: TX indicator, turns on while the USB port is sending data
	RXD: RX indicator, turns on while the device port is sending data back
Cable	Black, PVC sheath, total length 1m

Connect to Pi5 UART debug connector via SH1.0 3PIN cable

Connect to Raspberry Pi 40PIN GPIO UART interface via separated 4PIN header

Pinouts definition

VCC	3.3V or 5V output, configured by switch
GND	Ground
TXD	Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)
RXD	Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)

Selection guide

Product	USB TO TTL (Industrial USB to TTL Converter FT232)	USB TO TTL (B) (Industrial USB to TTL Converter CH343G)	USB TO TTL (C) (Industrial USB to TTL Serial Cable - 6Pin)	USB TO TTL (D) (Industrial USB to TTL Serial Cable - PPi 5 Debugging Port)
GRobotronics SKU	31-00017939	31-00021550	31-00026739	31-00026738
Product Category	Industrial USB TO TTL converter		Industrial USB TO TTL serial cable
Chip	FT232	CH343G	FT232
Data rate	300bps ~ 3Mbps	50bps ~ 6Mbps	300bps ~ 3Mbps
Hardware flow	Supported			Not supported
OS support	Win7/8/8.1/10/11, Mac, Linux, Android
USB port	Connector: USB-A Protection: resettable fuse, ESD protection
UART port	Connector: 8PIN fool-proof header Protection: IO protection diode		Connector: separated 6pin female header Protection: IO protection diode	Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector Protection: IO protection diode
Indicators	PWR: power indicator, turns on when there is USB connection and voltage is detected TXD: TX indicator, turns on while the USB port is sending data RXD: RX indicator, turns on while the device port is sending data back
