Waveshare RP2350-GEEK Board with LCD – USB Debugging

Κωδικός:

31-00029330

Part Number: RP2350-GEEK

ΚατασκευαστήςWaveshare Part NumberRP2350-GEEK

Διαθέσιμο

Αποστολή σε 24 ώρες

€13⁶⁰

Ποσοτικές εκπτώσεις:

Ποσότητα

10+

Τιμή

€12.24

+ −

Κάνε μια ερώτηση

Διαθεσιμότητα Καταστημάτων

Πληρωμή & Μεταφορικά

Περιγραφή
Χαρακτηριστικά

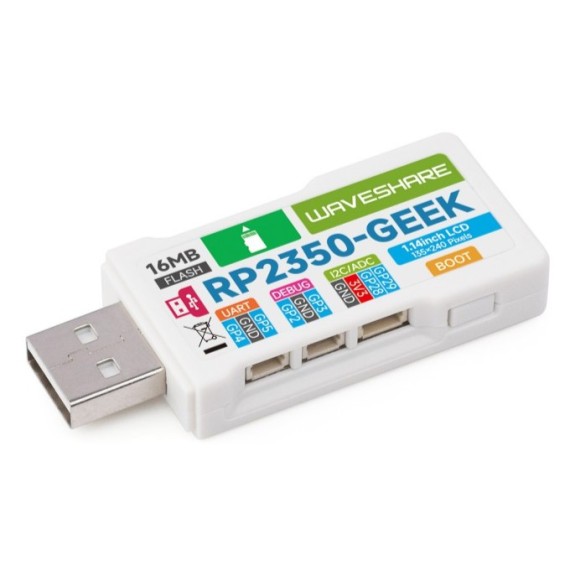

RP2350-GEEK is a development board based on RP2350 microcontroller. It comes with a USB-A port, 1.14-inch LCD screen, TF card slot, and other peripherals. Depending on the firmware used, it can provide SWD interface, UART interface, and I2C interface, offering endless possibilities for your projects.

Key features

Onboard RP2350 microcontroller chip designed by Raspberry Pi
Adopts unique dual-core and dual-architecture design, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, flexible clock running up to 150 MHz
Built-in 520KB of SRAM and 16MB of on-chip Flash
Onboard 1.14inch 240×135 pixels 65K color IPS LCD display
Onboard 3PIN SWD interface for connecting to the target board to be debugged
Standard CMSIS-DAP interface, debugging most 3.3V ARM-based microcontrollers
Works with OpenOCD and other tools supporting CMSIS-DAP
Adopts the Raspberry Pi 3PIN Debug Connector Specification
Onboard 3PIN UART interface for USB serial adapter
Onboard 4PIN I2C port for the testing target board
Equipped with plastic case and cables
Open-source firmware, more convenient to upgrade
