Waveshare USB To UART Module Type-A for Pi 5

31-00026619
Pi UART Debugger
ΚατασκευαστήςWaveshare Part NumberPi UART Debugger
Διαθέσιμο
Αποστολή σε 24 ώρες
490
Ποσοτικές εκπτώσεις:
Ποσότητα
10+
Τιμή
4.41
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

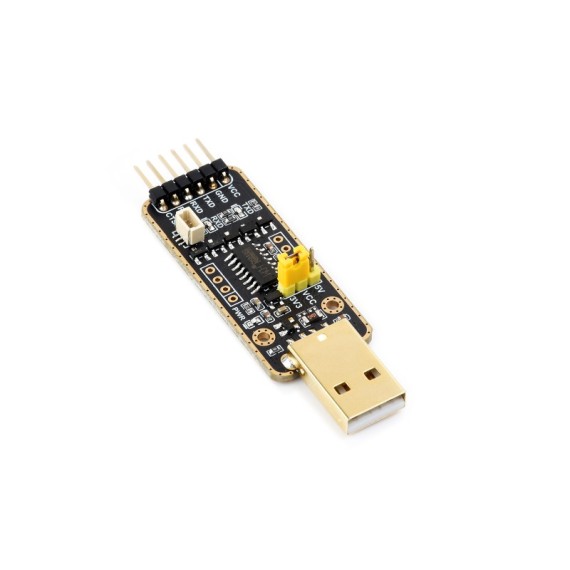

USB To UART Debugger is a serial module based on CH343 for Raspberry Pi 5 with Type-A Port, which is suitable for Raspberry Pi 5 communication debugging, supports multiple wiring methods, and is compatible with various systems.

With features such as anti-surge, ESD protection, and immersion gold design, High Baud Rate Transmission, Multi Connection Methods, Multi System Support it is an excellent choice for you!

Pi5 UART Debugging

Suitable For Raspberry Pi 5, Supports Multiple Connection Methods

Connection examples:

Adopts Double-Sided Black Immersion Gold Process

Highly solderable finish — ideal for applications where reliability and complex circuitry go hand-in-hand

Multiple Protection Circuit, Safe And Stable

Onboard Self-Recovery Fuse And Transient Voltage Suppressor, Prevents Overcurrent And Overvoltage, Improves Shock Proof Performance; Onboard IO Protection Circuit, Anti Surge, Anti-Static, Stable And Safe Communication Performance

Multiple Systems Support

Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...



Features At A Glance

  • Supports Mac, Linux, Android, Windows 7/8/8.1/10/11
  • Onboard self-recovery fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improves shock proof performance, stable and safe communication performance
  • Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance
  • Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level
  • Supports 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly)
  • Adopts double-sided black immersion gold process, which is durable and has a good look

HOST INTERFACE: USB

DEVICE INTERFACE: UART

COMMUNICATION RANGE: 50bps ~ 6Mbps

USB DEVICE INTERFACE:

  • connector: USB Type-A;
  • protection: self-recovery fuse, ESD protection
UART INTERFACE:
  • connector: 6pin right-angle pinheader; 3pin connector
  • protection: IO protection diode

Interface Introduction

INDICATOR DESCRIPTION

  • PWR Power indicator, turns on when voltage is detected from USB interface
  • RXD Receiving indicator, turns on when data is sent back from the device interface
  • TXD Sending indicator, turns on when data is sent from USB

Outline Dimensions



Κατασκευαστής
Waveshare
Part Number
Pi UART Debugger
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.011kg
