Lilygo T-Display-S3 - ESP32-S3 with 1.9"

από LILYGO
T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons....
19-00012292
Ογκομετρικό βάρος: 0kg
Εγγύηση: Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής: LILYGO
Part Number: H569
Διαθέσιμο
Αποστολή σε 24 ώρες
Χωρίς απόθεμα στο φυσικό κατάστημα
29.90
Χωρίς ΦΠΑ 24.11
+

ΠΕΡΙΓΡΑΦΗ

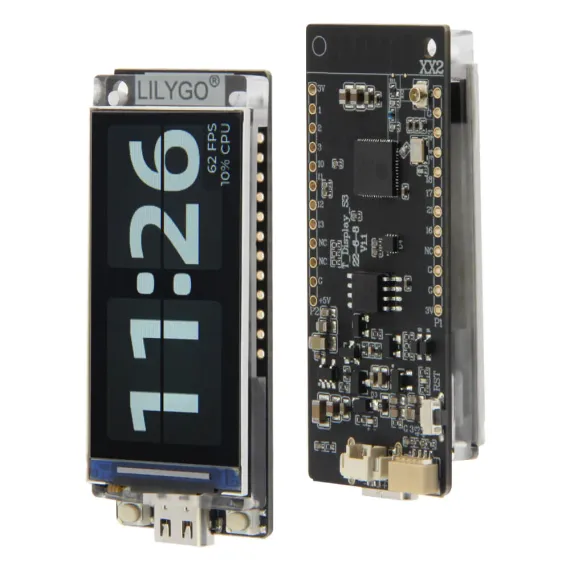

T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.

MCU

ESP32-S3R8 Dual-core LX7 microprocessor

Wireless Connectivity

Wi-Fi 802.11, BLE 5 + BT mesh

Programming Platform

Arduino-ide、 Micropython

Flash

16MB

PSRAM

8MB

Bat voltage detection

IO04

Onboard functions

Boot + Reset + IO14 Button

LCD

1.9" diagonal, Full-color TFT Display

Drive Chip

ST7789V

Resolution

170(H)RGB x320(V) 8-Bit Parallel Interface

Working power supply

3.3v



Sample Code For Reference

If you need technical support please check below link to find more details.

Github: T-Display-S3

ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Εγγύηση:
Ως εξάρτημα, δεν καλύπτεται
Κατασκευαστής
:
LILYGO
Part Number:
H569
Μικτό Βάρος:
0.003kg
