Waveshare ESP32-S3 Touch IPS LCD – 1.46" 412×412

31-00029565
ESP32-S3-Touch-LCD-1.46
ΚατασκευαστήςWaveshare Part NumberESP32-S3-Touch-LCD-1.46
Κατόπιν παραγγελίας
Διαθέσιμο σε 45-60 ημέρες
€2990
Waveshare
+ −
Αγαπημένα
Κάνε μια ερώτηση
Gropbotronics Store Availability
Διαθεσιμότητα Καταστημάτων
Πληρωμή & Μεταφορικά

The ESP32-S3-Touch-LCD-1.46 is a microcontroller development board featuring 2.4GHz Wi-Fi and Bluetooth BLE 5 support. It integrates high-capacity flash and PSRAM, and comes with a 1.46-inch LCD display capable of smoothly running GUI applications such as LVGL. With a variety of onboard peripheral interfaces, this board is well-suited for rapid development of HMI and other ESP32-S3-based applications.

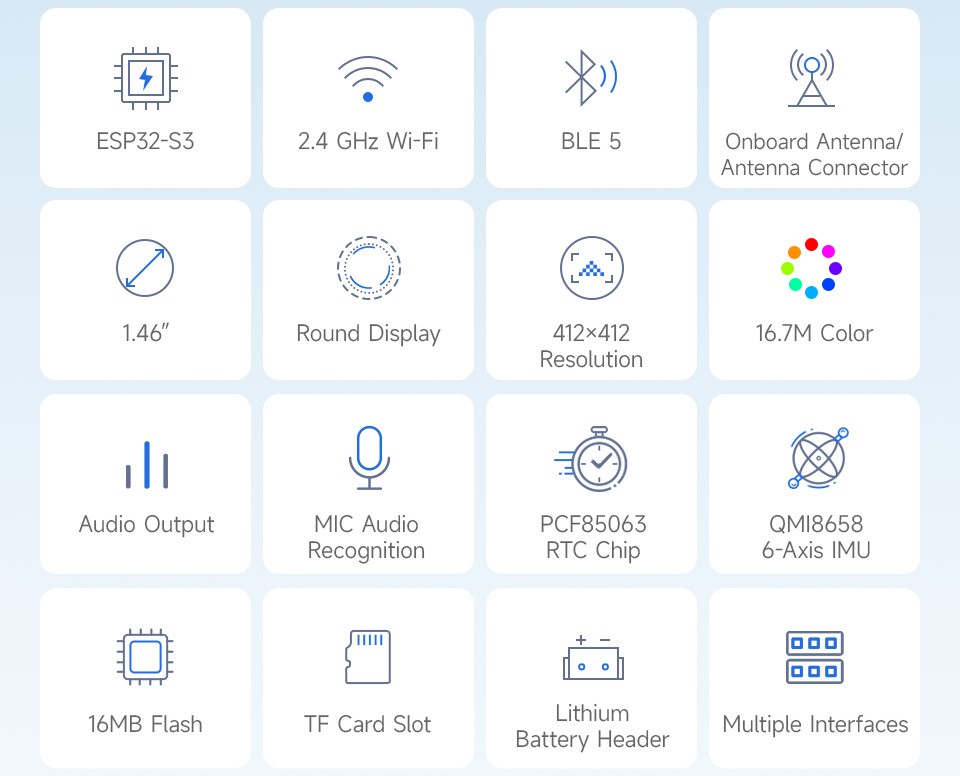

Key features
  • Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
  • Onboard Type-C port, more convenient, better device compatibility
  • Onboard 1.46inch LCD display, 412×412 resolution, 16.7M color
  • Supports touch function controlled via I2C interface, with interrupt support
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
  • Onboard PCF85063 RTC chip with reserved RTC battery header (supports charging) for RTC function requirement
  • Onboard programmable PWM and BOOT buttons for easy custom function development
  • Onboard 3.7V MX1.25 lithium battery recharge/discharge header
  • Onboard TF card slot for extended storage and fast data transfer, flexible for data recording and media playback, simplifying circuit design
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
  • Adapting multiple GPIO pins which can be mapped to various function interfaces, making it convenient for customers to customize and develop

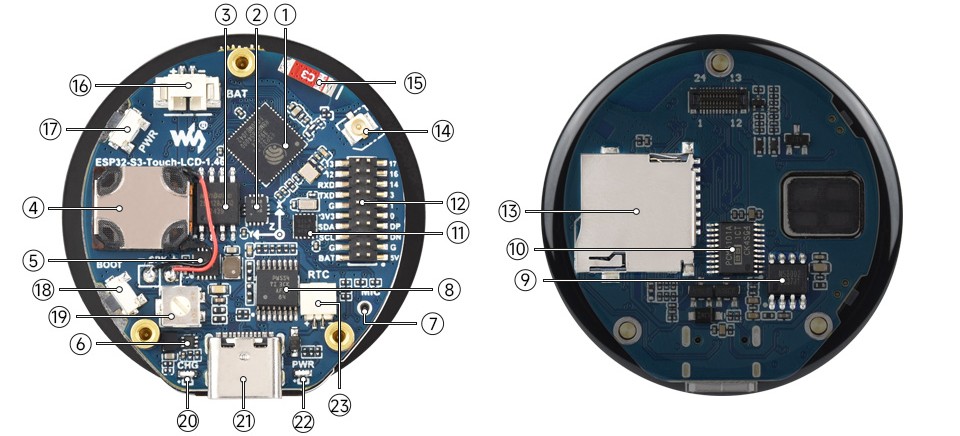

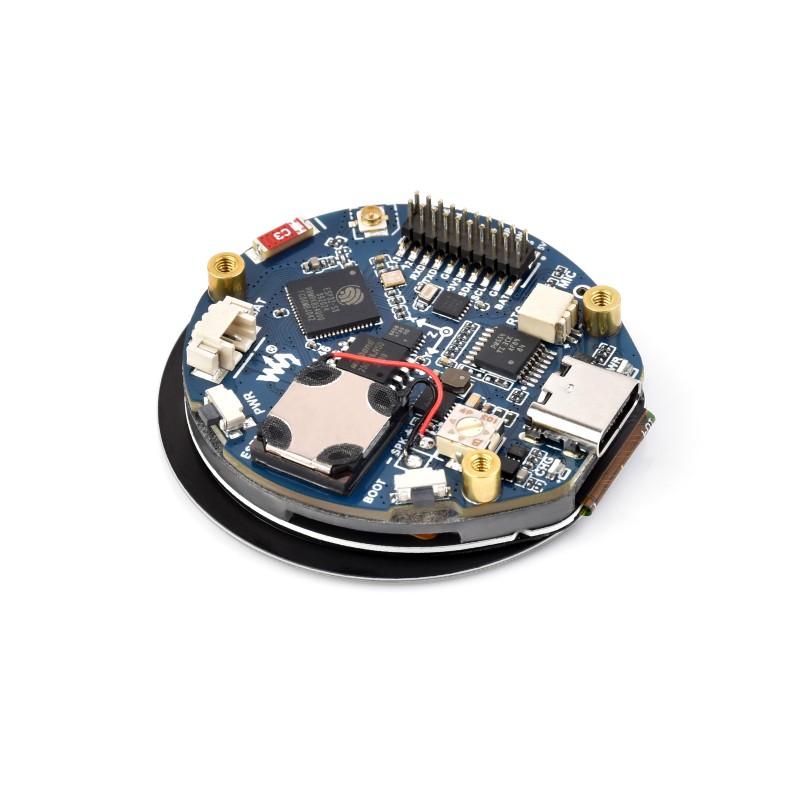

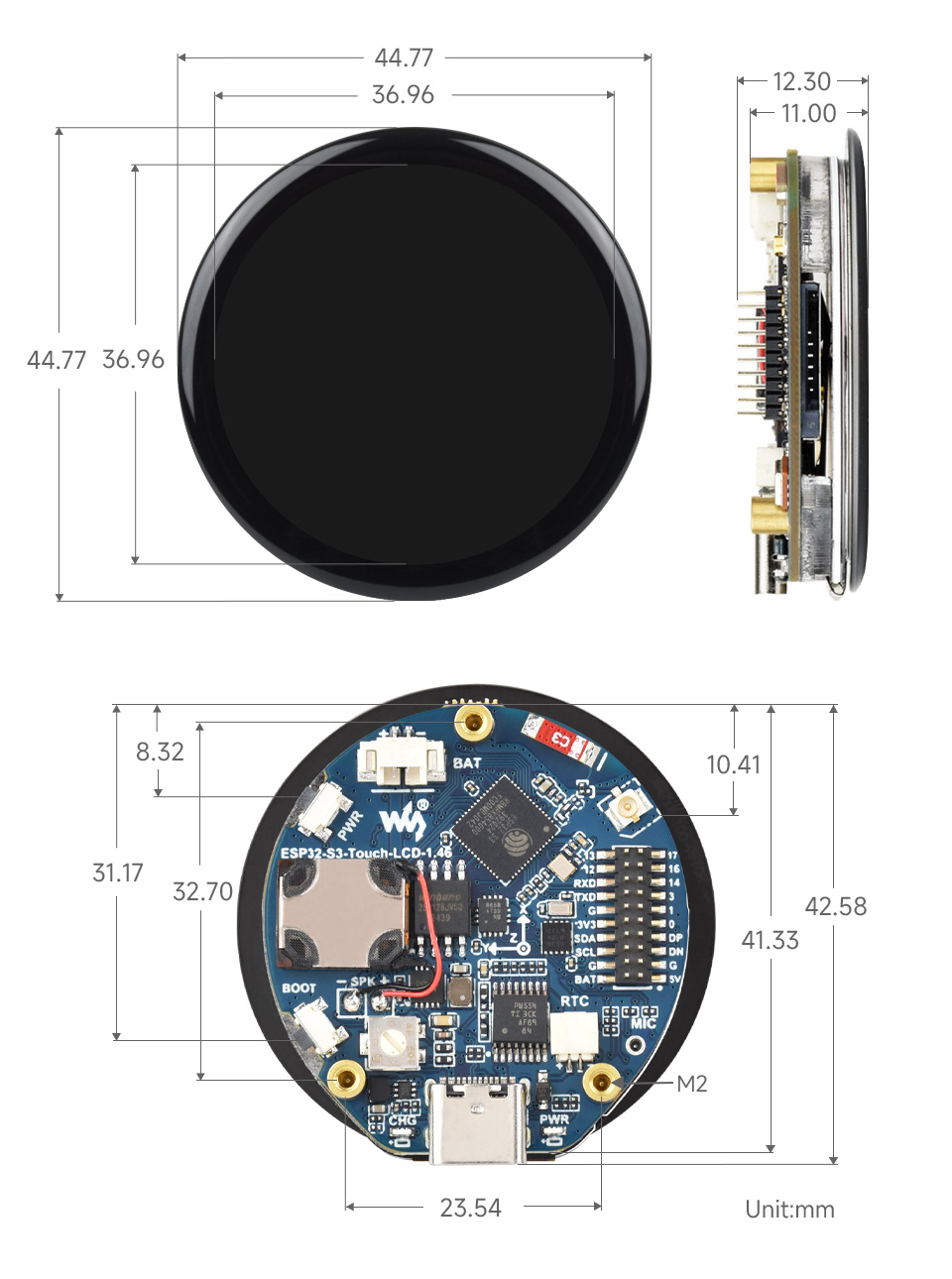

Hardware layout

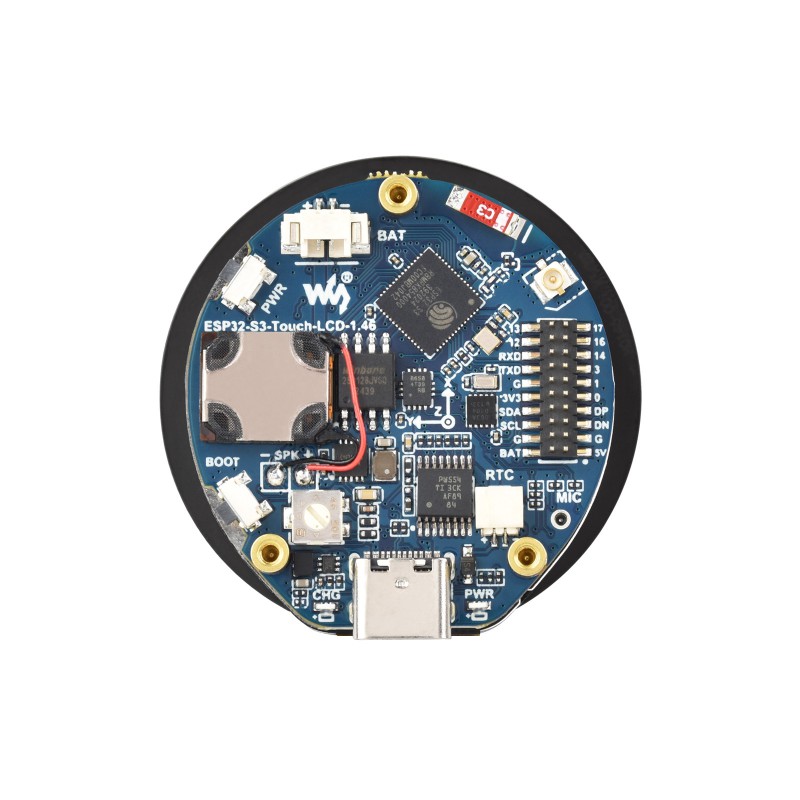

  1. ESP32-S3R8
    dual-core processor, up to 240MHz operating frequency
  2. QST attitude sensor
    QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
  3. 16MB Flash
  4. Speaker
  5. Battery recharge manager
  6. MP1605GTF-Z
    Power supply module, supports 2A (MAX) output
  7. Microphone
  8. TCA9554PWR
    GPIO expander chip
  9. Amplifier chip
  10. PCM5101 audio decoder
  11. RTC chip
    PCF85063 RTC chip

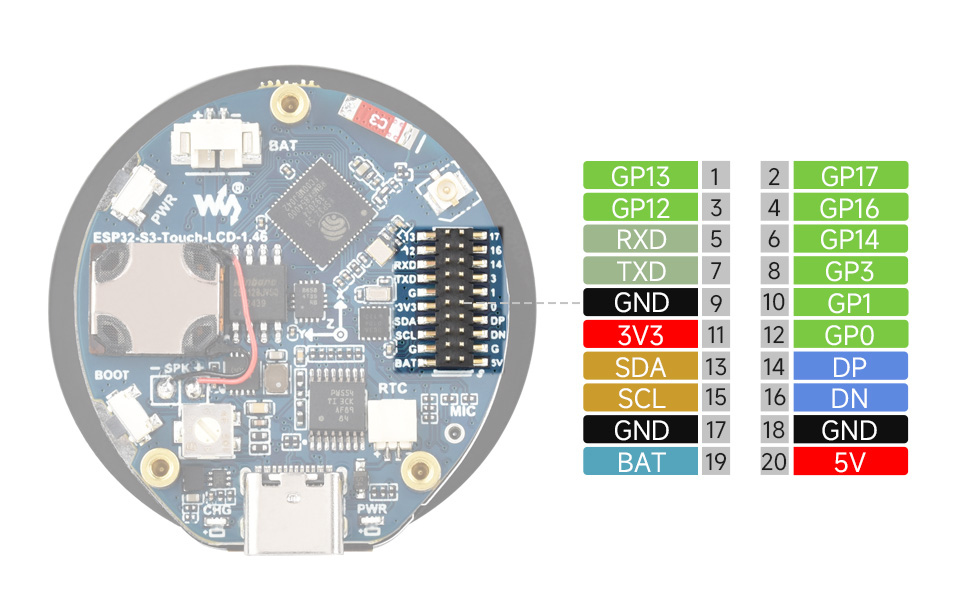

  12. Multi-Function GPIO header
    Multiple GPIOs available
  13. TF card slot
  14. IPEX1 connector
    Switching to use external antenna via resoldering a onboard resistor
  15. Onboard ceramic antenna
  16. MX1.25 battery header
    MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
  17. Battery power supply control button
    driver required
  18. BOOT button
  19. Volume adjustment knob
  20. Charge indicator
    Lithium battery charge indicator, lights up when charging, off when fully charged (the light status is uncertain when the battery is not connected)
  21. USB Type-C port
  22. Power indicator
  23. RTC battery header
    for connecting rechargeable RTC battery



Onboard audio input and output

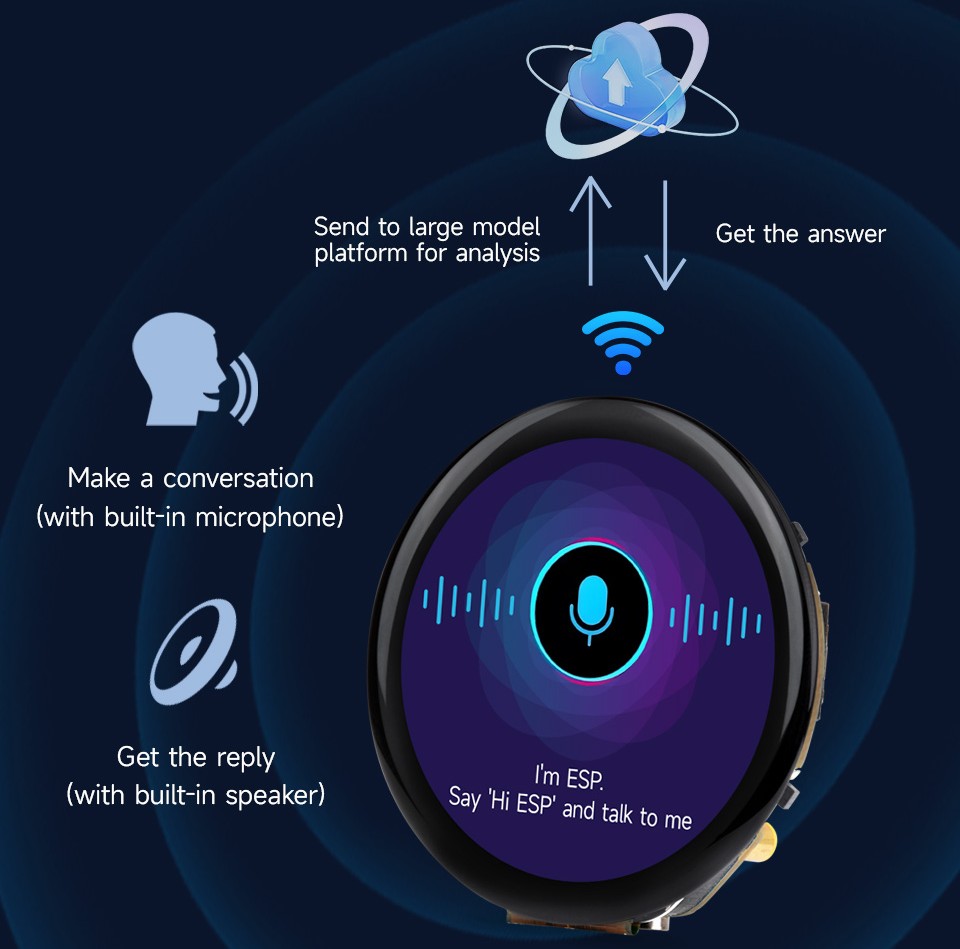

Supports high-quality audio processing, providing clear and high-quality audio input and output. Equipped with an offline voice model, enabling device control via setting shortcut commands.


Supports offline speech recognition and AI speech interaction

Allows access to online large model platforms to support more AI application scenarios.


Package contents
  • ESP32-S3-Touch-LCD-1.46 ×1


ΒΙΝΤΕΟ

ESP32-S3 with 1.46" round display, onboard speaker and microphone.

ESP32-S3 with 1.46" round display, onboard speaker and microphone.
Κατασκευαστής
Waveshare
Part Number
ESP32-S3-Touch-LCD-1.46
Εγγύηση
12 Μήνες Εγγύηση Κατασκευαστή
Καθ. Βάρος
0.037kg
Board Specifications
MCU/SoC
ESP32-S3
Processor
Xtensa dual-core 32-bit LX7
Clock Speed
240 MHz
RAM
512 kB SRAM & 8 MB PSRAM
ROM
384 kB
Flash Memory
16 MB
Bluetooth
Bluetooth 5
Wi-Fi
Wi-Fi 4 – 802.11b/g/n – 2.4 GHz
Extra Features
  • Battery connector
  • Card slot
  • Display
  • Embedded IMU sensor
  • Microphone
  • Speaker/Buzzer
Display Specifications
Ποιότητα Χρωμάτων
16.7M
Μέγεθος Οθόνης
1.46 "
Ανάλυση
412×412
Αναλογία Οθόνης
  • 1:1
Οθόνη Aφής
Capacitive
Βρες Παρόμοια
ESP32-S3 with 1.46" round display, onboard speaker and microphone.

ESP32-S3 with 1.46" round display, onboard speaker and microphone.

  • Προτείνουμε επίσης
