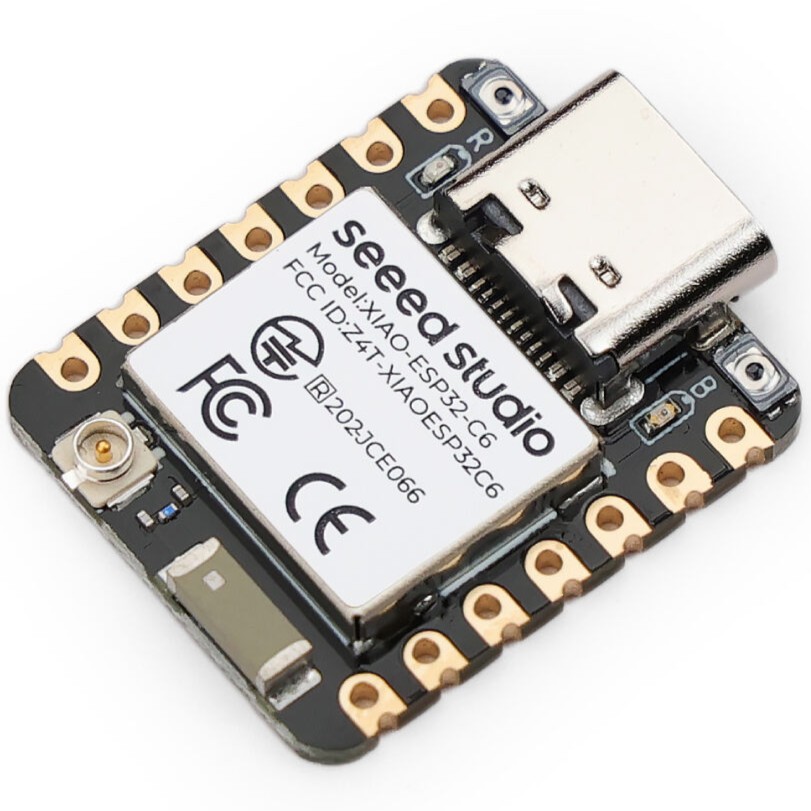

XIAO ESP32C6 is a cost-effective MCU based on Espressif’s ESP32-C6. This compact MCU excels in Matter-compliant smart home applications with its support for various wireless connectivity (2.4GHz Wi-Fi 6, BLE 5, Zigbee, and Thread). Designed with the thumb-size footprint and a single-sided mount of the XIAO Series, it's perfect for space-limited projects. Encrypted on the chip, the XIAO ESP32C6 ensures a desired level of security streamlined development experience, and swift market entry by integrating easily with major IoT Cloud platforms.

Key features
  • Enhanced Connectivity: Combines 2.4GHz Wi-Fi 6 (802.11ax), Bluetooth 5(LE), and IEEE 802.15.4 radio connectivity, allowing you to apply the Thread and Zigbee protocols
  • Matter Native: Supports building Matter-compliant smart home projects thanks to its enhanced connectivity, achieving interoperability
  • Security Encrypted on Chip: Powered by ESP32-C6, it brings enhanced encrypted-on-chip security to your smart home projects via secure boot, encryption, and Trusted Execution Environment (TEE)
  • Outstanding RF Performance: Has an on-board antenna with up to 80m BLE/Wi-Fi range, while reserving an interface for external UFL antenna
  • Leveraging Power Consumption: Comes with 4 working modes, with the lowest being 15 μA in deep sleep mode, while also supporting lithium battery charge management.
  • Dual RISC-V Processors: Incorporates two 32-bit RISC-V processors, with the high-performance processor running up to 160 MHz, and the low-power processor clocking up to 20 MHz
  • Classic XIAO Designs: Remains the classic XIAO designs of the thumb-size form factor of 21×17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
  • Seamless integration with mainstream Cloud Platforms: ESP Rain Maker, AWS IoT, Microsoft Azure, and Google Cloud



Technical data
ProductXIAO ESP32C6
ProcessorEspressif ESP32-C6 SoC
Two 32-bit RISC-V processors with the high-performance one running up to 160 MHz,
and the low-power one clocking up to 20 MHz
WirelessComplete 2.4GHz Wi-Fi 6 subsystem
BLE: Bluetooth 5, Bluetooth mesh
Zigbee,Thread,IEEE 802.15.4
On-chip Memory512KB SRAM & 4MB Flash
Interface1× UART,1× LP_UART, 1× IIC, 1× LP_IIC,
1× SPI,11× GPIO(PWM), 7× ADC, 1× SDIO
1× Reset button, 1× Boot button

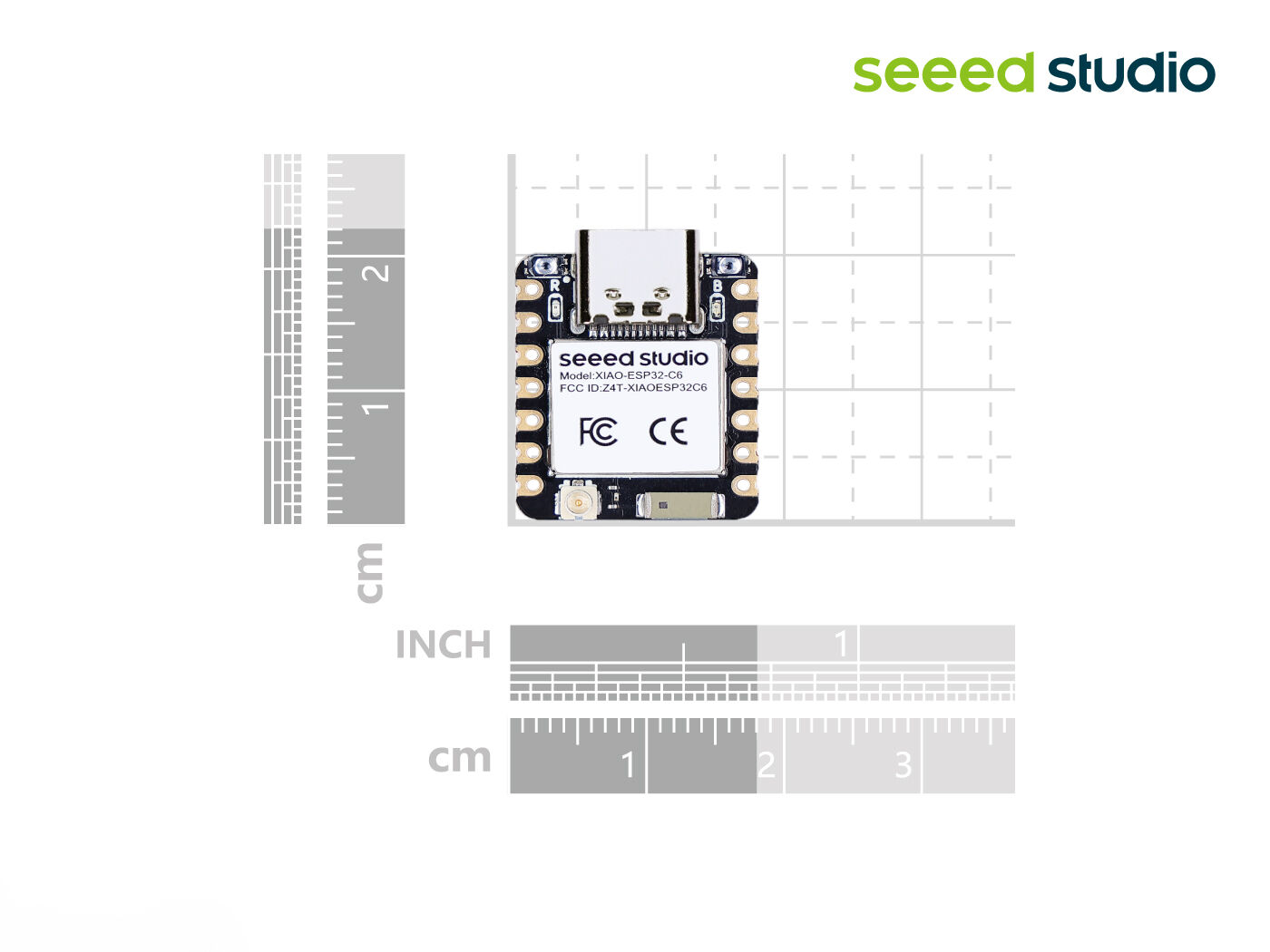

Dimensions21×17.8mm
PowerInput voltage (Type-C): 5V
Input voltage (BAT): 4.2V
Circuit operating Voltage (ready to operate):
USB:5V@9mA
BAT:3.8V@9mA
Charging battery current: 100mA
Power Consumption Model
(Supply Power: 3.8V)
Modem-sleep Model: ~30 mA
Light-sleep Model: ~2.5 mA
Deep Sleep Model: ~15 μA
Working Temperature-40°C – 85°C
Application examples
  • Secure and connected Smart Home, enhancing everyday life through automation, remote control, and more.
  • Space-limited and battery-powered wearables, thanks to their thumb-size and low-power consumption.
  • Wireless IoT scenarios, enabling rapid, reliable data transmission.

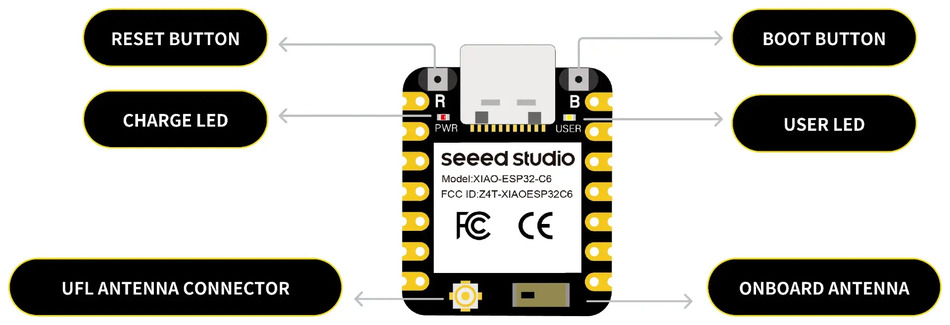

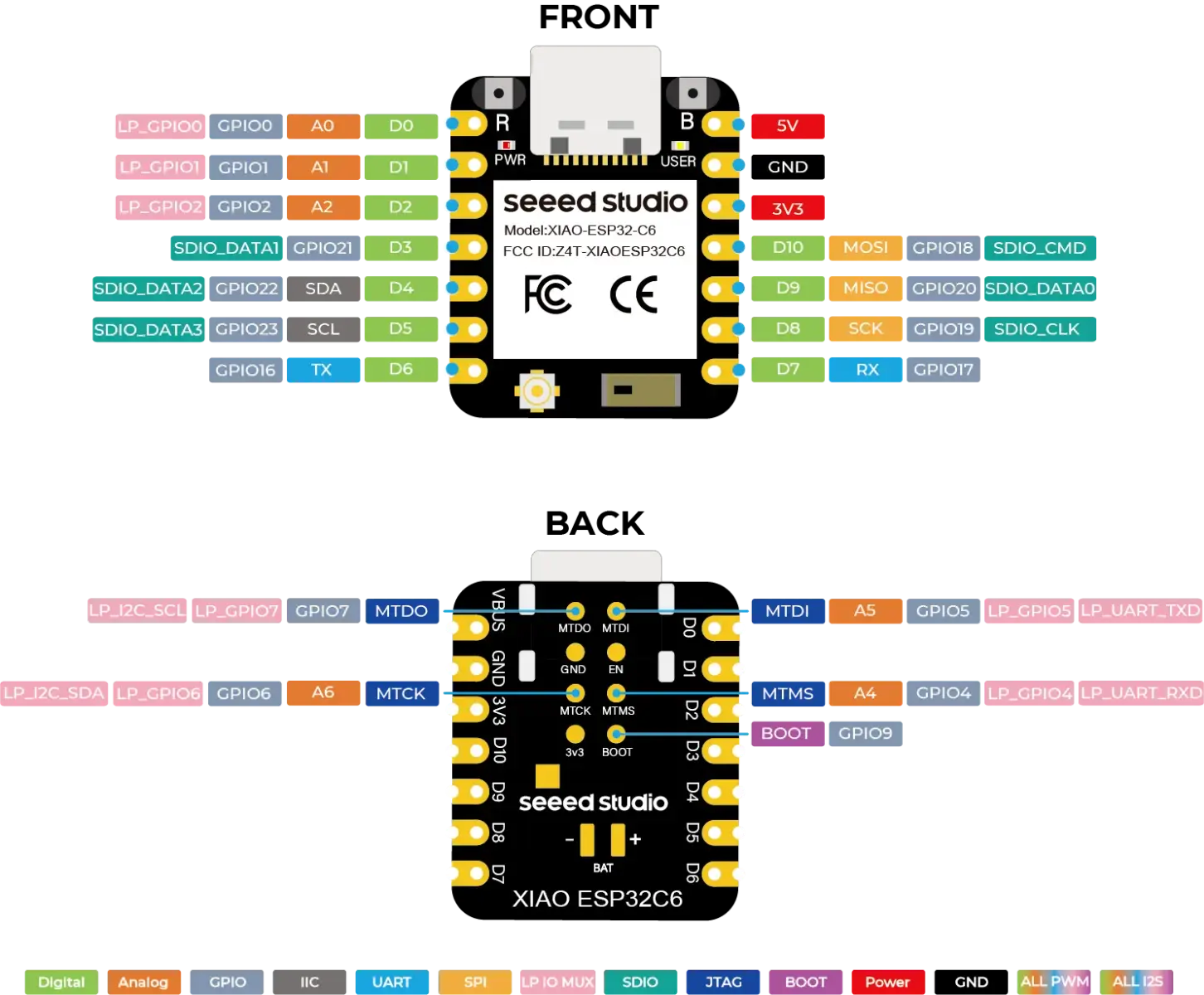

Hardware layout


Package contents
  • Seeed Studio XIAO ESP32C6 ×1
  • 7-pin header ×2

Κατασκευαστής
Seeed Studio
Board Specifications
MCU/SoC
ESP32-C6
Processor
Single-core 32-bit RISC-V
Clock Speed
160 MHz
RAM
512 kB SRAM
ROM
320 kB
Flash Memory
4 MB
Bluetooth
Bluetooth 5
Wi-Fi
Wi-Fi 6 – 802.11b/g/n/ax – 2.4 GHz
Extra Features
  • Thread
  • Zigbee
