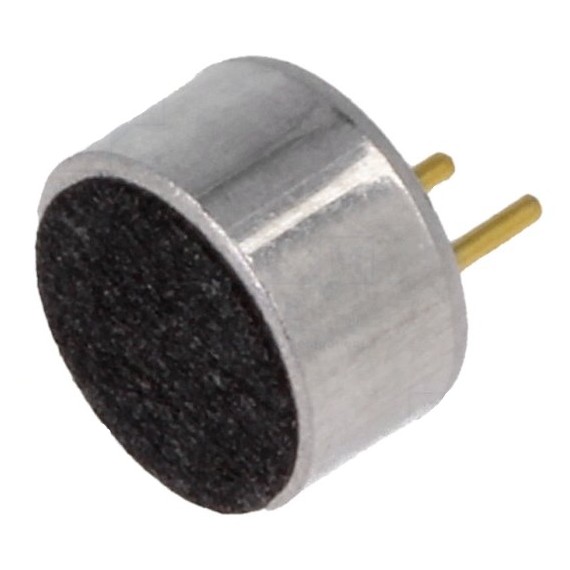

Microphone 2.2Κ PCB - D6mm

by LOUDITY
05-00060359
Gross Weight: 0kg
Company: LOUDITY
Part Number: LD-MC-6035P
Made in: China
In Stock
Ships in 24 Hours
Available in store
0.90
Without VAT 0.73
+
WISHLIST COMPARE

SPECIFICATIONS

Sensor Type:
  • Sound
Typical Input Voltage:
  • 3.3VDC
  • 5VDC
Oparating Current:
0.5mA
Interface:
  • Analog
Communication Protocol:
  • Without

SPECIFICATIONS

  • Type of sound transducer: Microphone
  • Impedance: 2.2kΩ
  • Operating current: 0.5mA
  • Operating voltage: 1...10V
  • Bandwidth: 50...16000Hz
  • Kind of microphone: Electret
  • Microphone sensitivity: -35dB
  • Mounting THT

Διαστάσεις

  • Body: Ø6 x 3.5mm
  • Terminal pitch: 1.9mm
